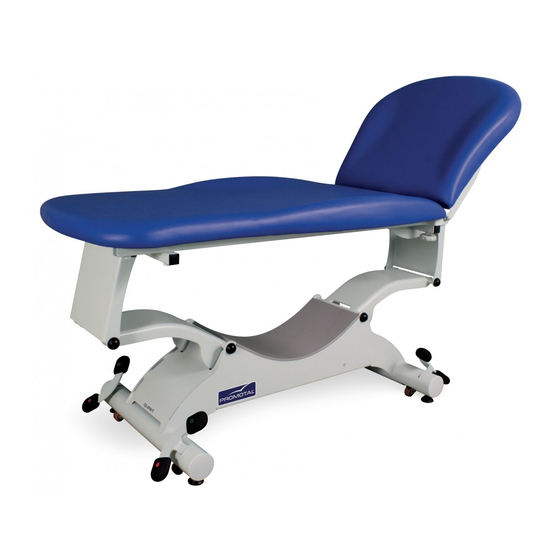

- Page 1 User’s Guide Model Shown : 2050-15 Electric Examination Couch 2050-10 / 2050-15 / 2050-20 2050-30 / 2050-50...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Applied parts Electrical power supply Electromagnetic interference Precautions when unpacking Material delivered in cardboard packaging Dismounted material Products delivered on wooden palettes Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning Cleaning/Disinfecting User’s Guide –... - Page 4 Summary Adjusting the backrest tilt Adjusting the backrest tilt Paper roll Installation of the paper roll holder Using the paper roll The levellers Adjusting the levellers Block’n Roll ® Using the Block’n Roll ® Accessories Pair of Clamps Installing the Clamps Arm rest Adjusting the arm rest Pair of stirrups...
- Page 5 Summary Installation of the paper cutter Using the paper cutter The pedal control Installation of the pedal control The pedal control Installation of the pedal control The pedal control Installation of the pedal control Options Castors with brakes Using the castors Face slit in head-cushion Accumulator Technical characteristics of the accumulator...
-
Page 6: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation limitation Not to use sharp Keep in a dry place... -
Page 7: Applied Parts
Electromagnetic interference This Promotal medical device was designed and built to minimize electromagnetic interference with other equipment. If interference is, however, observed, you must remove the apparatus causing the interference from the room and/or plug it into an isolated circuit. -
Page 8: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the to handle materiel of lifting gear In this case, the products can be easily handled without any lifting gear, taking care to position the product In this case, it is possible to use a fork lift truck, according to the directional arrows on the packaging. -
Page 9: Verification
Check that the package contains the device, the accessories and options, the power cord (if electric DM) and the Operating guide. Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 10: Cleaning Protocol
Any modification to the medical device without written authorization from the manufacturer is forbidden. Caution Only accessories designed and provided by Promotal for this medical device are authorised for use. Caution This medical device is not intended to be cleaned in a washing tunnel. -
Page 11: User's Guide - Examination Couch
User’s Guide – Examination Couch Intended use This appliance is designed for use in professional premises only : ○ Medical practices ○ Care establishments This appliance must not be installed in domestic premises. This table is designed to be used only by healthcare staff. This examining table is used to perform interventions under the best possible safety conditions. -
Page 12: Electrical Connections
User’s Guide – Examination Couch Electrical connections This table must be connected to the main electricity supply. ○ Connection to the supply : 120 V or 230 V (depending on country) ○ Frequency : 50/60 Hz ○ Protection Classification / Degree of electric shock protection : Class 2 / B ○... -
Page 13: Assembling Instruction
Assembling instruction The table is delivered dismounted. The packaging contains 2 boxes : the upholstery, the paper roll holder. the frame, support handle. Assembling the upholstery Upholstery Backrest Tighten screws before use. N°4 Allen key User’s Guide... -
Page 14: Assembling The Support Handle
Assembling instruction Assembling the support handle A2A200-04 Select the corressponding hard control support to the relevant upholstery : A2A200-03 - A2A200-03 / 600150-65, 600151-65 - A2A200-04 / 600150-70, 600150-75, 600151-75 The support handle, located beteween the upholstery and the frame, may be moved or installed on the other side. -
Page 15: Using The Couch
Using the Couch Safety : For safety reasons, and in order to avoid malfunctioning, no objects should be placed under the seat cushion or between the moving parts of the couch. Caution Safety note the supply cable for this medical Unplug the power supply cable device may represent an obstacle before moving the MD. -
Page 16: Adjusting The Height
Using the Couch Adjusting the height Press on the hand control. Down Note : After a lot of use, a gap may appear when in the horizontal position. Placing the table in the low (or high) position will reinitialize the motors. Adjusting the trendelenburg position (for models 2050-20, 2050-30 and 2050-50) Press on the hand control. -
Page 17: Adjusting The Backrest Tilt
Adjusting the backrest tilt (for models 2050-10, 2050-15, 2050-20 and or down, with the other hand lower or raise the 2050-30) The patient must not lean with his / backrest to the desired position. her full weight on the backrest during With one hand, move the lever (L1) either up this procedure. -
Page 18: Paper Roll
Using the Couch Paper roll Installation of the paper roll holder N°4 Allen key Using the paper roll Caution follow the indications provided well obtain a greater Cover the upholstery with paper before use. longevity of the material. User’s Guide... -
Page 19: The Levellers
The levellers Adjusting the levellers Screw or unscrew the leveller to the desired height. Block’n Roll ® (for models 2050-15, 2050-30 and 2050-50) Using the Block’n Roll ® Caution : Must not be use with the patient, This system is only to be used to move the table for cleaning purposes. -
Page 20: Accessories
Accessories Pair of Clamps (reference 166) Installing the Clamps Take the stopper (B) out of the square tube if necessary. Loosen the nuts (V), and put the pair of clamps ref.166 (E) into position in the square tubes. Tighten the nuts. The clamps accept accessories with a diameter of 16 Arm rest (reference 2536) -
Page 21: Pair Of Stirrups
Pair of stirrups (reference 850) Installing the stirrups Caution Clamps are necessary to install Tighten screws before use. these accessories. (réf. : 166) Pair of legrests (reference 840) Installing the legrests Caution Clamps are necessary to install Tighten screws before use. these accessories. -
Page 22: Hook Iv Pole
Accessories 2 hook IV pole (reference 985-01) Installing the IV pole Tighten screws before use. Caution Clamps are necessary to install these accessories. (réf. : 166) Auto-blocking I.V. pole Installing the IV pole (reference 2985-01) Unscrew the screw handle. Insert the I.V. pole and rescrew. Caution Clamps are necessary to install these accessories. -
Page 23: The Pair Of Barriers
The pair of barriers (reference 85114-01) Installing the pair of barriers 3. Tighten the screw. 1. Unscrew the screw. 2. Insert the pair of barriers. Approach the barriers to obtain a spacing of 25 mm beteween the barriers and the upholstery. Using the pair of barriers To raise the pair of barriers Take hold of the upper part, and lift it to its... -
Page 24: Headrest
Accessories Headrest (reference 1102-10) Backrest extension (reference 2055-01) Installating the Backrest extension N°4 Allen key User’s Guide... -
Page 25: Headrest
Headrest (reference 2054-01) Installating the Headrest N°4 Allen key Intallation of the headrest on the upholstery 600150-65 et 600150-75 Intallation of the headrest on the upholstery 600150-70 User’s Guide... -
Page 26: Adjustable Paper-Roll Holder
Accessories Adjustable paper-roll holder (reference 2056-02) Installating the paper roll holder 1. Remove the standard paper roll holder. M6x25 (x 2) N°4 Allen key 3. Replace the paper roll holder. User’s Guide... -
Page 27: Installating The Paper Roll Holder [With The Head-Rest (Ref. : 2054-01)]
Installating the paper roll holder [with the head-rest (ref. : 2054-01)] N°4 Allen key ENT0810 (x 2) M6x30 (x 2) User’s Guide... -
Page 28: Installation Of The Paper Roll
Accessories Installation of the paper roll The paper roll is positioned on a mobile axis with adjustable hooks at each end. 1. Unscrew the screw handle (VS). 2. To remove the paper roll holder slightly (PR). 3. Insert the paper roll. Cover the upholstery with paper before use. -
Page 29: Using The Paper Cutter
Using the paper cutter 1) Slide the paper under the paper cutter. 2) Replace the paper cutter. The pedal control (reference 2051-10) (for model 2050-10 and 2050-15) Installation of the pedal control (Cf : page 16) The pedal control (reference 2051-21) (for model 2050-20 and 2050-30) Installation of the pedal control (Cf : page 16) -
Page 30: The Pedal Control
Accessories The pedal control (reference 2051-31) (for model 2050-50) Installation of the pedal control (Cf : page 16) User’s Guide... -
Page 31: Options
Options Castors with brakes (reference 81036) (for models 2050-10 and 2050-20) Using the castors Caution : Must not be use with the patient, This system is only to be used to move the table for cleaning purposes. Free position Brake position (Reference 81036) Caution... -
Page 32: Accumulator
Options Accumulator (references 2092) Technical characteristics of the accumulator Voltage ......: 24 V DC capacity ......: 1.2 Ah Fuse ........: T 15 A Protection index ....: IPX6 Type of accumulator ..: Gel plomb Charge time ...... : approx. -
Page 33: Protection Classe 1 And Equipotential Terminal
Protection Classe 1 and equipotential terminal (references 2059-01) Electrical connection : Class 1 ○ Connection to the supply : 120 V or 230 V (depending on country) ○ Frequency : 50/60 Hz ○ Protection Classification / Degree of electric shock protection : Class 1 / B ○... -
Page 34: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 35: Re-Fit The Protection Cover
Lifespan of the Medical Device Re-fit the protection cover Cable User’s Guide... -
Page 36: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 37: Note
Note User’s Guide... -
Page 38: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 39: Declaration Of Conformity
22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A... - Page 40 PROMOTAL - FRANCE www.promotal.com DIC2050-10_4515EN...
