Adjusting the output
tray for documents
from 43 cm (17 in.) to

86 cm (34 in.)

Exit deflector

A-61500 May 2010
An output tray document extender is available for scanning documents
from 43 cm (17 in.) to 86 cm (34 in.). Contact your Kodak Field
Engineer (1-800-3KODAK3) to order the document extender (Part No.
5E4754).

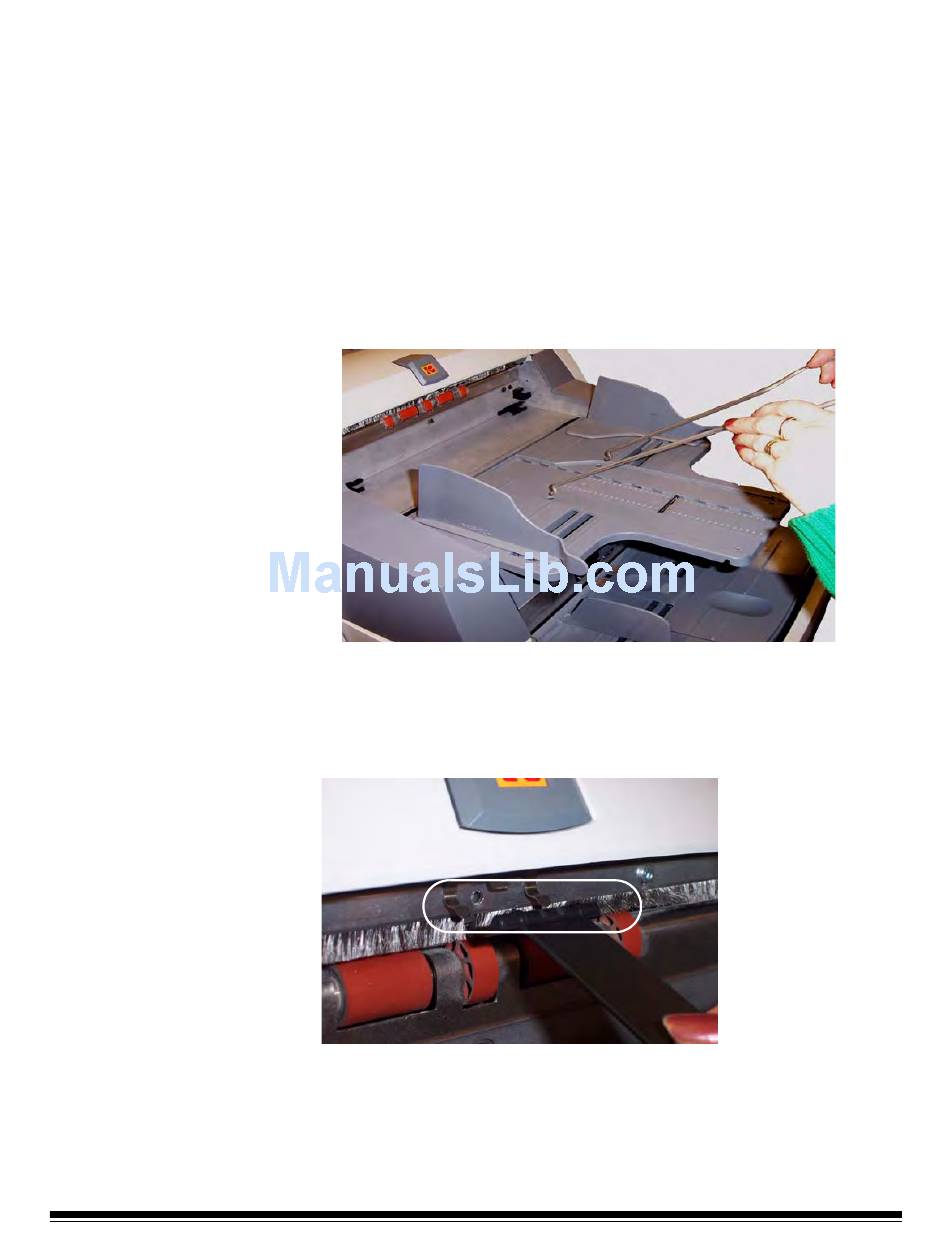

1. Lift the front of the output tray and pull it out of the detent position.
2. Place the output tray in the forward detent position.
3. Gently push down on the left side of the output tray until in snaps
into place.
4. Remove the end stop.
5. Remove the exit deflector.
6. Install the output tray document extender.
The optional exit deflector aids in document stacking. When feeding
long documents, it is suggested that the exit deflector be removed.
The exit deflector can be pulled out of place or pushed into place as
required.
