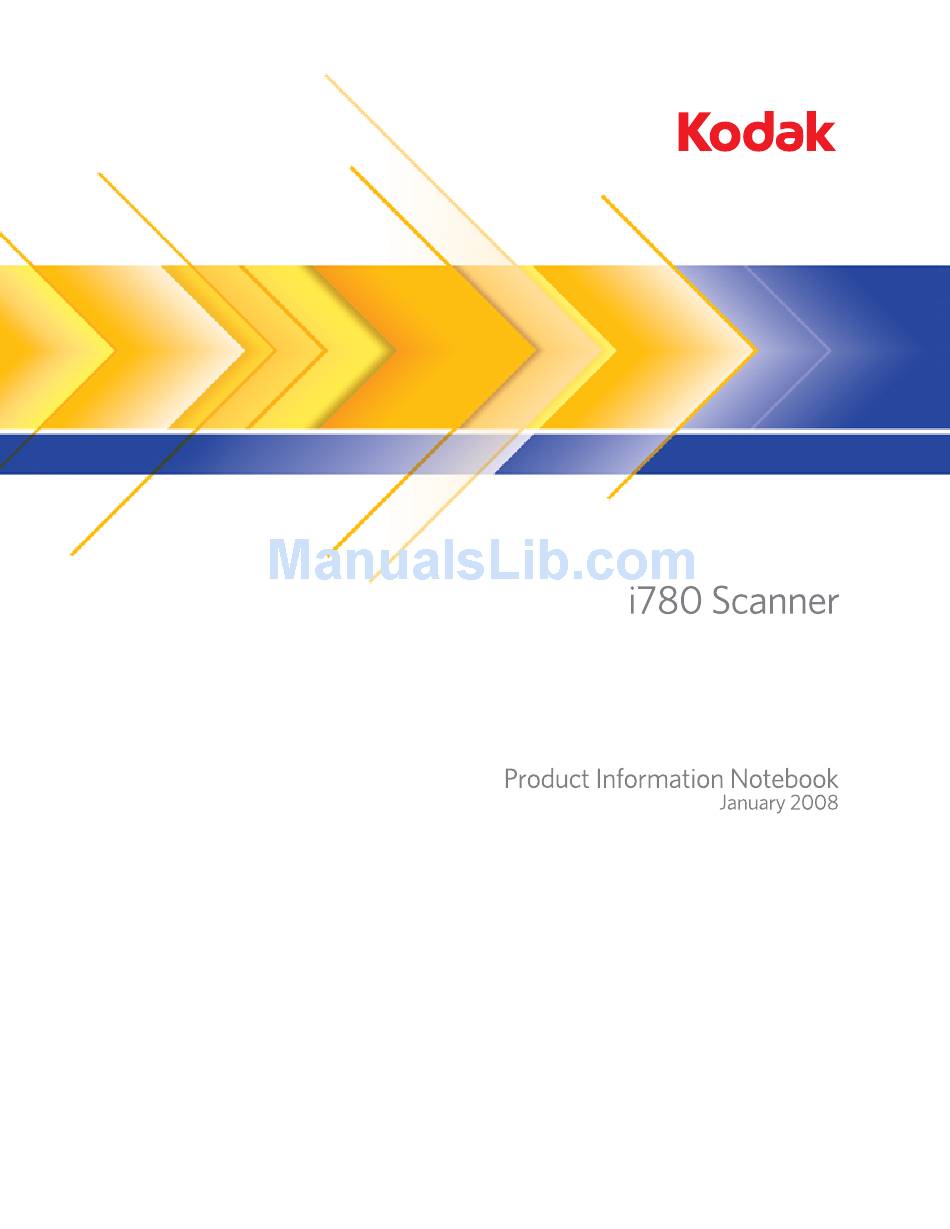

Kodak i780 Product Information

Scanner
Hide thumbs Also See for i780:

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual

Advertisement

loading

Related Manuals for Kodak i780

Summary of Contents for Kodak i780

  • Page 2: Features At A Glance

    The Kodak i780 Scanner raises the bar and operates at the same rated speed, even with advanced image processing features enabled, including our new content-based auto orientation/auto rotation. Simply put, there’s nothing but performance and precision under the hood of the i780 Scanner. Features at a Glance •...
  • Page 3 • 34 in. maximum document length — the maximum document length that can be fed has been increased to 34 inches for all resolutions and with all cropping methods in black and white and color/grayscale. • Dual xenon lamps — two long-lasting, mercury-free Xenon lamps per side give you maximum illumination to help eliminate shadows from wrinkled documents.

  • Page 4: What's In The Box

    What’s in the box? • Kodak i780 Scanner • Output tray • Short document tray • Ink cartridge and blotter strips • Tires and Pre-separation pads • Cleaning supplies • FireWire (IEEE-1394) package (card and cable) • Calibration targets •...

  • Page 5: Physical Dimensions

    Physical dimensions Height: 40.6 cm / 16 in. Width: 60.9 cm / 24 in. Length: 76.2 cm / 30 in. Weight: 38.6 kg / 85 lbs Environmental conditions Operating Temperature: 10°C to 35°C (50° to 95°F) Humidity: 10 to 85% Environmental Factors: Energy Star qualified scanners Heat Load:...
  • Page 6 Scanner components Front view Elevator tray extender — open the elevator tray extender to accommodate long documents. Feed module — provides smooth document feeding of various sizes, thicknesses and textures. Elevator tray side guides — slide the guides in or out to accommodate the document size you want to scan.
  • Page 7 LEDs — illuminates or flashes from top to bottom as follows: Illuminates when the power is turned on and the scanner is idle. This indicator will flash if the scanner is in “sleep” or lamp saver mode. Illuminates when the scanner is enabled and/or scanning, and flashes when the scanner is powering up.
  • Page 8 Inside view Separation roller — provides smooth document feeding of various sizes and textures one document at a time. Ink blotter strips — collects residue from the Enhanced Printer. Imaging guides — the scanner has an upper and lower imaging guide. It is important to keep the imaging guides clean to obtain optimum image quality.
  • Page 9 Back view Power cord connection Retainer clip FireWire (IEEE 1394) connection Power Cord Connection — provides power to the scanner. The scanner is packed with six power cords. Choose the power cord appropriate for your location and connect it accordingly. Connect the power cord first to the scanner, then to the wall outlet.
  • Page 10 Easy-to-change rollers and feed module. Kodak SurePath Paper Handling Kodak SurePath Paper Handling means you have the confidence that documents will “fly” through the scanner under control. Kodak’s Document Imaging scientists and engineers analyzed years of production scanner feedback from the Kodak service organization’s tracking system and took the best paper transport system in the industry and made it better.
  • Page 11 Paper Handling and Feeding The input tray and automatic document feeder of the i780 Scanner is designed to stack and feed up to 500 sheets of 75 g/m (20 lb.) bond paper reliably across the specified range of document sizes.
  • Page 12 Response Center at Kodak for further analysis. Optics The design heritage of the M-type Kodak lens used in the i780 Scanner comes from a high- resolution production scanner developed for complex character scanning. The lens also incorporates an infrared filter with its lead-free multiple elements. This reduces light loss and eliminates alignment of the infrared filter to the lens.
  • Page 13 Enhanced Printer The Enhanced Printer provides a vertical print capability and supports alphanumeric characters, date, time, document count and custom messages. The Enhanced Printer is unique in that the document print string can be configured to include both static information (i.e., information that stays the same for each document, such as scan station or operator) and dynamic information (i.e., information that may change for each page scanned, such as time or sequential document number).
  • Page 14 End user feedback in the mid-volume segment indicated a strong desire for a higher volume, yet reliable feeder. The i780 Scanner offers elevator-feed or continuous-feed, when the elevator is in the up-position. In addition, the elevator can now be set to four settings for added versatility and productivity: 500-, 250-, 100-sheets and manual.
  • Page 15 Integration For the most up-to-date listing of completed integrations, go to the Kodak web site at www.kodak.com/go/ScannerISVs. IEEE-1394 (FireWire) Interface Reduce setup and installation time with plug-and-play simplicity. The IEEE-1394 (FireWire) card and cable are shipped with the scanner. Accessories Kodak Feeder Kit for Ultra-Lightweight Paper —...
  • Page 16 Advanced image processing capabilities have long been the hallmark of document image scanners. The i780 Scanner advances image processing to a new level, taking all the best and adding more. Full-speed image processing in color, grayscale and black and white arenas in a scanner of this capability offers an unparalleled opportunity for today’s demanding document...
  • Page 17 Simultaneous Output of Color/Grayscale and Black and White Images The i780 Scanner can output color, grayscale, or black and white images; grayscale and black and white images; or color and black and white images without further processing required by the host (some color scanners create this type of output by having the color image converted at the host).
  • Page 18 Automatic: (used for batches of mixed-size documents) — dynamically adjusts the cropping window for different document sizes. Based on the edges of the image detected, the i780 Scanner dynamically detects the boundaries of the document and only delivers the actual document to the operator.
  • Page 19 The i780 Scanner can pick up the area with the bar code as a black and white image and deliver the rest of the image in full color (high or low resolution depending upon the needs of the application).
  • Page 20 Exposure and contrast have been optimized to bring out details. Lines and fonts appear with smooth edges. All this, in color or black and white, without operator intervention or post-processing. Only the combination of Kodak optics and image processing bring you Perfect Page scanning.
  • Page 21 The Kodak i780 Scanner is targeted at departments or organizations that need to automatically extract data from a wide variety of structured and unstructured forms. Structured Forms: • New customer applications • Customer orders and billings • Customer update or responses forms •...
  • Page 22 End User The Kodak i780 Scanner is a high-speed, production level scanner optimized for the needs of mission-critical forms processing operations. It is the only scanner in it’s price / performance class that operates at full rated speeds with advanced image processing features that enable data extraction: •...
  • Page 23 (through OCR or ICR technology) read pertinent data without interference from the lines and boxes of the form. The i780 Scanner can drop out either red, green or blue. The dropout color selection (R, G, B) is changeable at the host.
  • Page 24 From the industry leader in digital innovation and the world leader in imaging, the i780 Scanner truly re-defines the “mid-volume production” document scanner category. Competitive offerings are hard pressed to beat Kodak’s winning combination of price, features, and performance offered with the i780 Scanner.
  • Page 25 This section compares the Kodak i780 Scanner with the major competition in the mid-volume production scanner segment. We hope you find the comparisons useful. The information that follows was gathered through sell sheet materials supplied (physically or via the Internet) by the manufacturer. Other data has been provided by Kodak Engineering Staff, Value-Added Distributors, and outside consultants.
  • Page 26 Paper Types: Bond, Laser, Inkjet, Offset Paper Weights: The elevator tray handles a broad range of paper weights from 45 to 200 g/m (12 to 110 lb.). The Kodak Feeder Kit for Ultra Lightweight Paper can handle paper weights from 25 to 75 g/m (7 to 20 lb.).
  • Page 27 Key Selling Points Against Competition Kodak i780 Scanner -vs.- BB&H Spectrum Scanners • The list price of the Kodak i780 Scanner is 15% less than that of BB&H’s top Spectrum model. • The Kodak i780 Scanner offers superb image processing utilizing Kodak’s proprietary Perfect Page image quality algorithm, providing an array of image quality capabilities including: −...
  • Page 28 • The Kodak i780 Scanner can scan longer documents (up to 34 inches / 864 mm) at rated speed. The Fujitsu scanner cannot handle longer documents, supporting only documents up to 17 inches / 432 mm.
  • Page 29 Color: demonstrates a 55% reduction in speed for simplex, and a 66% reduction in speed for duplex. • The Kodak i780 Scanner can scan longer documents (up to 34 inches / 864 mm) at rated speed. The Panasonic scanner does not offer this capability. •...
  • Page 30 Scanner meets more of your scanning needs, with speed and reliability. • The speed of the Kodak i780 Scanner will not slow down when key features are enabled. For example, the product provides auto orientation/auto rotation and dual stream output at rated speed, a broad array of critical image quality capabilities including deskew and color dropout, and even manages mixed batch documents, all at rated speed.
  • Page 31 120 0013 Consumables Kodak Feed Consumables Kit for i600/i700/i1800 Series Scanners 108 4755 Kodak Feeder Kit for Ultra-Lightweight Paper for i600/i700/i1800 Series Scanners 896 5279 Kodak Extra-Large Feeder Consumables Kit for i600/i700/i1800 Series Scanners 842 6157 Kodak Extra-Extra-Large Feeder Consumables Kit for i600/i700/i1800 Series Scanners...
  • Page 32 Kodak Field Engineer will replace them at no extra cost (per the Kodak Service Agreement). What is the warm-up time for the i780 Scanner when they are in standby with lamps off? Warm up times are as follows: •...
  • Page 33 Imaging guides Can I add Kodak PerformancePlus to the i700 Scanner? Service for the i780 Scanner is covered by the Kodak PerformancePlus program. It will allow customers to upgrade their cover at highly competitive prices. PerformancePlus is available in selected markets only. Contact your local Kodak sales team for more information.
  • Page 34 What host adapter does Kodak ship with the scanner? Koutech 1582T. Do I need to purchase a FireWire card and cable? No. Kodak supplies both a FireWire card and cable in the box with the scanner (see the “What’s in the Box” section). Why would someone buy FireWire? It is a proven, reliable standard for data-intensive, high-speed transmission and it is one of the fastest peripheral standards ever developed, at a price that’s affordable to consumers.
  • Page 35 (50 Mbps) (Practical: 2.5) (Practical: 5) (Practical: 20) (1.5 Mbps) (60 Mbps) (Practical: 25) (Practical: unknown) i200/i700 55XX/75XX/95XX i50/i60 i800 Series Kodak Scanner Scanners Scanners 1500/2500 Compatibility 35XX/4500 Kodak Professional 7520/9520 Digital Cameras Standard on $200 USD for $200 USD for...
  • Page 36 Product Comparison – Kodak i780 Scanner with the Competition Böwe Bell & Howell Canon Fujitsu InoTec Microform Panasonic Kodak i780 Scanner Kodak i660 Scanner Kodak i1840 Scanner Spectrum XF: 8120DC imageFORMULA fi-5900C ScaMax 422 CD MF S 455 KV-S3105C XF 8140DCI...
  • Page 37 Kodak’s Graphic Communications Group: Guangzhou +86-20-8666-9888 ext. 6403 Beijing +86-10-6561-6561 ext. 8908 Shanghai +86-21-5884-1818 Shenzhen +86-755-8835-2068 ext. 362 Hong Kong +852-2564-9357 Taiwan +886-2-8751-8187 Australia Toll Free 1800-895-747 New Zealand Toll Free 0800-256-325 (0800 2 KODAK) Singapore & South East Asia...
