Zip FlushMaster Pearl &
Zip FlushMaster Mk.2
Water Saver Urinal Flushing System
Keeps Urinals Clean & Reduces Water Wastage
Instructions for Models: WS003; WS004; WS006; WS007 and 99168 Sensor.
WS004

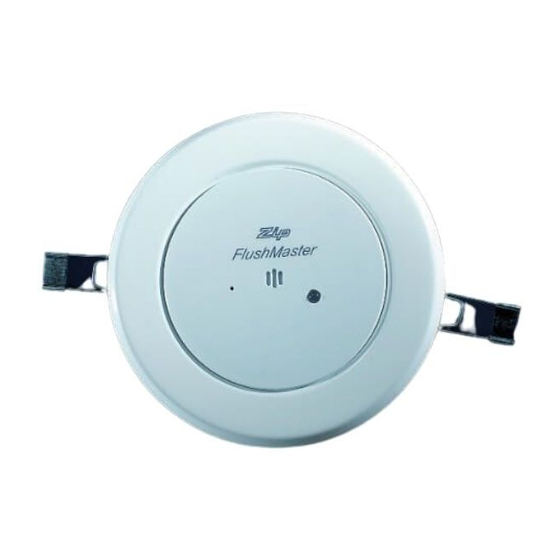

41091 Zip FlushMaster Pearl
Compact Recessed Sensor & Solenoid
DC WS004. With 64mm body
Zip FlushMaster Pearl Installation & Maintenance Instructions - 82902 - January 2012 v1.00
Installation and Maintenance Instructions
®
®
WS003
41095 Zip FlushMaster MK2
Recessed sensor & Solenoid
DC WS003. With 105mm body
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Zip 99168
Summarization of Contents
Installation Procedure
Set Up Water Discharge
Details on typical installations with cisterns and direct injection, including flow restrictor notes.
Autosyphon Installation
Instructions for installing the auto-syphon within the cistern for proper flush control.
Airbreak Installation
Guidance on fitting the air break to the urinal sparge pipe to prevent backflow.
Restrictor installation
Instructions for fitting the Restrictaflow between the tap and the latching valve.
Set Flush Timing
Preset Values
Default settings for Janitorial Flush, Delay Time, and Fill Time are shipped with the unit.
Setting Fill Time
Procedure for setting the water fill time for the cistern using the fill button.
Setting Delay Time
Procedure for setting the delay time between flushes using the delay button.
Valve Override
Method to manually trigger the flush valve using a paper clip for testing.
Maintenance Instructions
Cleaning
Guidelines for cleaning the sensor and system components using mild solutions.
Battery Replacement
Steps for replacing the system's battery, including reset instructions.
Valve Diaphragm Replacement
Procedure for replacing the diaphragm in the latching valve to ensure proper function.
