Blind actuator RMD, Shutter actuator RMD
Blinds actuator, 4-gang DC 12-48 V
Art. No. 2424 REG HE
Blinds actuator, 2-gang AC 230 V, 1-gang DC 12-48 V
Art. No. 2502 REG HE
Blinds actuator, 4-gang AC 230 V, 2-gang DC 12-48 V
Art. No. 2504 REG HE
Blinds actuator, 8-gang AC 230 V, 4-gang DC 12-48 V
Art. No. 2508 REG HE
Art. No. 2514 REG HE
Shutter actuator 4-gang AC 230 V
Art. No. 2504 REGHER
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains
voltage and SELV/PELV together on a single Venetian blind actuator.
These instructions are an integral part of the product, and must remain with the end
customer.

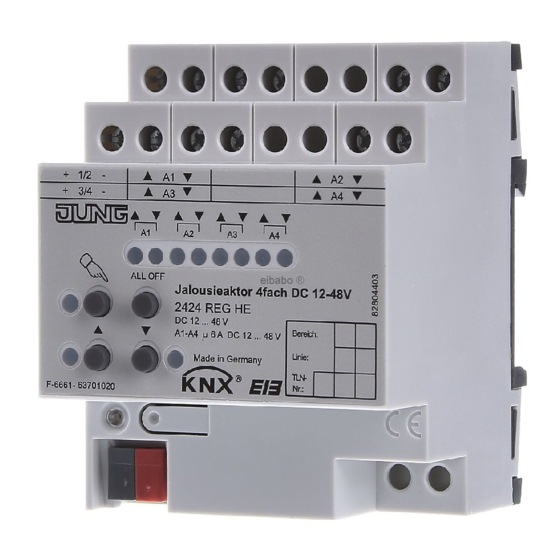

2 Device components
(1) Button field for manual control
(2) Programming button and LEDs
(3) KNX connection
(4) Connection for mains supply
82560273
J:0082560273
Figure 1
1/13 19.04.2013
