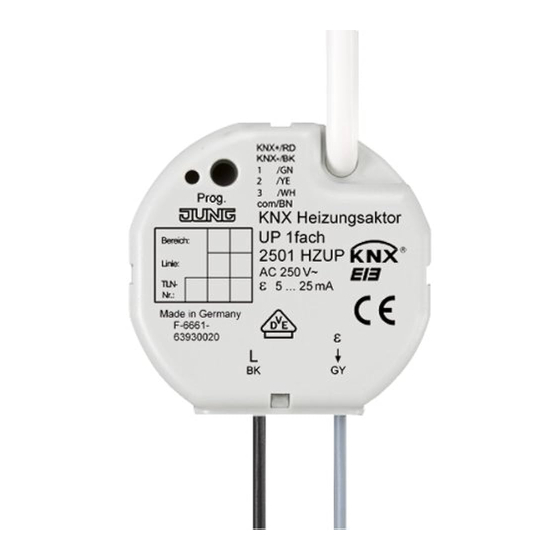

Flush-mounted heating actuator, 1-gang with satellite input
Flush-mounted heating actuator, 1-gang with satellite input
Art.-No.: 2501 HZUP
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by qualified electricians.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
The device is not suitable for disconnection from supply voltage.
The connected actuators are not electrically isolated from the mains – even when
switched off.
Do not connect any external voltage to the inputs, since doing so may damage the
device(s), and the SELV potential on the KNX bus line will no longer be available.
These instructions are an integral part of the product, and must remain with the end
customer.

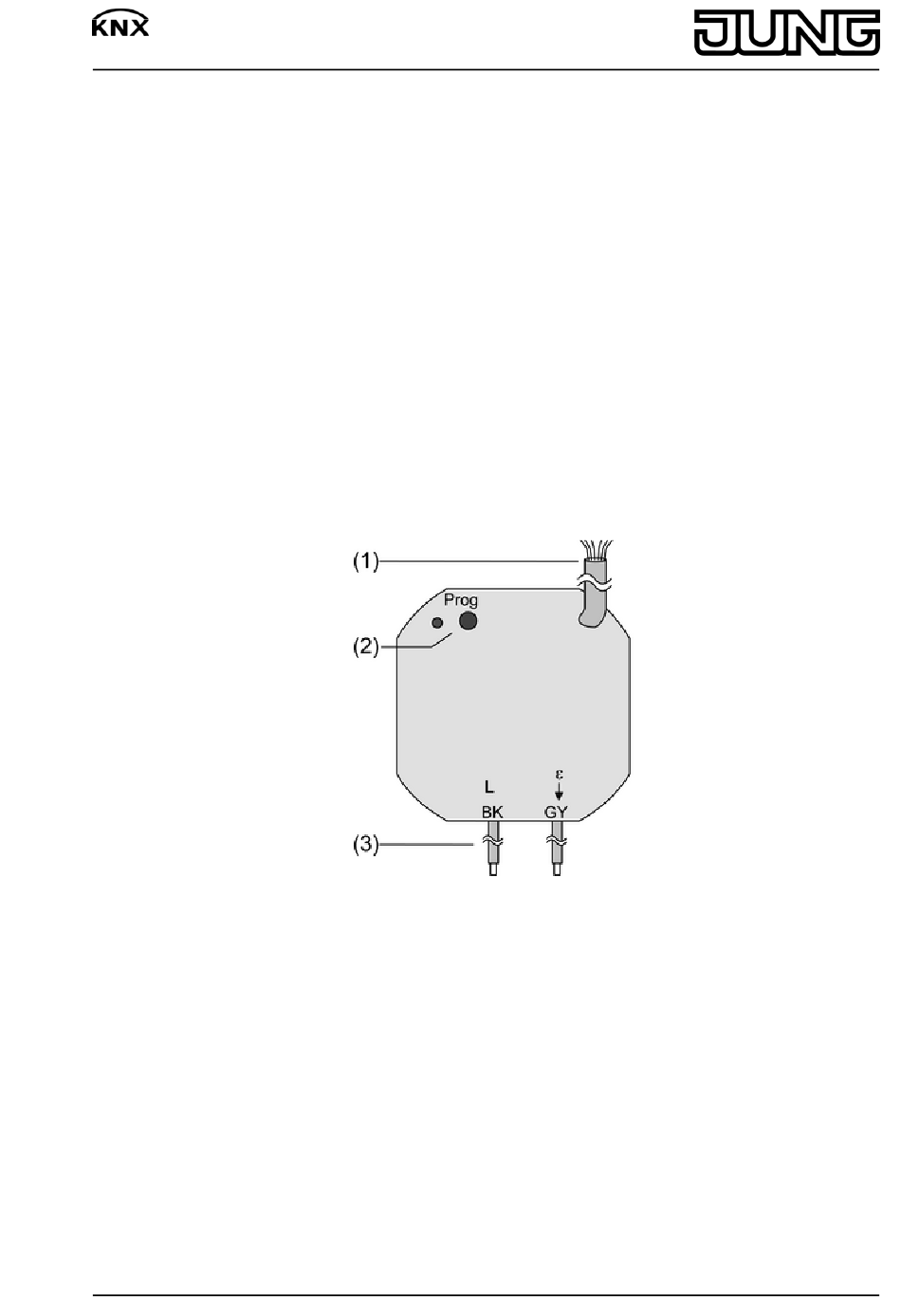

2 Device components
(1) Control cable
(2) Programming button and LED
(3) Connection of mains and power cables
Connection assignment, power cables
BK, black: connection L
GY, grey: actuator connection
82573603
J:0082573603
picture 1
1/7
15.05.2009
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 2501 HZUP
Summary of Contents for Jung 2501 HZUP
- Page 1 Flush-mounted heating actuator, 1-gang with satellite input Flush-mounted heating actuator, 1-gang with satellite input Art.-No.: 2501 HZUP Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by qualified electricians. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Flush-mounted heating actuator, 1-gang with satellite input picture 2 Connection assignment of control cable RD, red: KNX+ BK, black: KNX– GN, green: input 1 YE, yellow: input 2 WH, white: input 3 BN, brown: COM inputs 1...3 3 Function System information This device is a product of the KNX system and complies with the KNX directives.
- Page 3 Flush-mounted heating actuator, 1-gang with satellite input 4 Information for qualified electricians 4.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before working on the device, disconnect the power supply and cover up live parts in the working environment.
- Page 4 Flush-mounted heating actuator, 1-gang with satellite input picture 4 Minimum spacing between the mains voltage and bus/extension wires: 4 mm (picture 4). Connect the load (picture 5). Use terminals. Connect the device to KNX. If necessary, connect potential-free contacts (6) to inputs (picture 2). Install the device in the appliance box.
- Page 5 Flush-mounted heating actuator, 1-gang with satellite input Use terminals picture 6: Stripping length Strip 9 - 11 mm of the cable (picture 6). picture 7: Connection of the fine-wire cable Push the terminal together on the side with the square opening and connect a fine-wire cable (picture 7).
- Page 6 Flush-mounted heating actuator, 1-gang with satellite input picture 8: Connection of the single-stranded cable Push the single-stranded cable into the round opening on the installation side up to the stop (picture 8). 4.2 Commissioning Load the address and the application software Switch on the bus voltage Assign physical addresses and load application software into the device.
- Page 7 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
