Switch actuator / blinds actuator

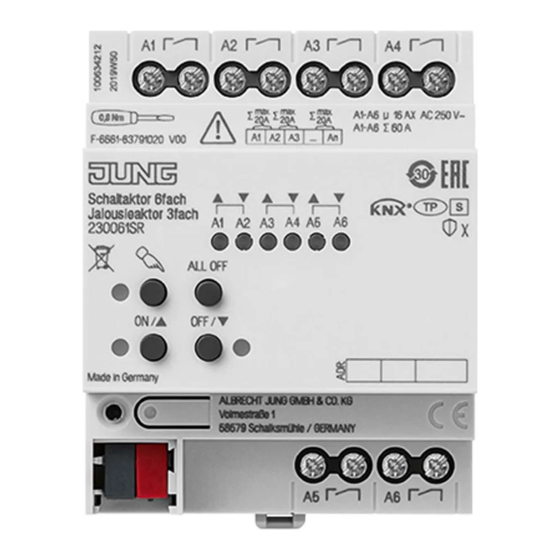

Switch actuator, 6-gang / blinds actuator, 3-gang
Art. no.: 230061SR
Switch actuator, 16-gang / blinds actuator, 8-gang
Art. no.: 230161SR
Switch actuator, 24-gang / blinds actuator, 12-gang
Art. no.: 230241SR
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains voltage
and SELV/PELV together to the device.
For parallel connection of several motors to an output it is essential to observe the correspond-
ing instructions of the manufacturers, and to use a cut-off relay if necessary. The motors may be
destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the limit
switches for correct adjustment. Observe the specifications of the motor manufacturers. Device
can be damaged.
Do not connect any three-phase motors. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
Button field for manual operation
(2)
Programming button and LED
(3)
KNX connection
(4)
Status LEDs for outputs
(5)
Load connections (relay outputs)
82402603
J0082402603

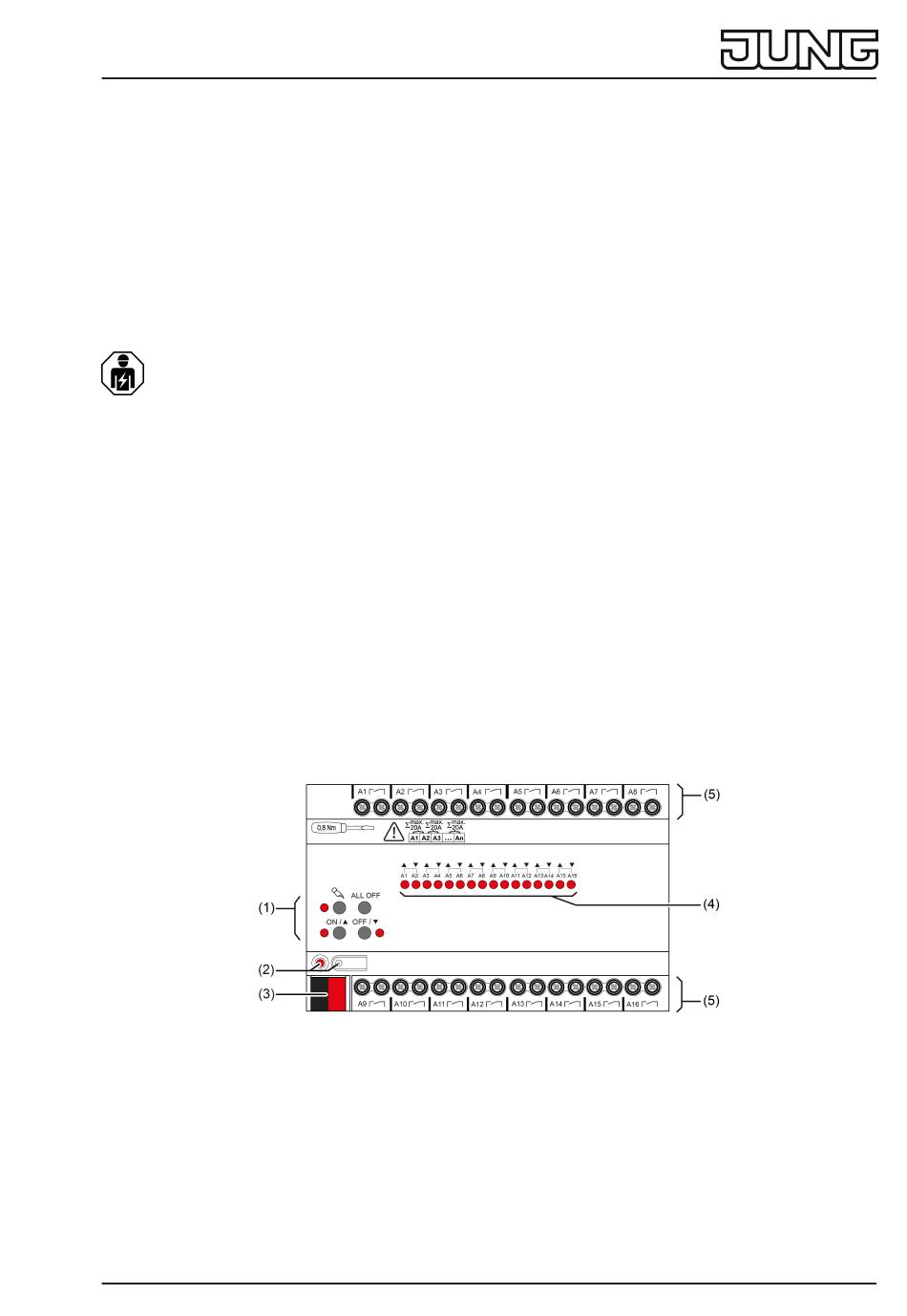

Figure 1: Device components
1 / 9
15.05.2020
Advertisement
Table of Contents
Related Manuals for Jung 230061SR
Summary of Contents for Jung 230061SR
- Page 1 Switch actuator / blinds actuator Switch actuator, 6-gang / blinds actuator, 3-gang Art. no.: 230061SR Switch actuator, 16-gang / blinds actuator, 8-gang Art. no.: 230161SR Switch actuator, 24-gang / blinds actuator, 12-gang Art. no.: 230241SR Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons.
- Page 2 The device can be updated. Firmware can be easily updated with the Jung ETS Service App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipula- tion in building automation and can be configured in the ETS project.
-
Page 3: Operation
Switch actuator / blinds actuator Logic function characteristics – Logic gates – Transformer (conversion) – Disabling element – Comparator – Limit value switch Operation Figure 2: Operating elements Status LEDs for outputs ON: Relay output closed OFF: Relay output opened Flashes slowly: output in manual mode selected Flashes quickly: Output disabled via continuous manual mode Button ǃ... - Page 4 Switch actuator / blinds actuator Operating modes – Bus operation: Operation via push-button sensors or other bus devices – Temporary manual control: manual control locally with keypad, automatic return to bus control – Continuous manual mode: Exclusively manual operation on the device No bus operation is possible in manual mode.
-
Page 5: Information For Electrically Skilled Persons
Switch actuator / blinds actuator Operating an output in manual mode ￭ Activate short-term or permanent manual operation. ￭ Press button ǃ (1) repeatedly until LED A1... (4) of the desired output or output pair flashes. ￭ Press button DŽ (9) or Dž (10). Short: Switch on/off, drive stop Long: Move blind/shutter upwards/downwards LED DŽ... - Page 6 Switch actuator / blinds actuator – Document all passwords and keep them safe. Observe ambient temperature. Ensure adequate cooling. ￭ Mount device on DIN rail. ￭ In secure operation: The device certificate must be removed from the device and stored securely.
-
Page 7: Technical Data
5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Jung ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (delivery state). Restor- ing the factory settings causes the devices to lose their physical address and configuration. - Page 8 1160 W (140 μF) Mercury vapour lamps uncompensated 1000 W parallel compensated 1160 W (140 μF) Fitting width Art. no. 230061SR 72 mm / 4 module Art. no. 230161SR 144 mm / 8 module Art. no. 230241SR 216 mm / 12 module Weight Art.
-
Page 9: Warranty
Switch actuator / blinds actuator Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82402603 15.05.2020...
