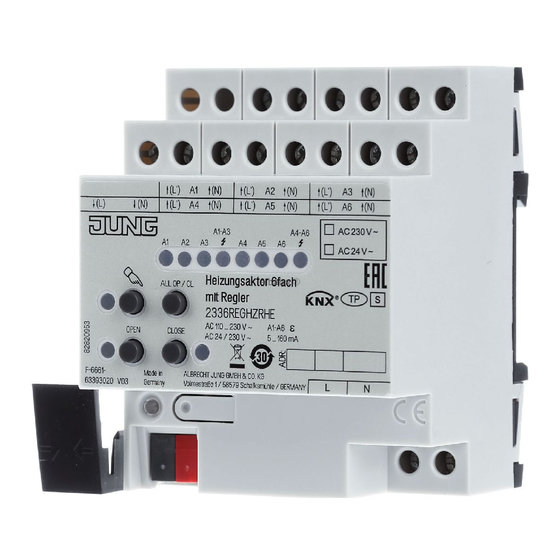

- Page 1 Operating instructions Basic heating actuator 6-gang Art. no. 2336 REG HZ B ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 01.02.2023 82590713 J0082590713 www.jung.de...
-
Page 2: Table Of Contents
Basic heating actuator 6-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 3 Information for electrically skilled persons ................ 5 Mounting and electrical connection................ 5 Commissioning ...................... 7 Technical data ........................ 7 Troubleshooting ........................ 8 Warranty.......................... 9 82590713 2 / 9 01.02.2023 J0082590713... -
Page 3: Safety Instructions
Basic heating actuator 6-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage because mains potential even is applied on the load when the device is switched off. - Page 4 Basic heating actuator 6-gang The function of this device depends upon the software. Detailed information on load- able software and attainable functionality as well as the software itself can be ob- tained from the manufacturer´s product database. Planning, installation and commis- sioning of the device are carried out with the aid of KNX-certified software.
-
Page 5: Information For Electrically Skilled Persons
Basic heating actuator 6-gang Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Before working on the device, disconnect all the corresponding circuit breakers. Cover up live parts in the working environment. Mounting the device Observe the temperature range. - Page 6 Basic heating actuator 6-gang Connect actuators for frost-sensitive rooms to outputs A1 and A4 . These are switched off last in the event of overload. Do not exceed maximum number of valve drives per output (see "Technical data"). Observe the technical data of the valve drives used. Do not connect the neutral conductor from the output terminals through to additional devices.
-
Page 7: Commissioning
Basic heating actuator 6-gang Image 4: Installing the cover ￭ Route the bus line towards the rear. ￭ Install cover on top of the bus terminal so that it snaps into place (see figure 4). Removing the cover Image 5: Removing the cover ￭... -
Page 8: Troubleshooting
Basic heating actuator 6-gang Rated voltage KNX DC 21 ... 32 V SELV Power consumption KNX max. 250 mW Power loss max. 1 W Heating outputs Contact type Semi-conductor (Triac), ε Switching voltage AC 24 / 230 V ~ Mains frequency 50 / 60 Hz Switching current 5 ... -
Page 9: Warranty
Basic heating actuator 6-gang Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82590713 9 / 9 01.02.2023...
