Shutter actuator 4-gang AC 230 V
Shutter actuator 4-gang AC 230 V
Art.-No.: 2204 REG HR
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Risk of injury. Use the device only for controlling roller shutter motors or awnings. Do
not use it to switch other loads.
Use only drives with mechanical or electronic limit switches. Check the limit switches for
correct adjustment. Observe the specifications of the motor manufacturers. Device can
be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

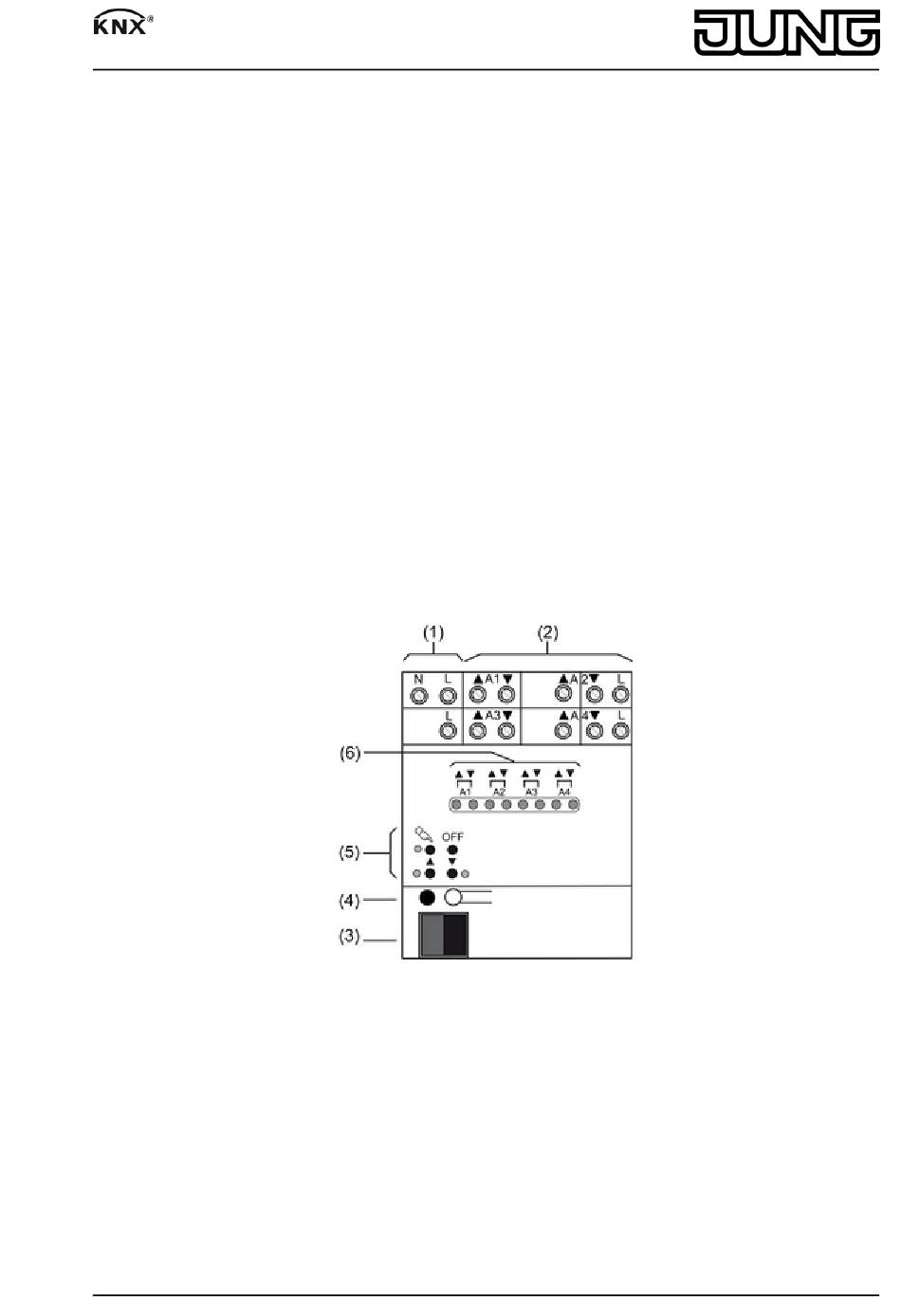

2 Device components
(1) Mains voltage connection
(2) Motor connections
(3) KNX connection
(4) Programming button and LEDs
(5) Button field for manual control
(6) Status LEDs for outputs
82506333
J:0082506333
picture 1
1/8
03.08.2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 2204 REG HR
Summary of Contents for Jung 2204 REG HR
- Page 1 Shutter actuator 4-gang AC 230 V Shutter actuator 4-gang AC 230 V Art.-No.: 2204 REG HR Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Shutter actuator 4-gang AC 230 V 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. Detailed information on loadable software and attainable functionality as well as the software itself can be obtained from the manufacturer´s product database.
- Page 3 Shutter actuator 4-gang AC 230 V Status indication The status LEDs A1...A4 (6) indicate the states of the outputs. Off: Output switched off On: Output switched on Flashes: Output in manual mode Operating modes Bus operation: Operation via push-button sensors or other bus devices Temporary manual mode: exclusively manual operation on the device with button field;...
- Page 4 Shutter actuator 4-gang AC 230 V LED c (12) is off. Bus operation is switched on. Operating the outputs The device is in continuous or short-term manual mode. Press c button briefly, < 1 second, as many times as necessary until the desired output is selected.
- Page 5 Shutter actuator 4-gang AC 230 V Connecting a roller shutter actuator picture 3: Connection example with two motors Connect bus cable to the roller shutter actuator using the connecting terminal (picture 3). Connect mains voltage supply (picture 3). Connect motors to load terminals A1 ... A4(picture 3). i Output A1 and the device electronics of the actuator are supplied via a common lustre terminal.
- Page 6 Shutter actuator 4-gang AC 230 V Removing the cover picture 5: Removing the cover Press the cover to the side and pull it off (picture 5). 5.2 Commissioning Measuring blind/shutter travelling time The blind/shutter travelling times are important for moving the blind/shutter. Measure travelling time from the upper end position to the lower end position.
- Page 7 Shutter actuator 4-gang AC 230 V KNX medium TP 1 Commissioning mode S mode Rated voltage KNX DC 21 ... 32 V SELV Power consumption KNX typical 150 mW Connection mode KNX Connection terminal 6.2 Troubleshooting Manual control with button field not possible Cause 1: Manual control has not been programmed.
- Page 8 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
