Blinds Management

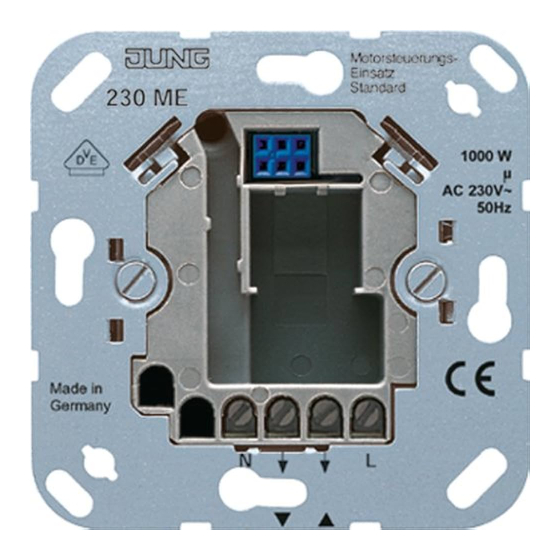

Motor control insert Standard AC 230 V ~
Motor control insert Standard AC 230 V ~
Art. No. 230 ME
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Risk of injury. Use the device only for controlling Venetian blind and roller shutter
motors or awnings. Do not use it to switch other loads.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

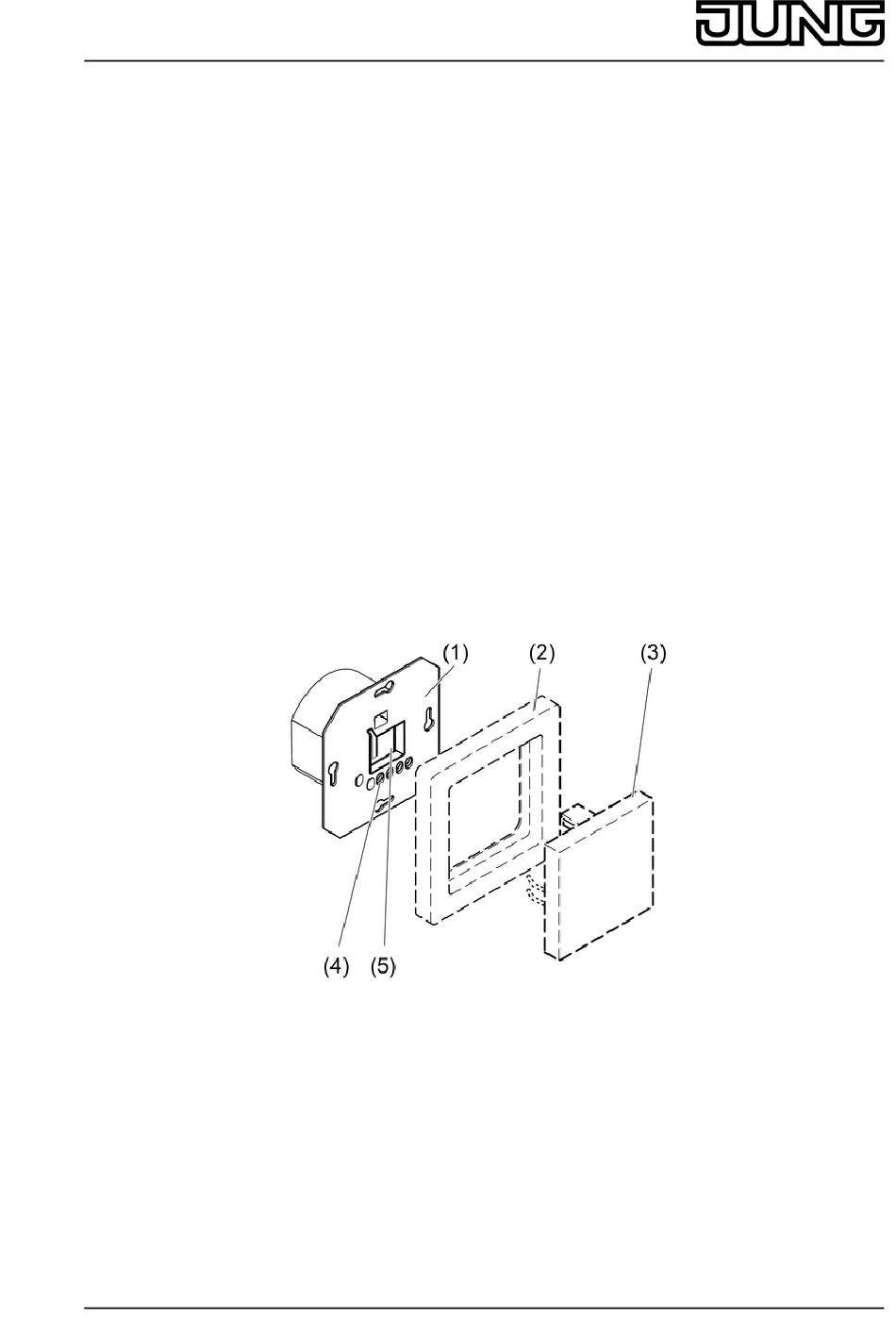

2 Device components
(1) Venetian blind control
(2) Frame
(3) Shutter cover
(4) Terminals
(5) Space for sensor terminal block
32537113
J:0082537113
Figure 1
1/5
25.09.2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 230 ME
Summary of Contents for Jung 230 ME
- Page 1 Blinds Management Motor control insert Standard AC 230 V ~ Motor control insert Standard AC 230 V ~ Art. No. 230 ME Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 Blinds Management Motor control insert Standard AC 230 V ~ 3 Function Intended use Controlling electrically driven blinds, rolling shutters and awnings Operation with suitable shutter cover Installation in appliance box according to DIN 49073 Product characteristics Relay contacts of both running directions are mechanically interlocked Supports sensor functions of the cover 4 Information for electrically skilled persons 4.1 Fitting and electrical connection...
- Page 3 Blinds Management Motor control insert Standard AC 230 V ~ The sensor cable can be installed in three different ways. In-wall routing (figure 4), surface- mounted routing (figure 5), and with appropriate covers plugging the sensor cable into the cover (figure 6).
- Page 4 Blinds Management Motor control insert Standard AC 230 V ~ i For in-wall routing of the sensor cable, use only shielded cables. Recommendation: J-Y (ST)Y 2x2x0.6 mm. Insert the cable through the hole (6) in the insert and route it through the cable duct (7) to the terminal block (8) (figure 4).
- Page 5 We provide a warranty as provided for by law. Please send the device with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
