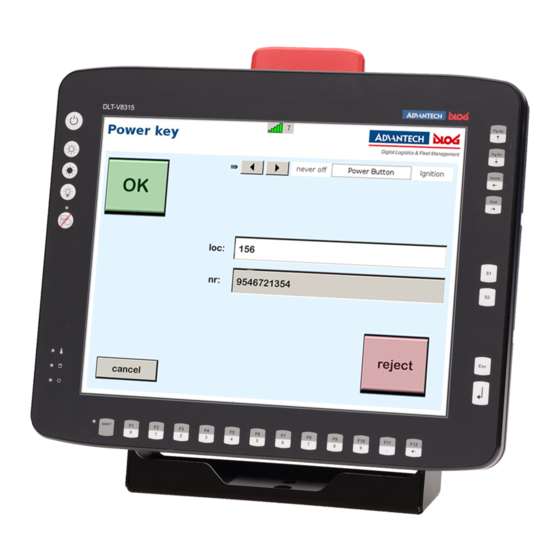

DLT-V83 Industrial Computer
Quick Start and Installation (EN)
These Quick Start and Installation Instructions apply to all models in the DLT-V83
series: For DLT-V8310, DLT-V8312 and DLT-V8315 in various equipment levels.
IMPORTANT:
− Read and observe these instructions before commissioning and
using the DLT-V83.
− Read and observe the "DLT-V83 Safety Instructions".
− Observe all other documents included with the device.
− Retain all documents and pass them on to any future owners of the
equipment.
− Read and observe the "DLT-V83 Operating Instructions" available
online and provided for download from our websites:
www.advantech.com
www.advantech-service-iot.eu
On these websites you will also find the latest versions of all
DLT-V83 documentation.
1
PACKING LIST
Before setting up the system, check that the items listed below are included and in good
condition. If any item does not accord with the table, please contact your dealer
immediately:
− DLT-V83 Industrial Computer
− Power cable (DC or AC variant)
− Cable cover (with or without integrated UPS battery pack)
− Cable sealing set including cable clips, grommets and fastening screws
− Product supplement like these instructions and possibly "OS End User License
Agreement" (depends on optional OS type)
13
Advertisement
Table of Contents
Related Manuals for Advantech DLT-V8310
Summarization of Contents
OVERVIEW OF IMPORTANT OPERATING ELEMENTS
Rear Side Overview
Details the rear side components, connectors, and mounting points of the DLT-V83.
Front Side - Resistive Touchscreen
Details the front side of the DLT-V83 with a resistive touchscreen, including keys, LEDs, and operation.
Front Side - PCT Touchscreen
Details the front side of the DLT-V83 with a PCT touchscreen, including keys, LEDs, and operation.
EXTERNAL CONNECTORS
DC Variant Connectors
Lists and describes external connectors for the DLT-V83 DC variant, including pin assignments.
Connectors Underneath Antenna
Lists connectors located beneath the antenna or protective cap, such as USB, CFast, and SIM slots.
CONFIGURATION (FRONT KEYS, RADIO)
General Settings Configuration
Covers basic factory settings for DLT-V83, including network and front-key assignments.
Radio Functionality Configuration
Explains factory preparations for radio functionality and directs users to further configuration details.
NOTES ON MECHANICAL MOUNTING
Recommended Mounting Sequence
Outlines the step-by-step procedure for mechanically mounting the DLT-V83 device to a subject or vehicle.
Device and Accessory Mount Attachment
Provides critical warnings and guidelines for attaching mounts to prevent damage to the DLT-V83.
NOTES ON ELECTRICAL INSTALLATION
DC Power Supply Unit Details
Details the specifications, voltage range, and fuses for the DC power supply unit of the DLT-V83.
AC Power Supply Unit Details
Details the specifications, nominal voltage, and connection for the AC power supply unit, specific to DLT-V8315.
CONNECT CABLES, SEAL CABLE PASSAGES
Required Components for Cable Sealing
Lists components like grommets, screws, and clips necessary for sealing cable passages on the DLT-V83.
Cable Connection and Sealing Procedure
Details the step-by-step process for connecting power, USB, Ethernet, COM cables and sealing passages on the DLT-V83.
ATTACHING THE CABLE COVER
Attaching Cable Cover (No UPS Battery)
Procedure for attaching the cable cover without a UPS battery to ensure proper sealing and protection class.
Attaching Cable Cover (With UPS Battery)
Procedure for attaching the cable cover with an integrated UPS battery, including safety precautions and connection steps.
