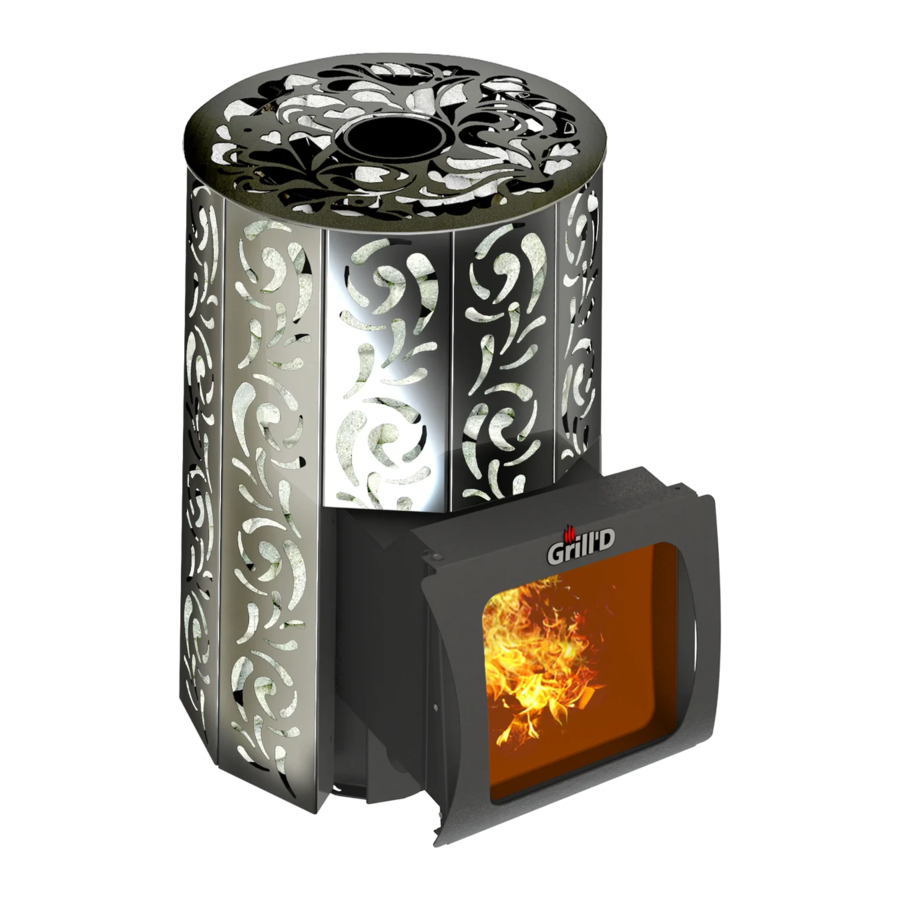

Grill'D Violet Long Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and
Operation Manual
Congratulations on your choice - the choice of high quality heaters.
Compliance with this Manual guarantees excellent
quality and maximum service life of the Grill'D
brand heaters.
Read the manual carefully before commencing
installation and operating the heater. Keep it for
future use.
Violet Short
Violet Steel Short
Violet World Short
Window Max
Violet Long
Violet Steel Long
Violet World Long
Window Max
Violet Short Window Max
Violet Steel Short
Window Max
Violet World Steel
Short Window Max
Violet Long Window Max
Violet Steel Long Window Max
Violet World Steel Long
Window Max

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Violet Long and is the answer not in the manual?

Questions and answers

Related Manuals for Grill'D Violet Long

Summary of Contents for Grill'D Violet Long

  • Page 1 Read the manual carefully before commencing installation and operating the heater. Keep it for future use. Violet Short Violet Long Violet Short Window Max Violet Long Window Max Violet Steel Short Violet Steel Long Violet Steel Short Violet Steel Long Window Max...

  • Page 2: Table Of Contents

    CONTENTS Technical data 1. GENERAL DATA 2. OPERATION MANUAL 2.1. Safety measures 2.2. Heater design and operation 2.3. Heater commissioning 2.4. Combustion material 2.5. Stones for stone heater 2.6. Heater operation 2.7. Water in the sauna 2.8. Technical maintenance 2.9. Typical faults and troubleshooting methods 3.

  • Page 4: General Data

    1. GENERAL DATA IMPORTANT! Carefully select the heater for the volume of the room. A heater with a small heating capacity will require a more intensive heating during a longer time, which will shorten its service life. Kindly note that: When selecting a heater, it is necessary to give consideration to the material of the walls and the ceiling of the room of installation.

  • Page 5: Heater Commissioning

    Firebox as well as other critical elements of the heater, is made of rolled steel of the required thickness that can withstand any estimated loads. High-alloyed corrosion-resistant steel is used for the above heater elements in Pro models. The effective design for heating up the stones and the steam room is due to numerous bends, heat-conducting structural elements, which increase the heat dissipation area.

  • Page 6: Combustion Material

    The preferable option for heating up is outdoors, away from combustible surfaces and mate- rials, in compliance with fire safety measures and safe work practices. Install a portion of chimney stacks vertically (about 2 meters), load 3-4 logs into the heater firebox and start up a fire.

  • Page 7: Heater Operation

    • Evenly fill in the heater lamellae, avoid blocking and formation of considerable voids. • For filling in the outer stone heater, please also use the stones included into the con- tents of delivery. • Fill in the inner compartment of the stone heater with stones up to no more than 70% of the volume.

  • Page 8: Water In The Sauna

    2.7. Water in the sauna The water poured onto the stones shall be clean tap water. Ensure the water quality. Water with a high content of iron, salt, humus, or lime can lead to early corrosion of the heater elements. For example, seawater will lead to rapid corrosion of the stone heater. The tap water quality shall meet the following requirements: humus content <12 mg/liter;...

  • Page 9: Typical Faults And Troubleshooting Methods

    ing through the ash drawer to cool the grate, thereby increasing its service life. If there is a thermal glass door, use soft cleaning waste with special agents for cleaning heat-resistant glass of fireplaces and heaters in accordance with the application instructions. Please, obey fire safety rules! 2.9.

  • Page 10: Installation Manual

    Possible cause: • Blockage in the chimney or flue channels of the heater. • The chimney height is not sufficient or the chimney is located next to a high obstacle. • There is cold air in the chimney; the chimney has not heated up. •...
  • Page 11 • Check the availability of all the heater component parts. Make sure that all the heater bolted connections are tightened. 3.1.1. Configuration of sauna ventilation 1) Self-ventilation (Figure 1): Air inlet (A) shall be located close to the floor next to the heater. Air inlet is necessary for fresh air supply to the sauna.

  • Page 12: Heater Installation

    Figure 3. Sauna floor protection min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm 3.1.3. Safety distances Figure 4, Table 2. (A) - Distance from the heater connection to the ceiling. (B) - Minimum safety distance to flammable materials on both sides of the heater, (C) - be- hind and (D) - in front of it.
  • Page 13 Figure 4. Safety distances If you plan to use a heater rack, for example, then take into account the height of the heater together with the rack when preparing the hole. Procedure: 1. Install the heater on the place of permanent operation. 2.
  • Page 14 Figure 5. Stone chimney connection Figure 6. Steel chimney connection...

  • Page 15: Warranty

    4. Install all the necessary components of the outside chimney. 5. Insert the connecting pipe into the outside chimney. 6. Connect the heater with the pipe inserted into the outside chimney. 7. Ensure that all the pipe connections and the heater connection are reliable. Note: when installing the chimney from the heater directly through the ceiling and roofing system, all the elements are installed consecutively.

  • Page 16: Appendix 1. Heater Dimensions

    APPENDIX 1. Heater dimensions Note: dimensions are in millimeters. Violet Short Violet Short Pro Violet Steel Short Violet Steel Short Pro ɸ115 765 ÷ 860 ɸ115 Violet Long Violet Long Pro Violet Steel Long Violet Steel Long Pro 160÷255...
  • Page 17 ɸ115 Violet Short Window Max Violet Short Window Max Pro Violet Steel Short Window Max Violet Steel Short Window Max Pro 780 ÷ 860 ɸ115 Violet Long Window Max Violet Long Window Max Pro Violet Steel Long Window Max Violet Steel Long Window Max Pro...
  • Page 18 ɸ115 Violet World Short Window Max Violet World Short Window Max Pro Violet World Steel Short Window Max Violet World Steel Short Window Max Pro 850 ÷ 945 ɸ115 Violet World Long Window Max Violet World Long Window Max Pro Violet World Steel Long Window Max Violet World Steel Long Window Max Pro 145÷240...

  • Page 19: Appendix 2. Heater Structural Elements

    APPENDIX 2. Heater structural elements Violet/Violet World 1 – Lamellae covering the stone heater 2 – Heater flue outlet connection 3 – Heating flue 4 – Ash drawer 5 – Thermal glass door Short/Long 6 – Thermal glass door Window Max 7 –...

  • Page 20: Appendix 3. Internal Design And Operation Of Heaters

    APPENDIX 3. Internal design and operation of heaters Violet World series Violet series...

  • Page 21: Appendix 4. Heater Parts Installation

    APPENDIX 4. Heater parts installation IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the possibility of damage to the paint coating. Grate The grate consists of 6 separate plates. A separate seat is provided for each plate. Ash drawer Place of installation and installation method for the ash drawer are shown in the figure.
  • Page 22 Telescopic heating flue Note: correct installation of the telescopic part of the heating flue precludes air inflow through the gap between flue parts, which allows maintaining the process of burning within the prescribed limits. Procedure: 1) Unscrew the transport self-tapping screws in the upper part of the heating flue, take its telescopic part out.
  • Page 23 Telescopic part Sealant Fixed part sealant shall notcrumble and crack. Surface treatment, application, subsequent cleaning of surfaces should be carried out in accordance with the sealant application instruction. Procedure: 5.1) Apply the sealant from the rim side of the telescopic side along the whole length. 5.2) Fill the gap between the telescopic and fixed parts with the sealant while compacting the sealant with an elastic applicator (for example, a rubber one) of a necessary size.
  • Page 24 Window Max door The firebox door can be mounted in such ways that it will open either to the right, or to the left. To do so, you need to pull out the metal pin, which attaches the door, and carefully remove the metal spacer installed under the door.
  • Page 25 Shielding lid The shielding lid is both a decorative and a protective element; it consists of two parts. It is necessary to unscrew the four screws with a hex key (included) in order to remove both parts of the lid. Fill funnel The shielding lid needs to be removed in order to access to the funnels.

  • Page 26: Appendix 5. Scope Of Supply

    APPENDIX 5. Delivery packages...
  • Page 27 Notes...
  • Page 28 QCD mark: _________________________________________________________________ (Name, signature, stamp) Date of sale: ________________________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this manual: ________________________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
