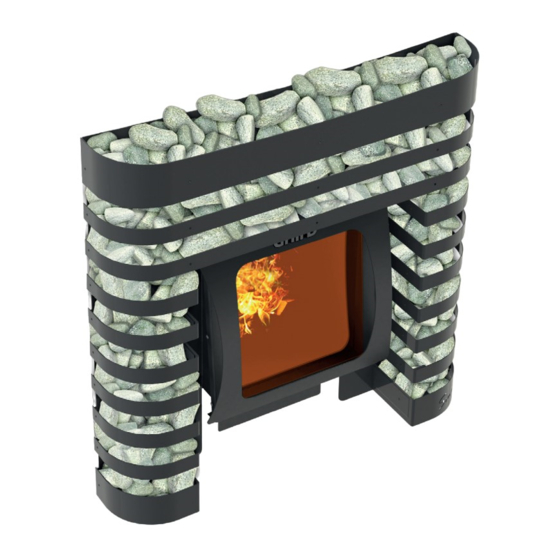

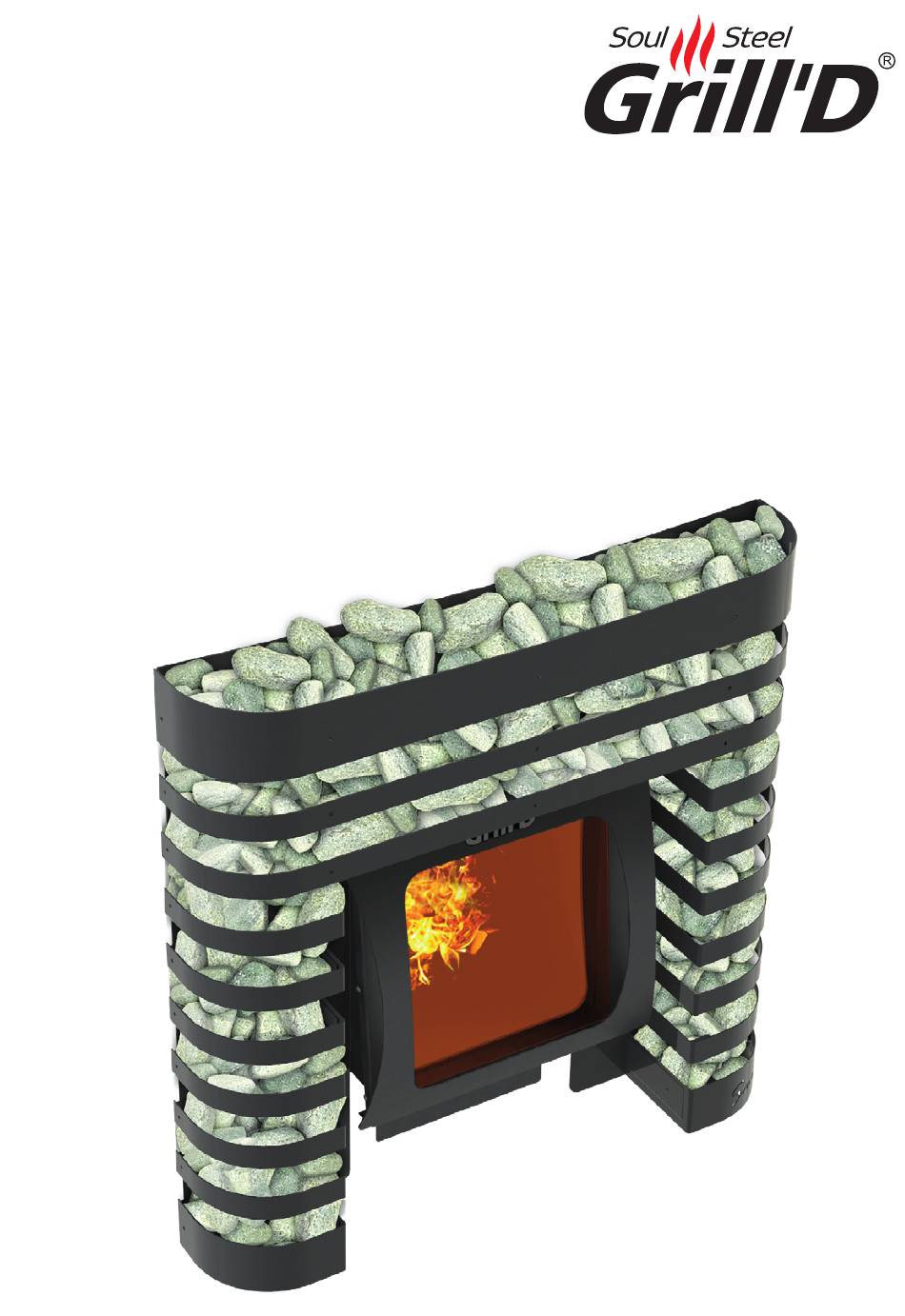

- Page 1 Assembly and installation manual Air Max decorative screen Read this manual carefully before commencing assembly and installation. Air Max decorative screen...
-
Page 2: Technical Data
1. APPLICATION Decorative screen is designed to frame the combustion channel and the door of Grill’D brand bathhouse heaters. It complements aesthetic appearance of the heater, and the premise of its installation as a whole. It is indispensable for implementation of design solutions in bathhouse complexes. After installation, the screen can be filled with non-combustible, waterproof decorative material, for example, bath and sauna stone (talcum peach, dolerite, etc.). - Page 3 4. DELIVERY PACKAGE, ASSEMBLY AND INSTALLATION 4.1 Delivery package Type Name Contents of delivery Ready-assembled 1 pce Air decorative screen 4.2 Assembly and installation procedure IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the possibility of damage to the paint coating. 1) Take the telescopic part of the heating flue out.
- Page 4 2) Install the heater and the screen on the place of permanent operation. The screen shall rest on the floor or on the support in such a way, that the heater legs and the bottom surface of the screen lie in the same plane.
- Page 5 4) Fasten the screen to the wall through the holes with the help of fastening elements (for example, self- tapping screws, bolts, etc., not included into delivery package). 5) Fill it with a non- combustible water- resistant decorative material, for example, bathhouse and sauna stone (talcum peach, dolerite, etc.).
-
Page 6: Warranty
5. WARRANTY The warranty period for the Product is 1 year. The warranty is valid from the date of purchase of the Product by the Consumer. If the Consumer detects a non- compliance of the Product with the specified properties, the Consumer has the right to address a claim to the Company that sold the Product. - Page 7 Notes...
- Page 8 QCD mark: ______________________________________________________ (Name, signature, stamp) Date of sale: _____________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this manual: ____________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
