Operation Manual
for Grill'D heaters
Congratulations on your choice - the choice of high duty heaters!
Compliance with this Manual guarantees excellent quality and maximum
service life of the Grill'D brand stone heaters.
Read the heater and water tank Manual carefully before commencing
installation and operating the stone heater.

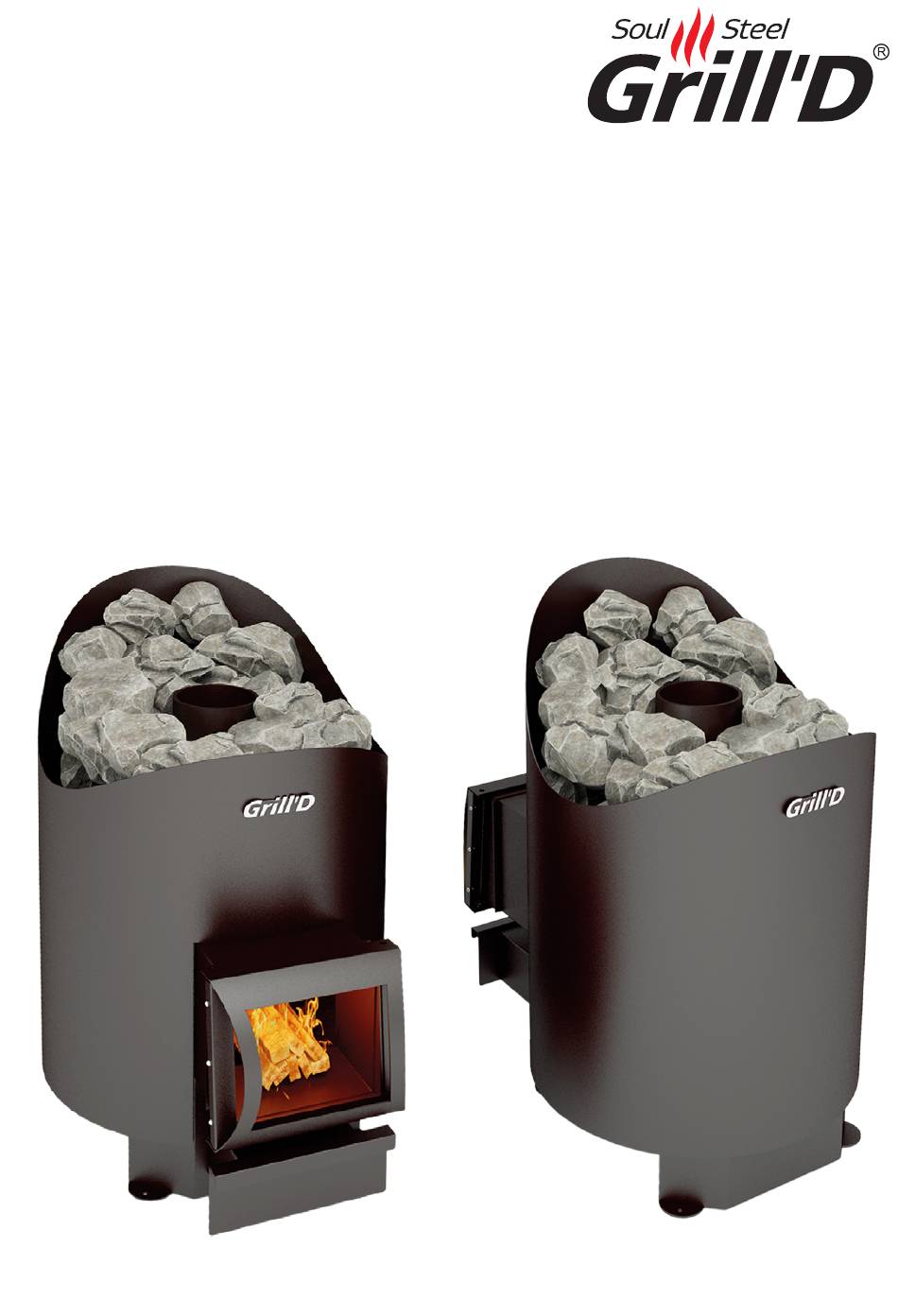

Aurora 180 Short
Aurora 180 Long

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora 180 Short and is the answer not in the manual?

Questions and answers

Related Manuals for Grill'D Aurora 180 Short

Summary of Contents for Grill'D Aurora 180 Short

  • Page 1 Congratulations on your choice - the choice of high duty heaters! Compliance with this Manual guarantees excellent quality and maximum service life of the Grill’D brand stone heaters. Read the heater and water tank Manual carefully before commencing installation and operating the stone heater. Aurora 180 Short Aurora 180 Long...
  • Page 2 � � Fig. 1 Dimensions of heater Grill’D Aurora 180 Short...
  • Page 3 � � Fig. 1 Dimensions of heater Grill’D Aurora 180 Long...

  • Page 4: Table Of Contents

    CONTENTS Name page APPLICATION TECHNICAL DATA HEATER DESIGN HEATER OPERATION HEATER PARTS INSTALLATION WARRANTY COMMISSIONING HEATER OPERATING PROCEDURE SAFETY MEASURES TYPICAL FAULTS AND TROUBLESHOOTING METHODS MAINTENANCE LABELING AND PACKING TRANSPORTATION AND STORAGE DISPOSAL SCOPE OF SUPPLY 1. APPLICATION Grill’D brand wood-fired heater is designed to heat a steam room and adjacent premises of a bath house, as well as to generate steam and heat water.

  • Page 5: Heater Design

    Table 1. Technical data Aurora 180 Aurora 180 Model Short Long Steam room volume (m From 8 to 18 Outlet connection diameter (mm) Mass of stones (max, kg) Stone diameter (mm) from 70 to 150 Width (mm) Height (mm) Depth (mm) Mass (kg) Maximum firewood length (mm) Minimum chimney height (mm)
  • Page 6 All heaters can be optionally equipped with special reinforcing devices (refer to Figure 8) that enhance combustion and additionally protect the heater firebox from destruction due to exposure to high temperature. The devices have ducts for supplying additional combustion air, and when it enters the firebox, the air passes partially above the fire into its upper part,...

  • Page 7: Heater Operation

    4. HEATER OPERATION It is necessary to operate the Grill’D heater in active combustion mode to set the temperature and during firing up. The principle heater operating time shall be in conservative mode. The door opening angle is sufficient for convenient loading of fuel and allows visual monitoring of the burning process due to the availability of the thermal glass.
  • Page 8 Fig. 7 Fig. 6 5.2. Door It is necessary to perform the following actions to install the door (refer to Figure 6): 1) Choose the door opening direction and mount the door onto the seat; 2) Fix it in this position via the metal pin. 5.3.

  • Page 9: Warranty

    6. WARRANTY The warranty period for the Product is 5 years, it applies to the integrity of weld joints. The warranty period for the entire Product is 1 year. The warranty is valid from the date of purchase of the Product by the Consumer. The Product service life is not less than 10 years*.
  • Page 10 Compound for metal protection and volatile components of the heat- resistant enamel evaporate as a result of stoking. Note: Heat-resistant enamel can change tone on the most thermally loaded elements of the heater, which is not a manufacturing defect. IMPORTANT! Avoid the chance of mechanical impact and ingress of water on the paint coating of the heater during preparatory stoking.

  • Page 11: Heater Operating Procedure

    8. HEATER OPERATING PROCEDURE 1) Prior to every firing of the heater proceed as follows: - Make sure that there is draft in the chimney. - Make sure that there are no foreign objects, combustion Product residue from previous stoking in the heater firebox, ash drawer, or in the chimney. - As required, remove all unnecessary and foreign objects from the firebox and chimney;...

  • Page 12: Safety Measures

    6) The heater operation may be terminated after the entire load of firewood burns up. To do so, wait for the complete cooldown of the heater, remove ash from the firebox to the ash drawer, and then clean the ash box. 7) Drain the water from the integrated tank.

  • Page 13: Maintenance

    Possible cause: The heater was selected incorrectly and (or) thermal insulation of the room is not in compliance with the requirements. Troubleshooting: Select a heater of a greater capacity. Insulate the room in accordance with SNiP 23-02-2003. 3) Fault: Burnout of the firebox walls and (or) of the grate plates. Possible cause: Unrecommended fuel was used, and (or) the heater was operated in the intensive combustion mode after firing and development of a stable draft.

  • Page 14: Labeling And Packing

    Note: For information on the water tank maintenance, refer to the Operation Manual for the water tank. IMPORTANT! Carry out maintenance works on the heater and chimney only after their complete cooldown. The heater and chimney shall be cleaned of soot before the commencement of the heating season, as well as during the entire heating season at least once every three months.

  • Page 15: Disposal

    IMPORTANT: The air of the storage room shall not contain impurities of corrosive substances. Shelf life in original packaging until re-preservation is 12 months. 14. DISPOSAL The Product does not contain any harmful, hazardous, toxic substances, and thus does not pose hazard to human life and health, and to the environment, so it can be disposed of according to the rules for general industrial waste disposal.
  • Page 16 QCD mark: _____________________________________________________________ (Name, signature, stamp) Date of sale: ____________________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this Operation Manual: ________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.

This manual is also suitable for:

Aurora 180 long

Table of Contents
