Installation and
Operation Manual
Congratulations on your choice - the choice of high quality heaters.
Compliance with this Manual guarantees
excellent quality and maximum service
life of the Grill'D brand heaters.

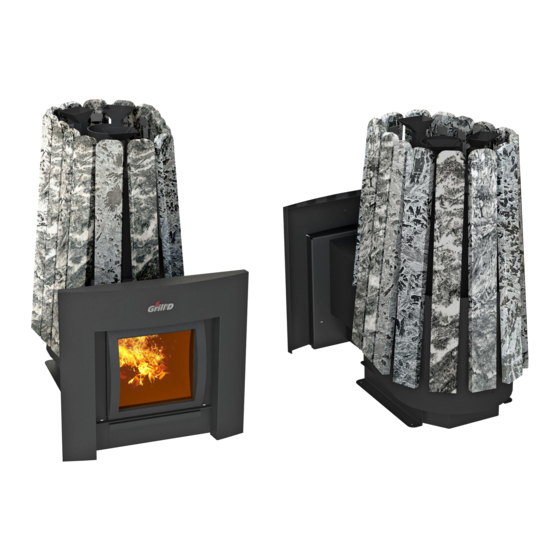

Cometa 180 Vega Short
Cometa 180 Vega
Cometa 180 Vega Long Stone
Short Stone
Cometa 180 Vega
Short Window Max
Cometa 350 Vega
Window Max
Cometa 180 Vega Long
Cometa 180 Vega
Long Window Max
Cometa 350 Vega
Window Max Stone
Read the manual carefully before
commencing installation and operating
the heater. Keep it for future use.
Cometa 180 Vega Window
Cometa 180 Vega Window Stone
Cometa 180 Vega Short
Window Max Stone
Cometa 350 Vega
Short Window Max
Cometa 180 Vega Long
Window Max Stone
Cometa 350 Vega Short
Window Max Stone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cometa Vega Series and is the answer not in the manual?

Questions and answers

Related Manuals for Grill'D Cometa Vega Series

Summary of Contents for Grill'D Cometa Vega Series

  • Page 1 Installation and Operation Manual Congratulations on your choice - the choice of high quality heaters. Read the manual carefully before Compliance with this Manual guarantees commencing installation and operating excellent quality and maximum service the heater. Keep it for future use. life of the Grill’D brand heaters.

  • Page 2: Table Of Contents

    CONTENTS Technical data GENERAL DATA OPERATION MANUAL 2.1. Safety measures 2.2. Heater design and operation 2.3. Heater commissioning 2.4. Combustion material 2.5. Stones for stone heater 2.6. Heater operation 2.7. Water in the sauna 2.8. Technical maintenance 2.9. Typical faults and troubleshooting methods INSTALLATION MANUAL 3.1.

  • Page 7: General Data

    1. GENERAL DATA IMPORTANT! Carefully select the heater for the volume of the room. A heater with a small heating capacity will require a more intensive heating during a longer time, which will shorten its service life. Kindly note that: When selecting a heater, it is necessary to give consideration to the material of the walls and the ceiling of the room of installation.

  • Page 8: Heater Commissioning

    Cometa Vega series Removable lid allows accessing to the inner compartment of the stone heater and also serves as a steam restricting device. Water is supplied to the inner compartment of the stone heater through funnels.

  • Page 9: Combustion Material

    Install a portion of chimney stacks vertically (about 2 meters), load 3-4 logs into the heater firebox and start up a fire. Slightly open the ash drawer to ensure sufficient draft (adjust the gap to be within 50 mm). Once the firewood begins to burn and stable draft develops, partly close the ash drawer (adjust the gap to be within 10 mm).

  • Page 10: Heater Operation

    ₋ closely laid stones prevent convection and provide maximum protection from infrared radiation. • Fill in the inner compartment of the stone heater with stones up to no more than 70% of the volume. • Do not obstruct or shut off the nozzle located on the lid of the inner compartment of the stone heater, while laying stones into outer or inner compartments of the stone heater IMPORTANT! It is prohibited to use halite to fill stone heaters.

  • Page 11: Technical Maintenance

    elements. For example, seawater will lead to rapid corrosion of the stone heater. The tap water quality shall meet the following requirements: humus content <12 mg/liter; ‒ iron content <0.2 mg/liter; ‒ calcium content <100 mg/liter; ‒ manganese content <0.05 mg/liter. ‒...

  • Page 12: Typical Faults And Troubleshooting Methods

    2.9. Typical faults and troubleshooting methods 1) Fault: Odors appear during the heater operation. Possible cause: • There is leftover industrial oil on the heater surface, or/and the odor comes from heat- resistant enamel. • When heating up, the heater can enhance the odors present in the air, even if their source is not the sauna itself or the sauna heater.

  • Page 13: Installation Manual

    • Low quality or wet combustion material. • The chimney is installed incorrectly. Troubleshooting methods: • Perform maintenance (paragraph 2.8). • Extend the chimney stack height. • Insulate the chimney stack with a non-combustible heat-insulation material. • Select a heat-insulated chimney stack. •...
  • Page 14 Air inlet (A) shall be located close to the floor next to the heater. Air inlet is necessary for fresh air supply to the sauna. Exhaust outlet (B) shall be located under the ceiling as far as possible from the heater. The primary purpose of exhaust outlet is to remove moisture from the sauna after steam bathing.
  • Page 15 Figure 3. Sauna floor protection min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm min 60 mm (B) - Minimum safety distance to flammable materials on both sides of the heater, (C) - be- hind and (D) - in front of it.

  • Page 16: Heater Installation

    3.2. Heater installation IMPORTANT! Ensure proper floor levelling for the heater installation; possible slants of the heater and the chimney are precluded. 3.2.1. Stone chimney connection The diameter of hole for connection to the chimney stack shall be about 20 mm larger than the diameter of the heating flue outlet pipe, so the optimum clearance around the pipe is about 10 mm.
  • Page 17 Figure 5. Stone chimney connection Figure 6. Steel chimney connection...

  • Page 18: Warranty

    6. Connect the heater with the pipe inserted into the outside chimney. 7. Ensure that all the pipe connections and the heater connection are reliable. Note: when installing the chimney from the heater directly through the ceiling and roofing system, all the elements are installed consecutively. Note: when applying additional vertical load on the heater structure, such as: installing an additional volume of stones, installing a chimney, installing a water tank, etc., the maximum permissible load shall be considered.

  • Page 19: Appendix 1. Heater Dimensions

    Grill'D Cometa 180 Vega short APPENDIX 1. Heater dimensions Note: dimensions are in millimeters. ɸ115 Cometa 180 Vega Short Cometa 180 Vega Short Pro 780 ÷ 885 ÷ ɸ115 Cometa 180 Vega Long Cometa 180 Vega Long Pro 130÷235...
  • Page 20 Grill'D Cometa 180 Vega window ɸ115 Cometa 180 Vega Window Cometa 180 Vega Window Pro ɸ115 Cometa 180 Vega Short Stone Cometa 180 Vega Short Stone Pro...
  • Page 21 780 ÷ 885 ÷ ɸ115 Cometa 180 Vega Long Stone Cometa 180 Vega Long Stone Pro 130÷235 ɸ115 Cometa 180 Vega Window Stone Cometa 180 Vega Window Stone Pro...
  • Page 22 ɸ115 Cometa 180 Vega Short Window Max Cometa 180 Vega Short Window Max Pro 780 ÷ 875 780-875 ɸ115 Cometa 180 Vega Long Window Max Cometa 180 Vega Long Window Max Pro 145÷240...
  • Page 23 ɸ115 Cometa 180 Vega Short Window Max Stone Cometa 180 Vega Short Window Max Stone Pro 785 ÷ 880 785-880 ɸ115 Cometa 180 Vega Long Window Max Stone Cometa 180 Vega Long Window Max Stone Pro 140÷235...
  • Page 24 1060 1060 1060 ɸ130 Cometa 350 Vega Window Max Cometa 350 Vega Window Max Pro 1065 1065 ɸ130 Cometa 350 Vega Window Max Stone Cometa 350 Vega Window Max Stone Pro...
  • Page 25 ɸ130 Cometa 350 Vega Short Window Max Cometa 350 Vega Short Window Max Pro ɸ130 Cometa 350 Vega Short Window Max Stone Cometa 350 Vega Short Window Max Stone Pro...

  • Page 26: Appendix 2. Heater Structural Elements

    APPENDIX 2. Heater structural elements Cometa Vega 1 – Steel lamellae 2 – Stone lamellae 3 – Heater flue outlet connection 4 – Heating flue 5 – Ash drawer 6 – Thermal glass door Short/Long 7 – Thermal glass door Window 8 –...

  • Page 27: Appendix 3. Internal Design And Operation Of Heaters

    APPENDIX 3. Internal design and operation of heaters Cometa 180 Vega series Cometa 350 Vega series...

  • Page 28: Appendix 4. Heater Parts Installation

    APPENDIX 4. Heater parts installation IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the possibility of damage to the paint coating. Grate The grate consists of 6 separate plates. A separate seat is provided for each plate. Ash drawer Place of installation and installation method for the ash drawer are shown in the figure.
  • Page 29 Cometa 350 Vega series Decorative screen Stone (assembly procedure) Delivery package 5х 5х 2х 2х 1х 1х 5х 5х 2х 2х 1х 1х...
  • Page 30 Assembly procedure 2х 2х 5х 5х...
  • Page 31 Decorative screen / decorative screen Stone (assembly procedure) Note: install the screen only after installation of the heater on the place of permanent opera- tion. Procedure: 1) Match the mounting holes on the screen and on the heating flue frame; 2) Fix the screen with the self-tapping screws (included into the contents of delivery).
  • Page 32 Procedure: 1) Unscrew the transport self-tapping screws in the upper part of the heating flue, take its telescopic part out. 2) Install the heater on the place of permanent operation. 3) Insert the telescopic part to the necessary depth, while keeping the telescopic part at least 50 mm inside the fixed part.
  • Page 33 Short/Long door The firebox door can be mounted in such ways that it will open either to the right, or to the left. To do so, you need to pull out the metal pin, which attaches the door, and carefully remove the metal spacer installed under the door.
  • Page 34 Door Window Note: carry out the installation after installing the decorative screen. The firebox door can be mounted in such ways that it will open either to the right, or to the left. Procedure: 1) Select the door mounting side and, depending on this, insert the upper part of the metal pin into the upper mounting hole of the door.
  • Page 35 Cometa 180 Stone heater lid Vega series The lid position is adjusted via two mounting screws with pockets for the hex key (included). To load the stones, take off the lid by removing the screws. For heater operation in fine steam mode the lid shall be tight against wall of the stone heater with no gap.
  • Page 36 Set of Stone facing for Vega Short/Long versions for models as follows: Cometa 180 Vega Short Cometa 180 Vega Short Stone Cometa 180 Vega Long Cometa 180 Vega Long Stone Delivery Position package of type A and B lamellae 2х 2х...
  • Page 37 Assembly procedure for type B facing В В В В В В 11х 11х 11х 11х 11х 11х Scheme for lamellae fastening onto the heater...
  • Page 38 Комплект облицовки Stone for Vega Window и Short/Long Window Max для моделей: Cometa 180 Vega Window Cometa 180 Vega Long Window Max Cometa 180 Vega Window Stone Cometa 180 Vega Short Window Max Stone Cometa 180 Vega Short Window Max Cometa 180 Vega Long Window Max Stone Delivery Position...
  • Page 39 Assembly procedure for type B facing В В В В В В 10х 10х 10х 10х 10х 10х Scheme for lamellae fastening onto the heater...
  • Page 40 Set of Stone facing for 350 Vega Window Max version for models as follows Cometa 350 Vega Window Max Cometa 350 Vega Short Window Max Cometa 350 Vega Window Max Stone Cometa 350 Vega Short Window Max Stone Delivery Position package of type A and B lamellae...
  • Page 41 Assembly procedure for type B facing В В В В В В 12х 12х 12х 12х 12х 12х Scheme for lamellae fastening onto the heater...

  • Page 42: Appendix 5. Scope Of Supply

    APPENDIX 5. Delivery packages...
  • Page 44 QCD mark: _________________________________________________________________ (Name, signature, stamp) Date of sale: ________________________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this manual: ________________________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
