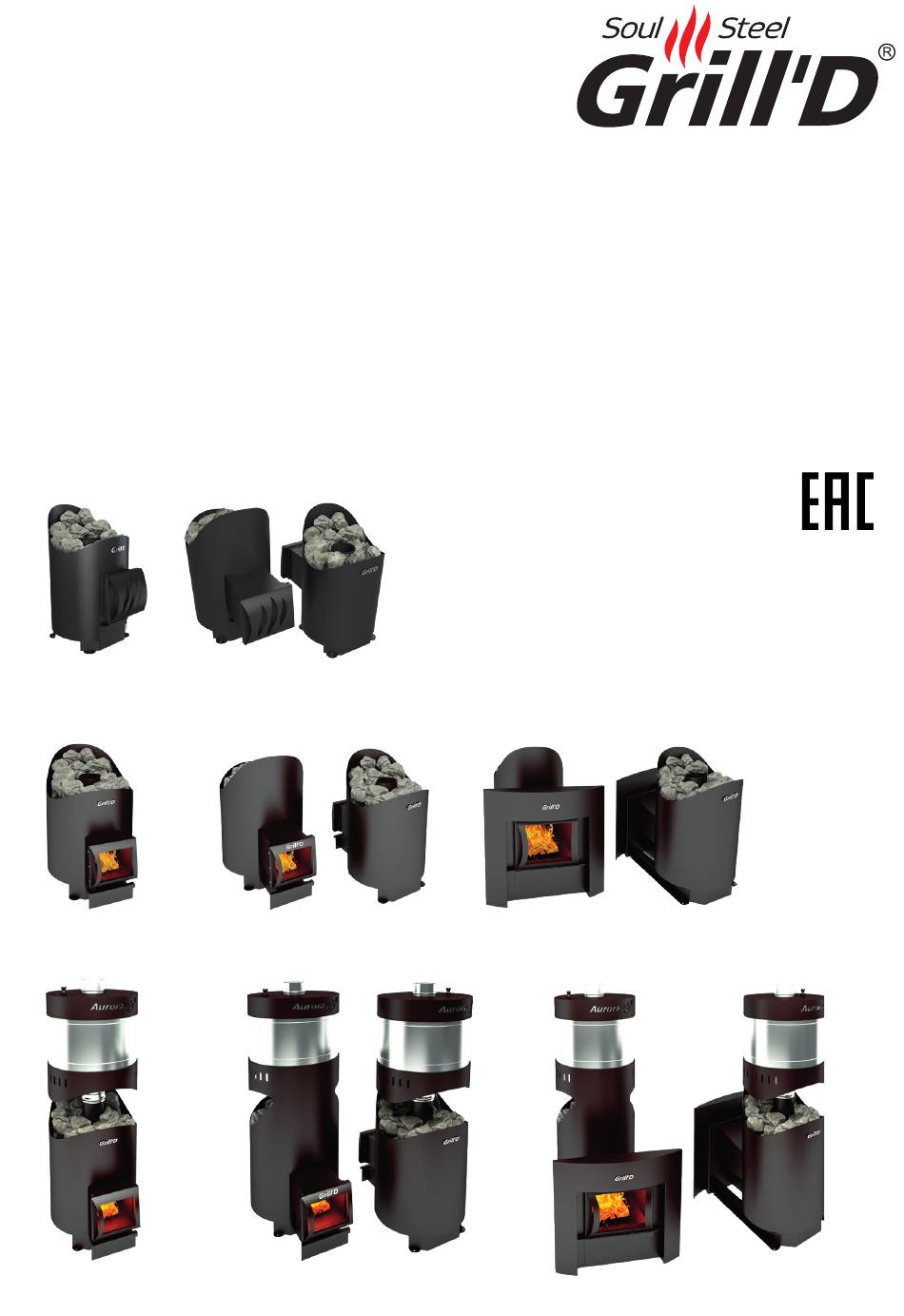

Installation and
Operation Manual
Congratulations on your choice - the choice of high quality heaters.
Compliance with this Manual guarantees
excellent quality and maximum service
life of the Grill'D brand heaters.

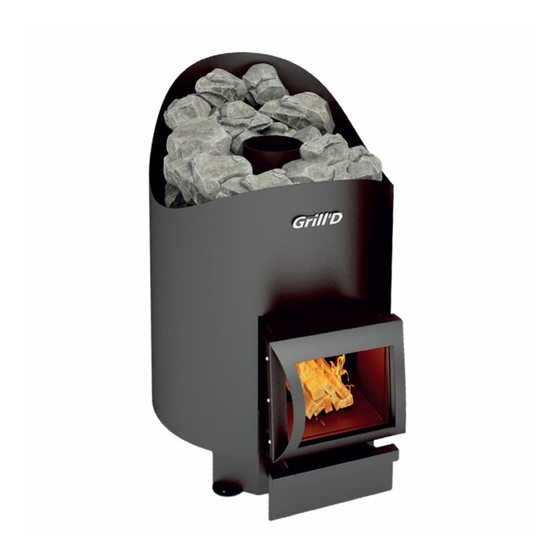

Aurora mini Short
Aurora 160/180 Short
Aurora 160 TRIO Short
Aurora mini Long
Aurora 160/180 Long
Aurora 160 TRIO Long
Read the manual carefully before
commencing installation and operating
the heater. Keep it for future use.
Aurora 160/180 Window
Aurora 160 TRIO Window
Advertisement
Table of Contents
Related Manuals for Grill'D Aurora Series
Summary of Contents for Grill'D Aurora Series
- Page 1 Installation and Operation Manual Congratulations on your choice - the choice of high quality heaters. Read the manual carefully before Compliance with this Manual guarantees commencing installation and operating excellent quality and maximum service the heater. Keep it for future use. life of the Grill’D brand heaters.
-
Page 2: Table Of Contents
CONTENTS Technical data GENERAL DATA OPERATION MANUAL 2.1. Safety measures 2.2. Heater design and operation 2.3. Heater commissioning 2.4. Combustion material 2.5. Stones for stone heater 2.6. Heater operation 2.7. Water in the sauna 2.8. Technical maintenance 2.9. Typical faults and troubleshooting methods INSTALLATION MANUAL 3.1. -
Page 4: General Data
1. GENERAL DATA IMPORTANT! Carefully select the heater for the volume of the room. A heater with a small heating capacity will require a more intensive heating during a longer time, which will shorten its service life. Kindly note that: When selecting a heater, it is necessary to give consideration to the material of the walls and the ceiling of the room of installation. -
Page 5: Heater Commissioning
Firebox as well as other critical elements of the heater is made of rolled steel of the re- quired thickness that can withstand any design loads. High-alloyed corrosion-resistant steel is used for the above heater elements in Pro models. The effective design for heating up the stones and the steam room is due to numerous bends, heat-conducting structural elements, which increase the heat dissipation area. -
Page 6: Combustion Material
IMPORTANT! Do not heat up the heater at constant excessive draft which can lead to heating of the firebox red hot, as this will reduce its service life. Control the draft by adjusting the ash drawer gap. IMPORTANT! Install the heater on the place of permanent operation only after com- plete cooldown. -
Page 7: Water In The Sauna
1. Remove all unnecessary and foreign objects from the firebox and chimney, remove ash from the ash box. 2. Put 3-4 logs on the grate in such a way as to ensure free access of air to the combustion area, namely: lay the firewood loosely, adjust the ash drawer gap to be within 50 mm 3. -
Page 8: Technical Maintenance
2.8. Maintenance Routine maintenance of the chimney, heater and its parts is the key to their efficient and safe operation, your safety and safety of your close ones! IMPORTANT! Carry out maintenance works on the heater and chimney only after their complete cooldown. - Page 9 2) Fault: The sauna room is not heating up. Possible cause: • The sauna room is too large for the heating capacity of the heater. • Thermal insulation of the room is not in compliance with the requirements. • Insufficient chimney draft. •...
-
Page 10: Installation Manual
Figure 1. Self-ventilation � � А А 50-100 50-100 Естественная вентиляция Естественная вентиляция 3. INSTALLATION MANUAL 3.1. Before commencing installation of the heater IMPORTANT! Make sure that all safety distances around the heater are observed. There shall be no electrical appliances, cables, meltable and flammable materials within the safety distances. - Page 11 • For more information about fire safety requirements, please, address the local fire depart- ment. • Check the availability of all the heater component parts. Make sure that all the heater bolted connections are tightened. 3.1.1. Configuration of sauna ventilation 1) Self-ventilation (Figure 1): Air inlet (A) shall be located close to the floor next to the heater.
-
Page 12: Heater Installation
You can use special racks to protect the floor under the heater or arrange an understruc- ture rack consisting of layers of heat-insulating, non-combustible, heat-reflecting materials of sufficient thickness. In case the floor in front of the heater door is made of combustible material, it is necessary to install floor protection made of non-combustible material. - Page 13 If the designed pipe inlet to the stone chimney is at 90°, it is recommended to make the inner edges of the chimney stack bore round (Figure 5) in order to reduce the resistance for flue gas passage. If you plan to use a heater rack, for example, then take into account the height of the heater together with the rack when preparing the hole.
- Page 14 Figure 5. Stone chimney connection Figure 6. Steel chimney connection...
-
Page 15: Warranty
Use special unloading support platforms to reduce load, when installing a steel chimney. The mass of the vertical part of the chimney supported by the heater, shall not be greater than the maximum permissible one. Further, you need to install an unloading support platform and using it, continue the chimney installation. -
Page 16: Appendix 1. Heater Dimensions
APPENDIX 1. Heater dimensions Note: dimensions are in millimeters. ɸ115 Aurora mini Short Aurora mini Long... - Page 17 ɸ115 Aurora 160 Short Aurora 160 Long...
- Page 18 Aurora 160 Window...
- Page 19 ɸ115 Aurora 160 TRIO Short...
- Page 20 Aurora 160 TRIO Long...
- Page 21 Aurora 160 TRIO Window...
- Page 22 ɸ115 Aurora 180 Short ɸ115 Aurora 180 Long...
- Page 23 ɸ115 Aurora 180 Window...
-
Page 24: Appendix 2. Heater Structural Elements
APPENDIX 2. Heater structural elements Aurora 1 – Protective shield 2 – Heater flue outlet connection 3 – Heating flue 4 – Ash drawer 5 – Steel door mini 6 – Thermal glass door Short/Long 7 – Thermal glass door Window 8 –... -
Page 25: Appendix 3. Internal Design And Operation Of Heaters
APPENDIX 3. Internal design and operation of heaters Aurora 160, Aurora mini series Aurora 160 TRIO series Aurora 180 series... -
Page 26: Appendix 4. Heater Parts Installation
APPENDIX 4. Heater parts installation IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the possibility of damage to the paint coating. Grate The grate consists of 6 separate plates. A separate seat is provided for each plate. Ash drawer Place of installation and installation method for the ash drawer are shown in the figure. - Page 27 Decorative screen Note: install the screen only after installation of the heater on the place of permanent opera- tion. Procedure: 1) Match the mounting holes on the screen and on the heating flue frame; 2) Fix the screen with the self-tapping screws (included into the contents of delivery). Door mini and Short/Long The firebox door can be mounted in such ways that it...
- Page 28 Figure 7 Door Window Note: carry out the installation after installing the decorative screen. The firebox door can be mounted in such ways that it will open either to the right, or to the left. Procedure: 1) Select the door mounting side and, depending on this, insert the upper part of the metal pin into the upper mounting hole of the door.
-
Page 29: Appendix 5. Scope Of Supply
APPENDIX 5. Delivery packages... - Page 30 Notes...
- Page 31 Notes...
- Page 32 QCD mark: _________________________________________________________________ (Name, signature, stamp) Date of sale: ________________________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this manual: ________________________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
