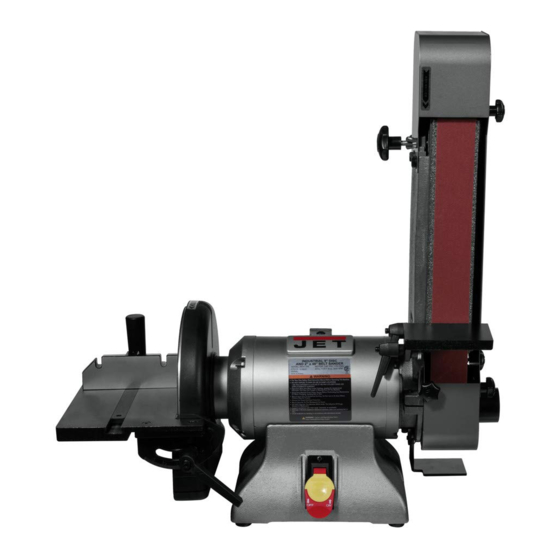

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Benchtop Belt and Disc Sanders Models IBDG-248/248VS/436/436VS IBDG-248 shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-578842 Ph.: 800-274-6848 Edition 1 01/2020 www.jettools.com Copyright © 2020 JET...
-
Page 2: Important Safety Instructions
18. Keep visitors a safe distance from the work Do not use this machine for other than its area. Keep children away. intended use. If used for other purposes, JET disclaims any real or implied warranty and holds 19. Make your workshop child proof with padlocks, itself harmless from any injury that may result master switches or by removing starter keys. -
Page 3: Specific Rules For Abrasive Sanding Machines
28. Keep work area clean. Cluttered areas and is not operating accurately and smoothly, benches invite accidents. immediately stop the motor and make repairs before attempting sanding operations. 29. Use the right tool. Don't force tool or attachment to do a job for which it was not designed. 10. -
Page 4: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Table Of Contents
12.2 Digital readout error codes (Variable speed models) ................19 13.0 Replacement Parts ............................. 19 13.1.1 IBDG-248 Belt/Disc Sander – Exploded View ..................20 13.1.2 IBDG-248 Belt/Disc Sander – Parts List ....................21 13.2.1 IBDG-248VS Belt/Disc Sander – Exploded View ................23 ... -
Page 6: Specifications
4.0 Specifications Table 1 Stock number 578842 577842 578634 577634 Model number IBDG-248 IBDG-248VS IBDG-436 IBDG-436VS Motor and Electricals totally enclosed, totally enclosed, totally enclosed, totally enclosed, induction, induction, Type induction, induction, capacitor start capacitor start with inverter with inverter... -
Page 7: Mounting Hole Dimensions
= not applicable The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Machine Dimensions/Work Area
4.2 Machine dimensions/work area Primary dimensions in millimeters. (Parentheses show imperial dimensions.) Figure 4-2: dimensions for IBGB-248/-248VS Figure 4-3: dimensions for IBGB-436/-436VS... -
Page 9: Carton Contents
5.0 Carton contents Included accessories are shown on this page. The identifying letters are used in the assembly instructions. Qty. Belt Sanding Table Hex (“Allen”) Wrench 6mm Hardware package Part no. IBGB248-HP or IBGB436-HP Qty. Tool rest (for sanding belt) Flat washer 3/8 Adjustable handle 3/8 x 5/8L Stand-off... -
Page 10: Setup And Assembly
(Check whether any parts have been pre-mounted to the grinder.) Notify your dealer or JET if missing or damaged items are discovered. Do not discard packing material until grinder is assembled and Figure 6-1: sanding belt table operating properly. -
Page 11: Sanding Tool Rest
Insert the miter gauge bar into the end of the disc provided). An accessory hose kit is available from table slot. Loosen handle to rotate gauge to desired JET; see sect. 11.0. angle shown on scale. Always tighten handle before operating. -
Page 12: Grounding Instructions
permanent ground such as a properly grounded outlet box. It is recommended that the sander be connected to a minimum 15-amp circuit with circuit breaker or fuse. If using fuses, they should be time-delay fuses marked “D”. Local codes take precedence over recommendations. -
Page 13: Voltage Conversion
The belt/disc sander is prewired for 115 volt input power, but can be converted to 230 volt input, as follows. 7.3.1 Non-variable speed models (IBDG-248 and IBDG-436) Turn sander over and remove base plate. Reconnect the leads according to wiring diagram in sect. 14.0. Reinstall base plate. -
Page 14: Operating Controls
Note: After extended operation, the grinder housing may be warm to the touch. This is not abnormal. IBDG-248, IBDG-436: Pull paddle switch (A, Figure 9-2) to start tool, push to stop. The safety key (A can be removed to prevent unauthorized use of the grinder. -
Page 15: User-Maintenance
10.0 User-maintenance For safety, turn switch to OFF and remove plug from power source outlet before performing maintenance on the grinder/sander. If the power cord is worn, cut or damaged in any way, have it replaced immediately. 10.1 Cleaning Metal shavings may still be hot from recent sanding operations. -
Page 16: Optional Accessories
11.0 Optional accessories These accessory items, purchased separately, are available for your JET belt/disc sander. Contact your dealer to order, or call JET at the phone number on the cover. Flexible 3W LED Lamp (includes two Deluxe IBG 1/4" x 3/8” mounting... -
Page 17: Troubleshooting Ibdg Series Belt/Disc Sander
Motor fails to develop Low line voltage. Check power line for proper voltage. full power. Faulty motor or capacitor. Contact JET technical service. Motor overheats. Motor overloaded. Reduce pressure against wheel or platen. Make sure grit size is appropriate for the job. - Page 18 Symptom Possible Cause Correction Motor stalls (cont.) Short circuit in motor or loose Inspect connections on motor for loose or connections. shorted terminals or worn insulation. Low voltage. Correct the low voltage conditions. Incorrect fuses or circuit breakers in Install correct fuses or circuit breakers. power line.
-
Page 19: Digital Readout Error Codes (Variable Speed Models)
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 20: Ibdg-248 Belt/Disc Sander - Exploded View
13.1.1 IBDG-248 Belt/Disc Sander – Exploded View... -
Page 21: Ibdg-248 Belt/Disc Sander - Parts List
13.1.2 IBDG-248 Belt/Disc Sander – Parts List Index No Part No Description Size 1 ....IBGB248-01 ....Motor Housing w/ Stator ................1 2 ....IBDG248-02 ....Rotor ......................1 3 ....IBGB248-03 ....End Cover ...................... 1 4 .... - Page 22 104 .... IBDG248-104 .... Nylon Strap ....................1 105 .... IBDG248-105 .... Allen Wrench (not shown) ........3 x L140mm ....1 ....JET-92-73R ....JET Logo (not shown)..........92 x 38 mm ....1 ....LM000400 ....ID/Warning Label, IBDG-248 (not shown) ............. 1 ....
-
Page 23: Ibdg-248Vs Belt/Disc Sander - Exploded View
13.2.1 IBDG-248VS Belt/Disc Sander – Exploded View... -
Page 24: Ibdg-248Vs Belt/Disc Sander - Parts List
13.2.2 IBDG-248VS Belt/Disc Sander – Parts List Index No Part No Description Size 1 ....IBGB248VS-01 ..Motor Housing w/ Stator ................1 2 ....IBDG248VS-02 ..Rotor ......................1 3 ....IBGB248-03 ....End Cover ...................... 1 4 .... - Page 25 104 .... IBDG248-104 .... Nylon Strap ....................1 105 .... IBDG248-105 .... Allen Wrench (not shown) ........3 x L140mm ....1 ....JET-92-73R ....JET Logo (not shown)..........92 x 38 mm ....1 ....LM000401 ....ID/Warning Label, IBDG-248VS (not shown) ..........1 ....
-
Page 26: Ibdg-436 Belt/Disc Sander - Exploded View
13.3.1 IBDG-436 Belt/Disc Sander – Exploded View... -
Page 27: Ibdg-436 Belt/Disc Sander - Parts List
13.3.2 IBDG-436 Belt/Disc Sander – Parts List Index No Part No Description Size 1 ....IBGB248-01 ....Motor Housing w/ Stator ................1 2 ....IBDG436-02 ....Rotor ......................1 3 ....IBGB248-03 ....End Cover ...................... 1 4 .... - Page 28 104 .... IBDG248-104 .... Nylon Strap ....................1 105 .... IBDG248-105 .... Allen Wrench (not shown) ........3 x L140mm ....1 ....JET-92-73R ....JET Logo (not shown)..........92 x 38 mm ....1 ....LM000402 ....ID/Warning Label, IBDG-436 (not shown) ............. 1 ....
-
Page 29: Ibdg-436Vs Belt/Disc Sander - Exploded View
13.4.1 IBDG-436VS Belt/Disc Sander – Exploded View... -
Page 30: Ibdg-436Vs Belt/Disc Sander - Parts List
13.4.2 IBDG-436VS Belt/Disc Sander – Parts List Index No Part No Description Size 1 ....IBGB248VS-01 ..Motor Housing w/ Stator ................1 2 ....IBDG436VS-02 ..Rotor ......................1 3 ....IBGB248-03 ....End Cover ...................... 1 4 .... - Page 31 104 .... IBDG248-104 .... Nylon Strap ....................1 105 .... IBDG248-105 .... Allen Wrench (not shown) ........3 x L140mm ....1 ....JET-92-73R ....JET Logo (not shown)..........92 x 38 mm ....1 ....LM000403 ....ID/Warning Label, IBDG-436VS (not shown) ..........1 ....
-
Page 32: Electrical Connections
14.0 Electrical Connections 14.1 Wiring diagram for IBDG-248 and IBDG-436 14.2 Wiring diagram for IBDG-248VS and IBDG-436VS Operation panel 115V/230V White Input Power Black Green... -
Page 33: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. - Page 34 This page intentionally left blank.
