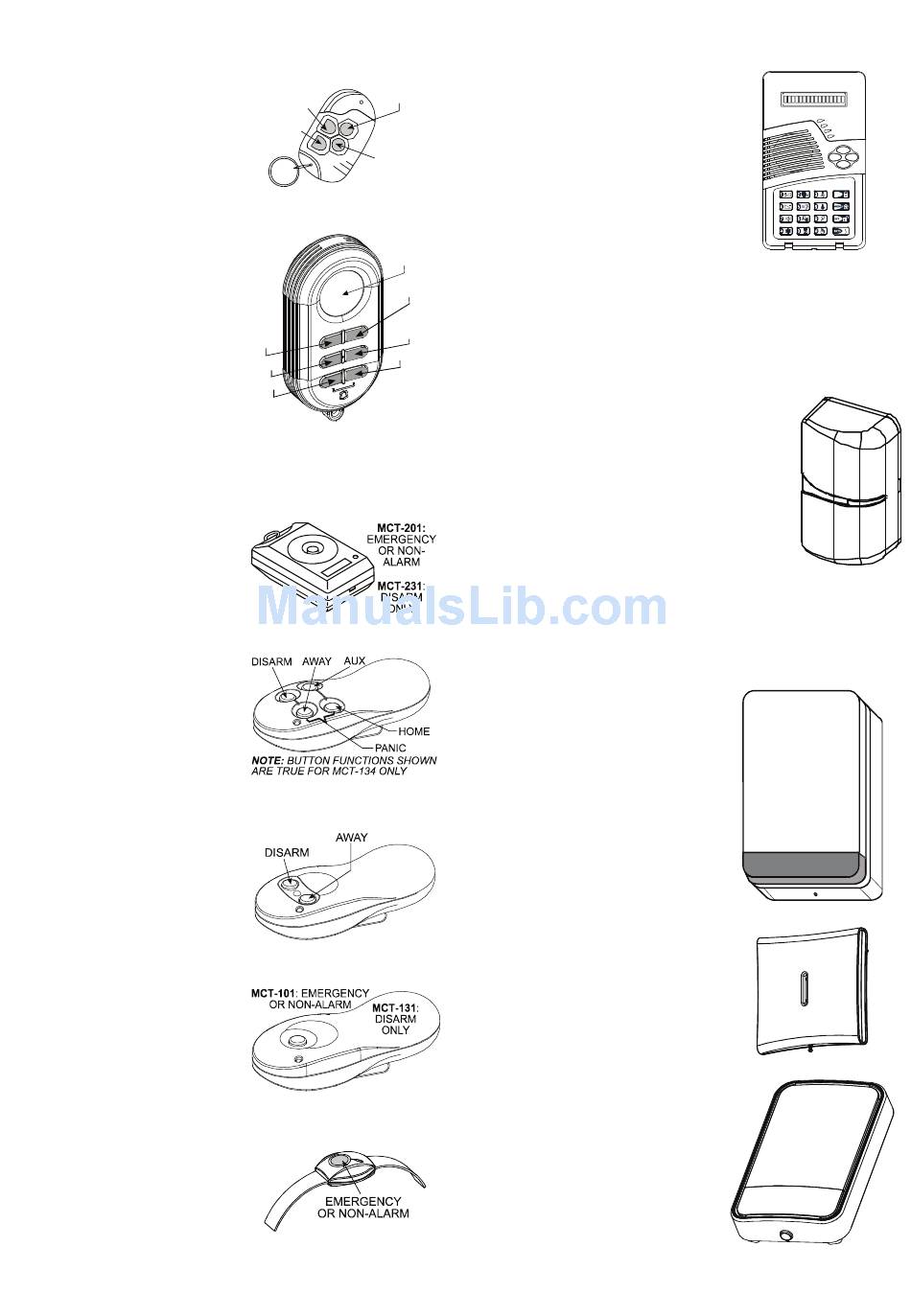

A. MCT-234
'Keyfob' transmitter.
can program the
(auxiliary) button to perform
various tasks,
accordance with the user's
needs.
Pressing AWAY
HOME together for 2 sec.
initiates PANIC
Pressing AWAY for 2 sec.
initiates Latchkey arming.
B. MCT-237
Two-way CodeSecure 6-
button 'Keyfob' transmitter.
You can program the AUX
(auxiliary) buttons
perform various tasks, in
accordance with the user's
needs.
Pressing AWAY
HOME together for 2 sec.
initiates PANIC
Pressing AWAY
within 2 sec.
Latchkey arming.
B. MCT-231 / 201*
(N.A. in North America)
Single-button pendant units.
The MCT-231 (Code- Secure)
and the MCT-201
(PowerCode) can be enrolled
to perform functions as shown.
Both units look alike.
C. MCT-134 / 104*
(N.A. in North America)
4-button hand-held
MCT-134 (CodeSecure) can
replace the MCT-234 keyfob.
MCT-104 (PowerCode) can
perform emergency and non-
alarm functions. Both units
look alike.
D. MCT-132 / 102*
(N.A. in North America) 2-
button units. MCT-132
(CodeSecure) can perform
functions as shown. MCT-102
(PowerCode) can
emergency and non-alarm
tasks. Both units look alike.
E. MCT-131 / 101*
(N.A. in North America)
Single-button units.
MCT-131 (CodeSecure) and
the MCT-101 (PowerCode)
can be enrolled to perform
functions as shown. Both
units look alike.
F. MCT-211*
Water-proof, wrist-worn
Power-Code transmitter.
Can be enrolled to perform
emergency or non-alarm
functions.
D-302754
You
AUX
in
AWAY
HOME
and
alarm.
MCT-234
to
AWAY
HOME
AUX 1
and
alarm.
MCT-237
twice
initiates
MCT-231 / 201
units.
MCT-134 / 104
perform
MCT-132 / 102
The
MCT-131 / 101
MCT-211
I. MKP-150/151
The MKP-150 / MKP-151
operates
encrypted
transmission and provides
DISARM
aural and visual indications.
For each control panel, a
maximum of two MKP-150 /
AUX
MKP-151 keypad devices
may be enrolled.
The device enables the user
to arm/disarm the alarm
system,
DISPLAY
emergency / fire / panic
alarms and to turn lighting
DISARM
devices on and off.
Note: MKP-150/151 is not
STATUS /
PARTITION
compatible for use when
AUX 2
partition is enabled.
J. Contact transmitter MCT-320.
MCT-320
PowerCode magnetic contact transmitter,
for use with PowerCode products. The
transmitter includes a built-in reed switch
(that opens upon removal of a magnet
placed near it). The MCT-320 tamper
switch is activated when the cover is
removed or when the detector is removed
from the wall. A periodic supervision
message is transmitted automatically. The
target receiver is thus informed, at regular
intervals, of the unit's active participation
in the system.
* Not UL listed.

F3 Compatible WL Siren

The MCS-710 / MCS-720 /
MCS-730 (*) wireless siren can
be integrated
PowerMaxCompletein areas in
which wiring action is difficult or
impossible. The MCS-710 /
MCS-720 / MCS-730 is a fully
supervised,
communication
includes a receiver, to receive
activation commands from the
alarm system, and a transmitter
to periodically transmit its status
signal to the alarm system).
When an identifiable activation
command is received from the
PowerMaxComplete, the siren
activates its sounder and the flash
light (strobe light every 1.5
seconds).
* Not UL listed.
using two-way
coded
to initiate
is a fully supervised,
with the
2-way
device (it
AWAY
MKP-150/151
MCT-320
MCS-710
MCS-720
MCS-730
