Visonic POWERMAXCOMPLETE - INSTALLER GUIDE Manual page 24

(First display)
READY
WALK TEST
USER SETTING
INSTALLER MODE
ENTER CODE
[installer code]
1. NEW INSTL CODE
2. ENROLLING
3. DEFINE ZONES
4. DEFINE PANEL
5. DEFINE COMM.
<OK> TO EXIT
Note
The currently saved options
are displayed with dark box
at the right side of the display.
To re view the o ptions,
repeatedly click or
until the desired option
is displayed, then click OK (a
dark box will be displayed at
the right side).
Note
For Control Panel that has
installer code & master
installer code, the following
functions are available only if
the MASTER INSTALLER
code is entered:
PSTN/GSM RCVR1
RCVR 1 ACCOUNT#
PSTN/GSM RCVR2
RCVR 2 ACCOUNT#
PSTN RPRT FORMAT
4/2 PLS RATE
REPORT EVENTS
RPRT CNFRM ALRM
SEND 2WV CODE
VOICE C.S.
RINGBACK TIME
PSTN RPRT RETRY
GSM RPRT RETRY
MAST. DL CODE
24
1: PSTN / GSM 2: GPRS / BB
4.5.1(1)
AREA CODE
xxxx
(Enter tel. area code)
4.5.2(1)
GPRS REPORT
disable disable
enable enable
Par. 4.5.2(5)
GPRS USERNAME
xxxx...(up to 30 digits)
(Enter GPRS
username)
Par. 4.5.2(9)
LAN SETTINGS
Par. 4.5.2(9a)
ENABLE DHCP
PLEASE WAIT...
DHCP ENABLE
DHCP DISABLE
4.5.4(1)
REPORT TO PRVT
disable report
all
all (-op/cl)
all (-alerts)
alarms
alerts
op/cl
Par. 4.5.4(2a)
1st private tel#
Tel. No.
Par. 4.5.4(2d)
4th private tel#
Tel. No.
Par. 4.5.4(2g)
Tel. acknowledge
single ack
all ack
Par. 4.5.4(3c)
3rd SMS tel#
SMS Tel. No.

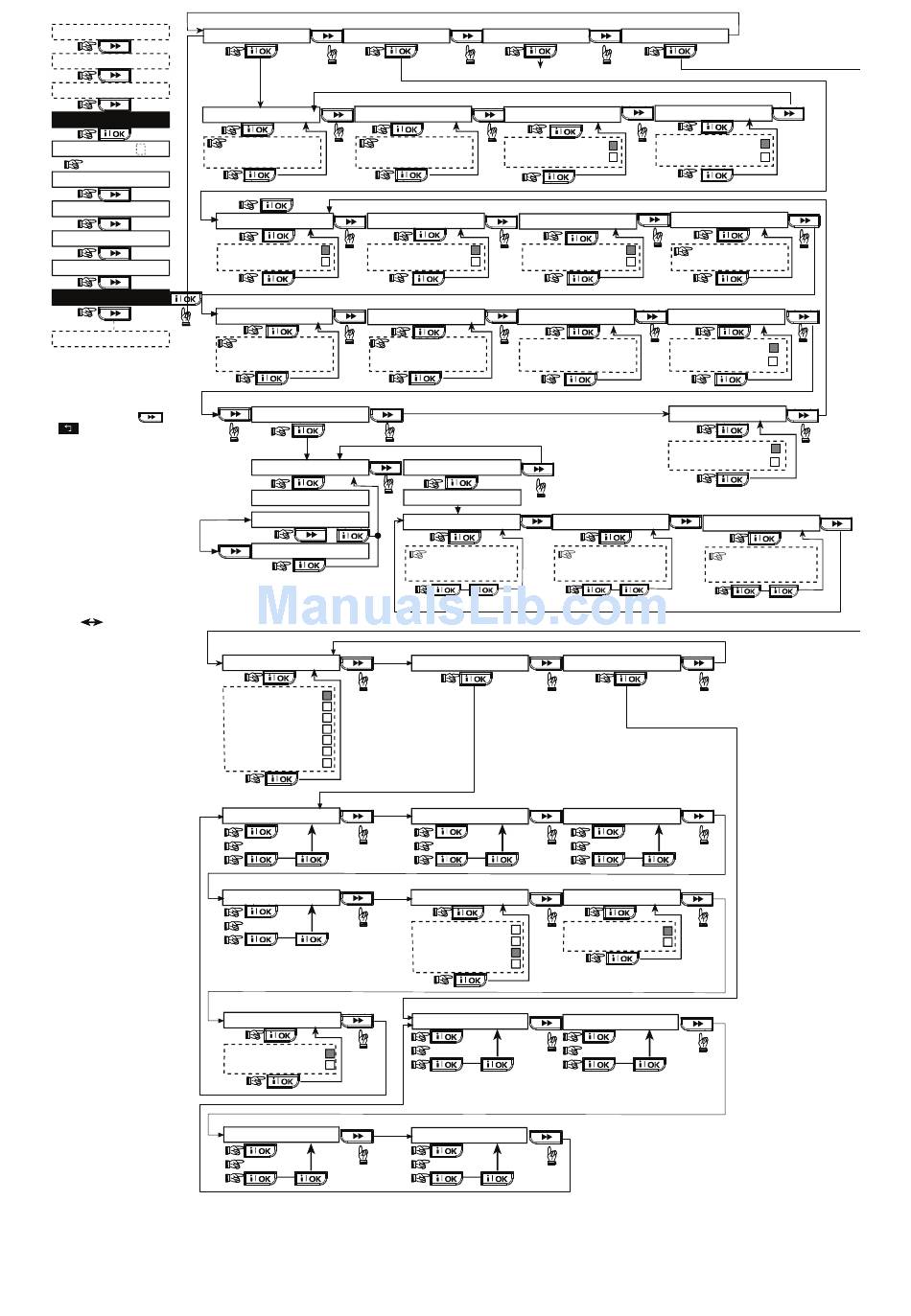

Figure 4.5 – Defining Communications
3: C.S. REPORTING
See detail A
Par. 4.5.1(2) Par. 4.5.1(3)
LINE PREFIX
DIAL METHOD
xxxx
tone (dtmf)
(Enter prefix) pulse
Par. 4.5.2(2)
GSM REPORT SMS REPORT
disable
enable
Par. 4.5.2(6) Par. 4.5.2(7)
GPRS PASSWORD SIM PIN CODE
xxxx...(up to 16 digits) xxxx...(up to 16 digits)
(Enter GPRS
(Enter SIM card
password)
PIN code)
Par. 4.5.2(9b)
MANUAL IP
PLEASE WAIT
IP address
xxx.(up to 12 digits
0 to 255)
(Enter IP address)
Par. 4.5.4(2)
VOICE REPORT
Par. 4.5.4(2b)
2nd private tel#
Tel. No.
Par. 4.5.4(2e)
Redial attempts
1 attempt
2 attempts
3 attempts
4 attempts
Par. 4.5.4(3a)
1st SMS tel#
SMS Tel. No.
Par. 4.5.4(3d)
4th SMS tel#
SMS Tel. No.
4: PRIVATE REPORT
Par. 4.5.1(4)
GSM KEEP ALIVE
disable
every 28 days
Par. 4.5.2(3) Par. 4.5.2(4)
GPRS APN
xxxx...(up to 40 digits)
(Enter name of APN)
Par. 4.5.2(8)
FORCE HOME NETW.
disable
enable
Par. 4.5.2(10)
SESSION TIMEOUT
off on timeout
always ON
Subnet mask
xxx.(up to 12 digits
xxx.(up to 12 digits
0 to 255)
(Enter subnet mask)
(Enter default gateway)
Par. 4.5.4(3)
SMS REPORT TEL#
Par. 4.5.4(2c)
3rd private tel#
Tel. No.
Par. 4.5.4(2f)
Voice<-->private
enable two-way
disable two-way
Par. 4.5.4(3b)
2nd SMS tel#
SMS Tel. No.
Default GW
0 to 255)
D-302754
