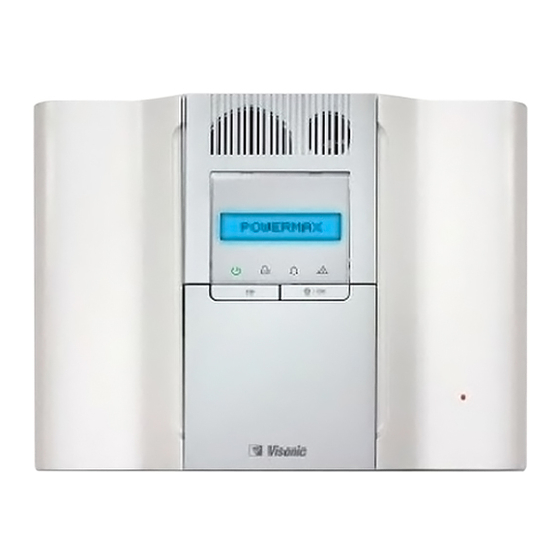

PowerMaxComplete
Fully Supervised Wireless Alarm Control System
1. INTRODUCTION ....................................................... 4
2. SPECIFICATIONS ..................................................... 4
2.1 General Data ....................................................... 4
2.2 RF Section .......................................................... 4
2.3 Electrical Data ..................................................... 5
2.4 Communication ................................................... 5
2.5 Physical Properties ............................................. 5
3. INSTALLATION ......................................................... 5
3.1 Unpacking the Equipment ................................... 5
3.2 Supplying Power to the Unit ................................ 5
3.3 System Planning & Programming ....................... 5
3.4 Mounting ............................................................. 5
3.5 Wiring .................................................................. 5
3.6 Backup Battery Insertion ..................................... 8
3.10 Power Cable Connection .................................. 9
3.11 Control Panel Final Closure ............................ 11
4. PROGRAMMING ..................................................... 12
4.1 INTRODUCTION .............................................. 12
4.1.1 General Guidance .......................................... 12
4.1.3 Installer's Menu .............................................. 12
4.1.4 Setting a New Installer Code ......................... 12
TRANSMITTERS ......................................................... 13
4.2.1 General Guidance .......................................... 13
4.2.2 Enrolling Type ................................................ 13
4.2.3 Enroll/Delete Sensors .................................... 13
4.2.7 Enroll/Delete Wireless Siren ........................... 13
4.2.8 Enroll/Delete Proximity Tags .......................... 13
& PARTITION .............................................................. 15
4.4.1 Preliminary Guidance ..................................... 16
4.4.3 Exit Delay ....................................................... 16
4.4.4 Bell Time ........................................................ 16
4.4.5 Abort Time ...................................................... 16
4.4.6 Alarm Cancel .................................................. 16
4.4.7 Quick Arm ...................................................... 16
4.4.8 Bypass............................................................ 17
4.4.9 Exit Mode ....................................................... 17
4.4.10 Piezo Beeps ................................................. 17
4.4.11 Trouble Beeps .............................................. 17
4.4.12 Panic Alarm .................................................. 17
4.4.13 Swinger Stop ................................................ 17
4.4.14 Cross Zoning ................................................ 17
D-303983 PowerMaxComplete Installer's Guide

TABLE OF CONTENTS

4.6 GSM Auto Detection .............................................. 27
4.7 POWERLINK Auto Detection ................................ 27
4.8 DEFINING OUTPUT PARAMETERS ................... 27
4.9 DEFINE VOICE ..................................................... 28
4.10 DIAGNOSTIC TEST ............................................ 29
4.11 USER FUNCTIONS ............................................ 31
4.13 SERIAL NUMBER ............................................... 31
4.16 DEFINING THE ARMING STATION ................... 32
Installer's Guide
4.4.15 Supervision .................................................. 17
4.4.16 NOT READY ................................................ 17
4.4.17 AUX Button A ............................................... 17
4.4.18 AUX Button B 2-W-KF ................................... 17
4.4.19 Jam Detect ................................................... 18
4.4.20 Latchkey ....................................................... 18
4.4.21 "Not Active" .................................................. 18
4.4.22 Back Light .................................................... 18
4.4.23 Duress .......................................................... 18
4.4.24 Piezo Siren ................................................... 18
4.4.25 Reset Option ................................................ 18
4.4.26 Tamper Option ............................................. 18
4.4.27 Siren On Line ............................................... 18
4.4.28 Memory Prompt ........................................... 18
4.4.29 Disarm Option .............................................. 18
4.4.30 Bell/Rep. Option ........................................... 18
4.4.31 Low-Bat Ack ................................................. 18
4.4.32 Screen Saver ............................................... 18
4.4.33 Confirm Alarm .............................................. 19
4.4.34 AC FAIL REP ............................................... 19
4.4.36 User Permission .......................................... 19
4.4.38 Battery Type ................................................. 19
4.4.39 Key Zones Options (Optional) ..................... 19
Preliminary Guidance.............................................. 21
4.5.1 PSTN / GSM (Fig. 4.5) .................................... 21
4.5.2 GPRS / BB (Fig. 4.5) ..................................... 21
4.5.3 C.S. Reporting (Fig. 4.5) ................................ 22
4.5.4 Private Report (Fig. 4.5) ................................. 24
4.8.1 Preliminary Guidance .................................... 27
4.8.2 Define PGM ................................................... 27
4.8.3 Defining INT/STRB ........................................ 27
4.8.4 PGM General Definition ................................. 27
4.9.1 Record Speech .............................................. 28
4.9.2 Voice Box Mode ............................................. 28
4.10.1 GPRS Communication Test ........................ 29
4.10.2 LAN Connection Test ................................... 29
4.16.1 Tamper Type ................................................ 32
4.16.2 Screen Saver ............................................... 32
4.16.3 Show AC Failure .......................................... 32
1
