Martin Audio OMNILINE - SYSTEM PREPARATION Manual page 25

7.10

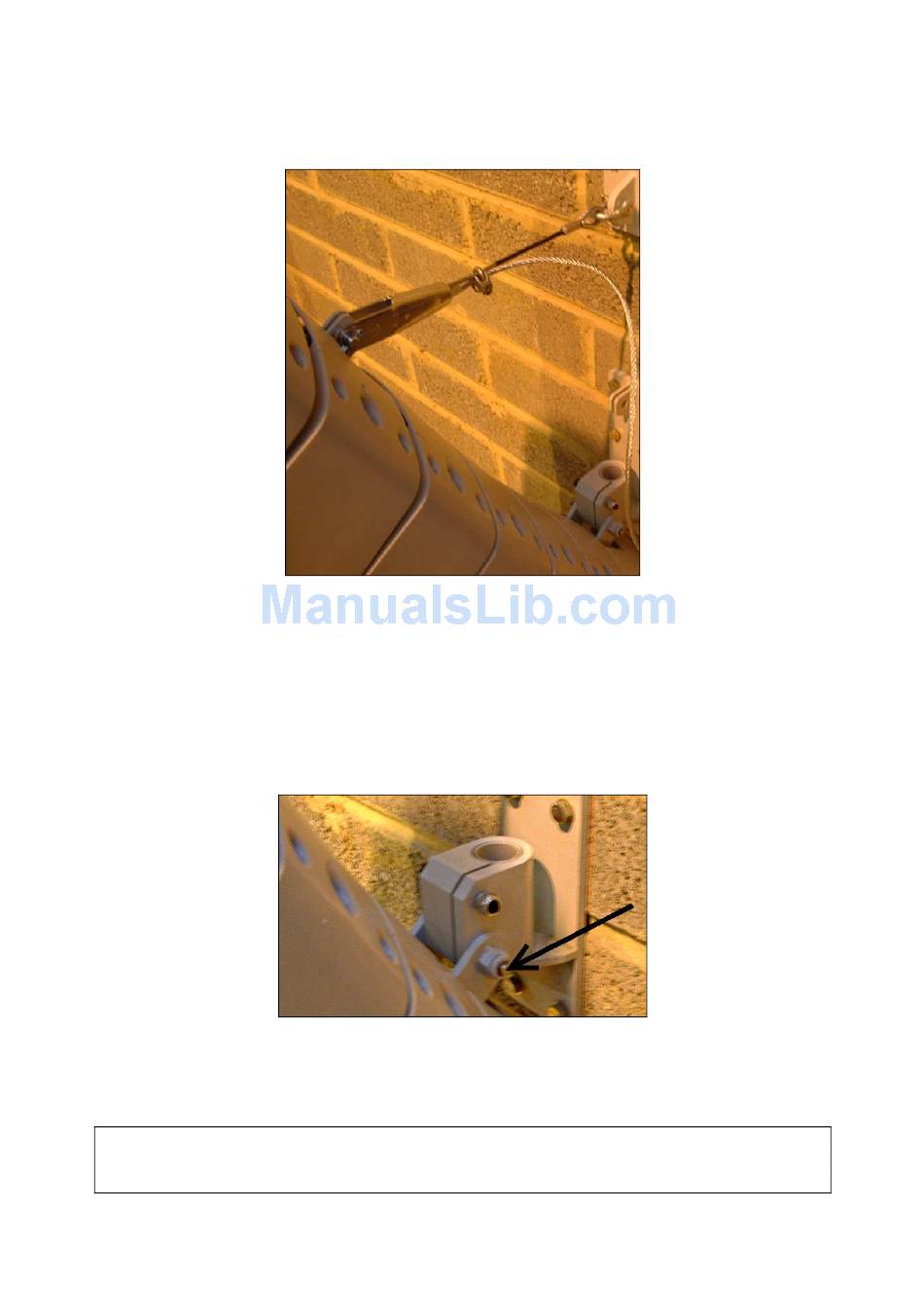

Shackle the end of the wire rope to the top wall bracket.
7.11
Use the wedge socket to fine tune the down tilt of the array. Once the angle is set,
add the DIN1142 rope grip for extra security and make sure everything is tight.
Trim the wire rope if required.
7.12
Tighten the U-bracket-to-sleeve screw (arrowed)
Add a safety wire rope between the second (top) tie-bracket and an approved,
secure part of the building structure.
Recheck everything!
ALLWAYS double check that all Orange safety clips are in place as this is essential to
ensure that the array will stay safely locked together
24
