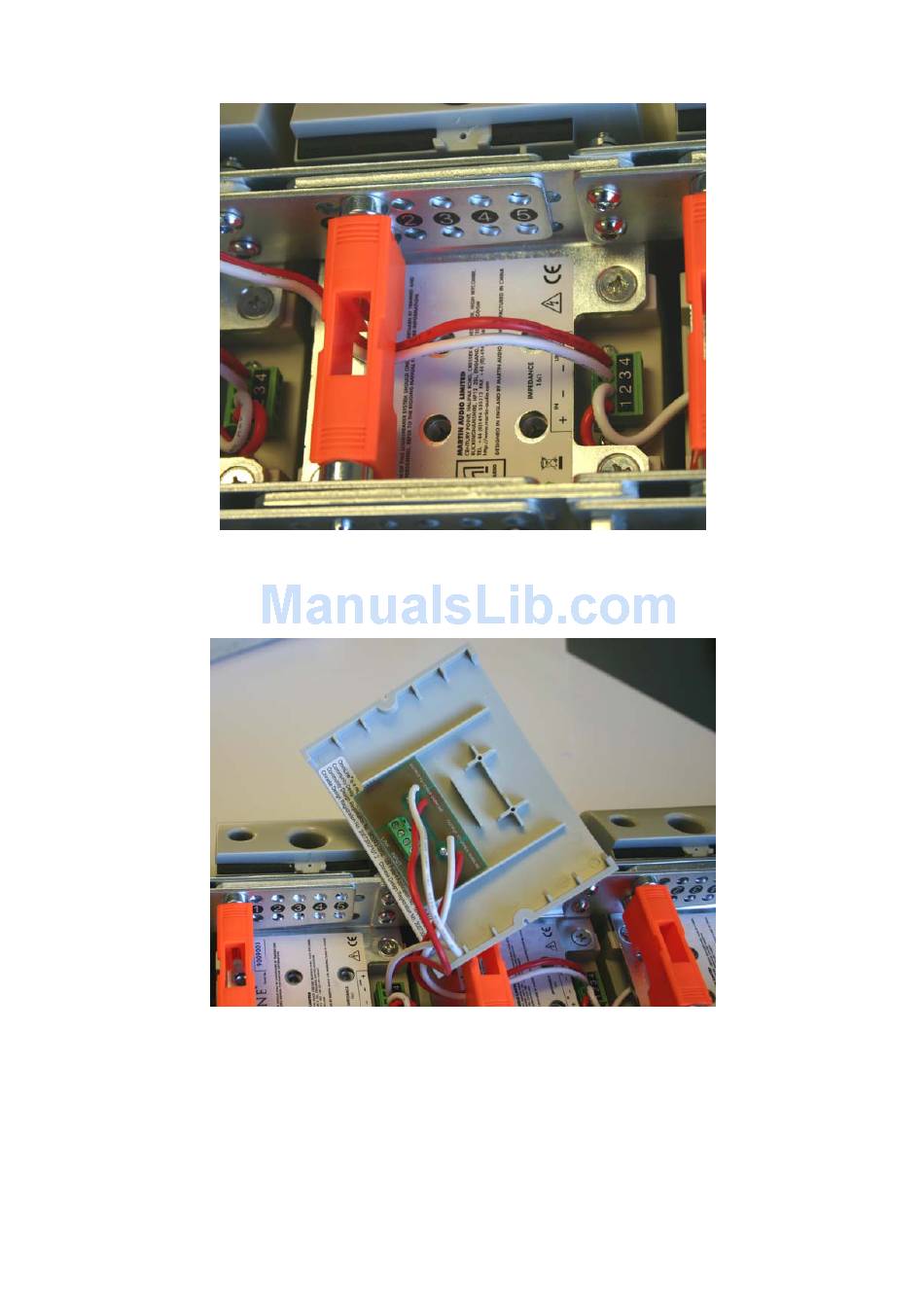

Screw the pcb to the inside of the most convenient rear cover using the self
tap screws provided with each set of four modules. Its orientation will depend
on that module's linking pin positions.
7.2
Fit the U-bracket to the lower OmniLine® module first – and then the linking pins.
Final U-bracket positioning will be determined by the required linking pin positions –
one position for 0-2 degrees and the other position for 3-5 degrees. See illustration
below...
