Martin Audio OMNILINE - SYSTEM PREPARATION Manual page 16

6.5

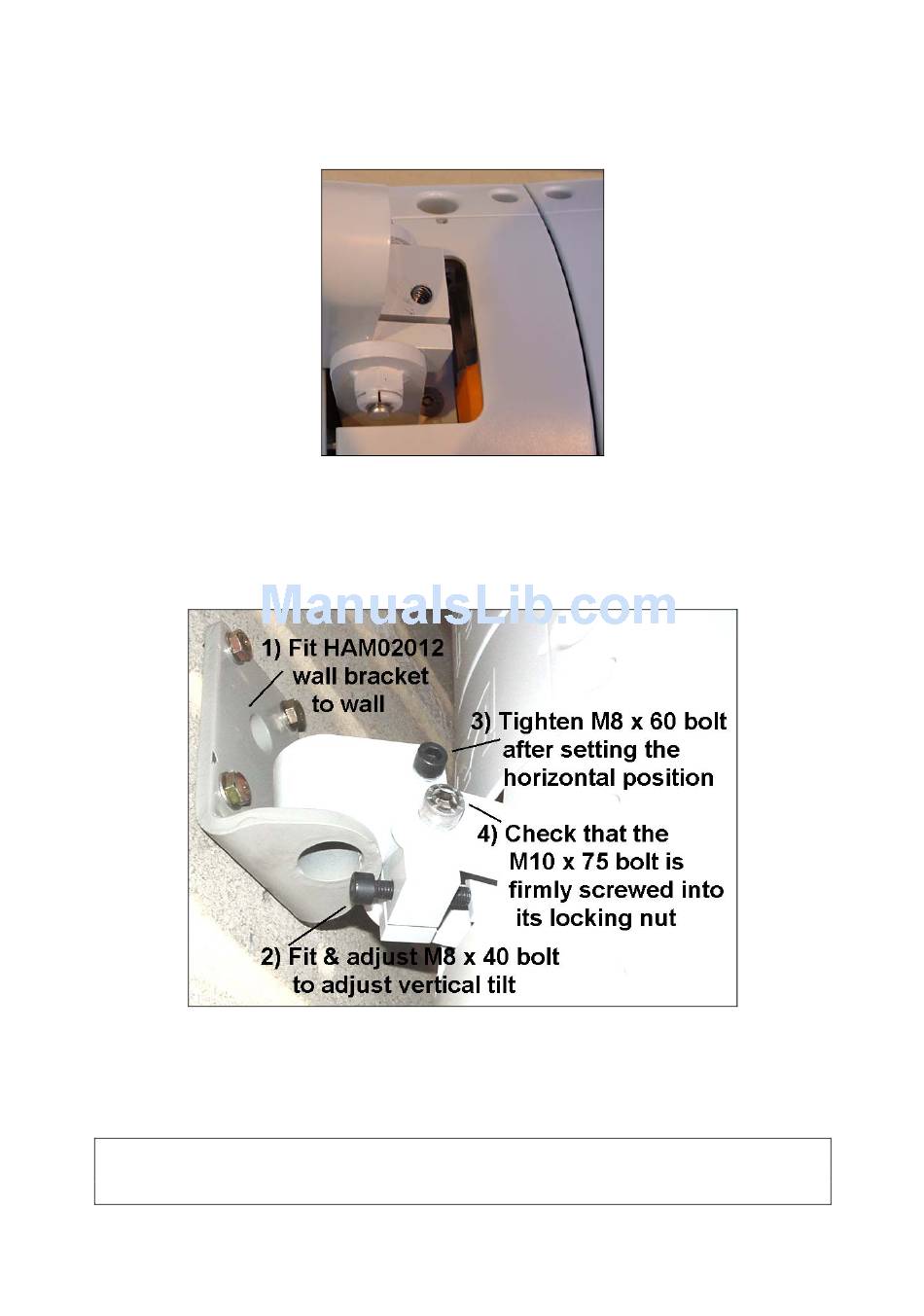

Fit rear the rear covers - using the cut out version for the module with the bracket
6.6
1) Fit the HAM02012 Wall Bracket – see kit identification picture earlier. A drilling
template is included with the bracket
Lift the block of four Omniline® modules onto the wall mounting – see below.
2) Fit the FAA08004 M8 x 40 bolt and adjust screw to set vertical tilt angle
3) Tighten clamping bolt (FAA08005 M8 x 60) after setting the horizontal angle
4) Check that the M10 x 75 collar-to-U-bracket bolt is firmly screwed into its
locking nut
ALLWAYS double check that all Orange safety clips are in place as this is essential to
ensure that the array will stay safely locked together
All material © 2009. Martin Audio Ltd. Subject to change without notice.
Recheck everything!
