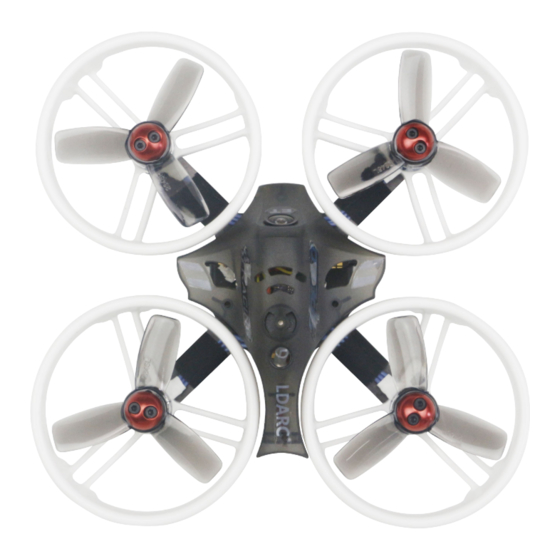

LDARC ET115 3S Instruction Manual

NO RX
ET V2/3S Series
User manual and video please visit:WWW.LDARC.COM
Note: 2S configuration using 3S battery will cause damage to electronic equipment
Name
Flytower 20*20(V2)
Receiver
Camera
VTX
Input Voltage
Weight
(not include battery&receiver)
Wheelbase
Motor
Battery
Prop
FM800 RX2A PRO
ET100 V2 PNP ET115 3S PNP
Instruction manual
ET100 V2
F411+OSD FC+4in1 ESC 12A BLHeliS
FM800,RX2A PRO,DSM2,AC900(S-FHSS+D16)
Q100 VTX(25mW/100mW 16CH)
Only 2S
78.6g
100mm
XT1103-7800KV
7.4V 450mAh 80C(JST)
1935
DSM2 AC900(S-FHSS+D16)
ET125 V2 PNP
ET115 3S
。
OV231(800TVL 150 NTSC)
2-3S
97.3g
115mm
XT1105-5000KV
11.1V 600mAh 50C(XT30)
2345
ET125 V2
Only 2S
96.7g
125mm
XT1104-7500KV
7.4V 550mAh 80C(JST)
2840
190527
