Model 2020 Crane Installation - IMT 3820 Operation?And Safety

99903514:TELESCOPIC CRANE:
4.7 MODEL 2020 CRANE INSTALLA-
TION
MINIMUM CHASSIS SPECIFICATIONS
BODY STYLE
WHEELBASE
CAB TO AXLE
FRAME SECTION MODULUS
RBM
FRONT AXLE RATING
REAR AXLE RATING

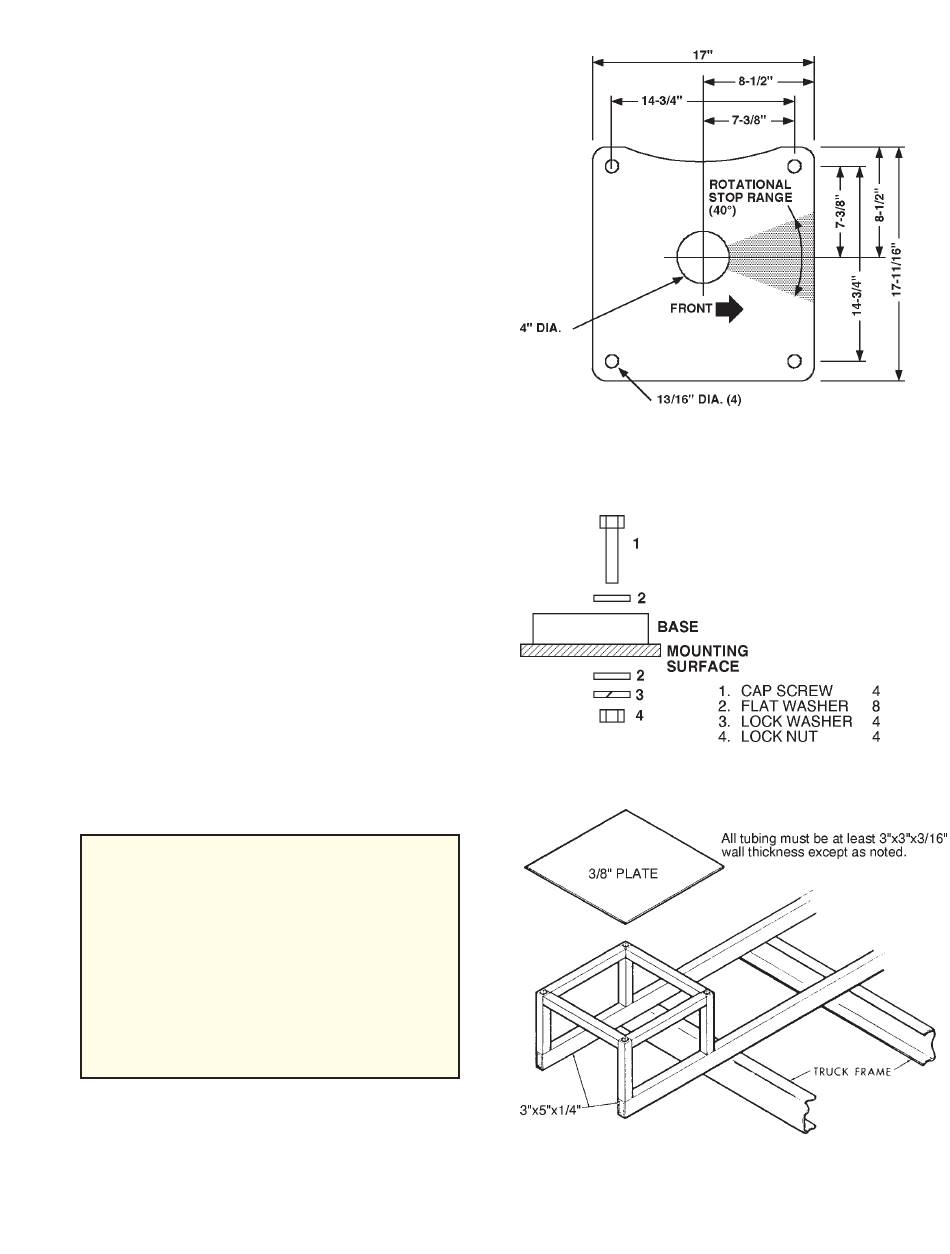

CRANE INSTALLATION
The crane requires a mounting space of at
least 17-7/16" wide by 17" long. If necessary,
the truck body can be reinforced to give
sufficient strength to support the crane in its
operating condition. Locate and drill the four
13/16" holes (see Mounting Hole Layout
drawing). Use a pilot drill first and then the 13/
16" drill. Cut the 4" diameter hole with a saw
after starting with a drill. Deburr all holes. Lift
the crane into position on the body. Use a
lifting device capable of supporting the crane -
830 lbs (376 kg) or 920 lbs (417 kg), depen-
dent on model.
Install the bolts, lockwashers, flat washers
and nuts to secure the crane to the chassis
(see drawing). Torque the bolts to 200 ft. lbs.
(27.66 kg-m).
NOTE
IN ADDITION TO THESE SPECIFICA-
TIONS, A HEAVY-DUTY BATTERY AND
ALTERNATOR ARE REQUIRED. IT IS
RECOMMENDED THAT THE VEHICLE
HAVE POWER STEERING AND DUAL
REAR WHEELS.
IMT RECOMMENDS ADHERENCE TO
THE UPPER LIMIT OF THESE SPECIFI-
CATIONS FOR BEST SYSTEM PER-
FORMANCE.
BODY REINFORCEMENT
If, after talking with the factory, it has been
determined that the body will not support the
crane with the full, rated load, the body can be
reinforced as shown. Use 1/4" fillet welds and
an AWS qualified welder.
20030115 4-8
Conventional
Cab
137" - 161"
60" - 84"
8 in³
290,000 in-lb
4000 lb
7500 lb
SECTION 4: INSTALLATION
MOUNTING HOLE LAYOUT
CRANE INSTALLATION
REINFORCEMENT
