Eaton CCP2-H4X-R1 Installation Manual

Installation manual 3A3695

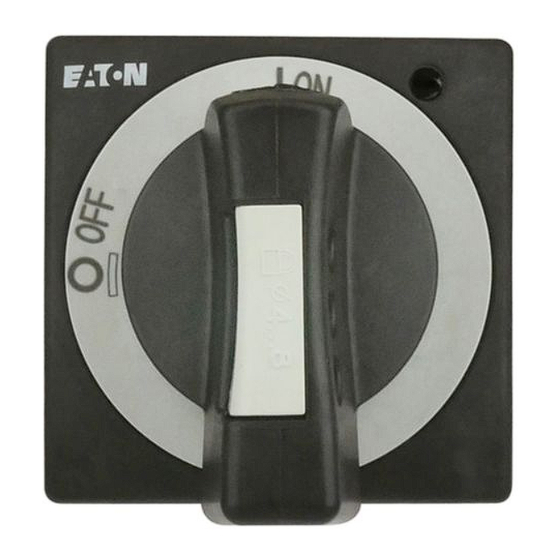

CCP2-H4X-_ selector and pistol handles
for use with 8 mm shafts
These instructions cover the installation
procedures specific to the catalog numbers shown
above. Please review the switch and switch
handle applications table on page 2 to ensure the
handle in this kit can be installed on your specific
Compact Circuit Protector (CCP) switch.
Effective April 2018
Supersedes February 2018
Counterclockwise selector handle:
• CCP2-H4X-B1L
• CCP2-H4X-R1L
Counterclockwise pistol handle:
• CCP2-H4X-B2L
• CCP2-H4X-R2L
For left side operation only
Clockwise selector handle:
• CCP2-H4X-B1
• CCP2-H4X-R1
Clockwise pistol handle:
• CCP2-H4X-B2
• CCP2-H4X-R2
For front and right side operation only
For complete installation, customers must supply
one of the following 8 mm square shafts (catalog
numbers):
CCP2-SH1-290 (11.5"/290 mm)
•
CCP2-SH1-490 (19.3"/490 mm)
•
