Eaton BUSSMANN Series Installation Manual

Installation manual PUB10706
3A3771 Rev B

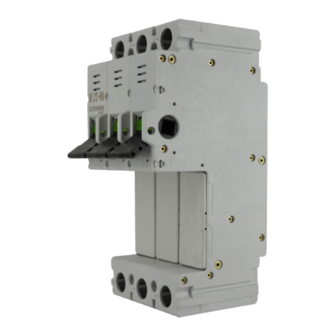

6-port multi-wire lug kit for use on 400 A
Compact Circuit Protector and 400 A CUBEFuse
holders
Catalog no. CCP2-MW6-6
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR
ARC FLASH
MAY RESULT IN DEATH OR SERIOUS INJURY
Working on or near energized circuits poses a
serious risk of electric shock. De-energize all
circuits before installing or servicing this equipment
and follow all prescribed safety procedures.
RIESGO DE DESCARGA ELÉCTRICA,
EXPLOSIÓN O ARCO ELÉCTRICO
PUEDE CAUSAR LESIONES GRAVES O
INCLUSO LA MUERTE
Trabajar en o cerca de circuitos energizados
representa un grave riesgo de descarga eléctrica.
Desconecte todos los circuitos antes de realizar
alguna instalación o de dar servicio a este equipo
y siga todos los procedimientos de seguridad
indicados.
RISQUE D'ÉLECTROCUTION, D'EXPLOSION OU
D'ARC ÉLECTRIQUE
RISQUE DE MORT OU DE BLESSURES GRAVES
Travailler sur des circuits sous tension ou `a
proximité pose un risque grave de choc électrique.
Mettez tous les circuits hors tension avant d'installer
ou d'effectuer l'entretien de cet équipement et
suivre toutes les procédures de sécurité prescrites.
Contents
Description
Kit contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Instructions for assembly . . . . . . . . . . . . . . . . . . . 2
Effective January 2019
Mounting screw
Figure 1
Kit contents
(3) 6-port lugs, (3) anti-rotation plates, (6) #6 plate screws,
(3) mounting screws, (1) terminal shroud, (2) #4 x 1/2" hi-lo
screws, (1) Warning / Torque Label, and (1) cover plate
Wire range 1/0-14 AWG (maximum 6) copper or aluminum
wires.
This kit is UL Listed (File E64983) for field installation on the
loadside of the 400 A Frame Compact Circuit Protector (CCP)
or 400 A CUBEFuse holder.
Note: The purpose of these lugs is to distribute power to more
than one load and are to be installed only on the loadside.
Page
Cover plate
Hi-lo
screws
Terminal
shroud
Anti-rotation plate
Plate
screw
Lug
