Extension Column And Flush Mounting Applications - Epson ELPMBP03 - Structural Round Ceiling Plate Installation And Assembly Manual

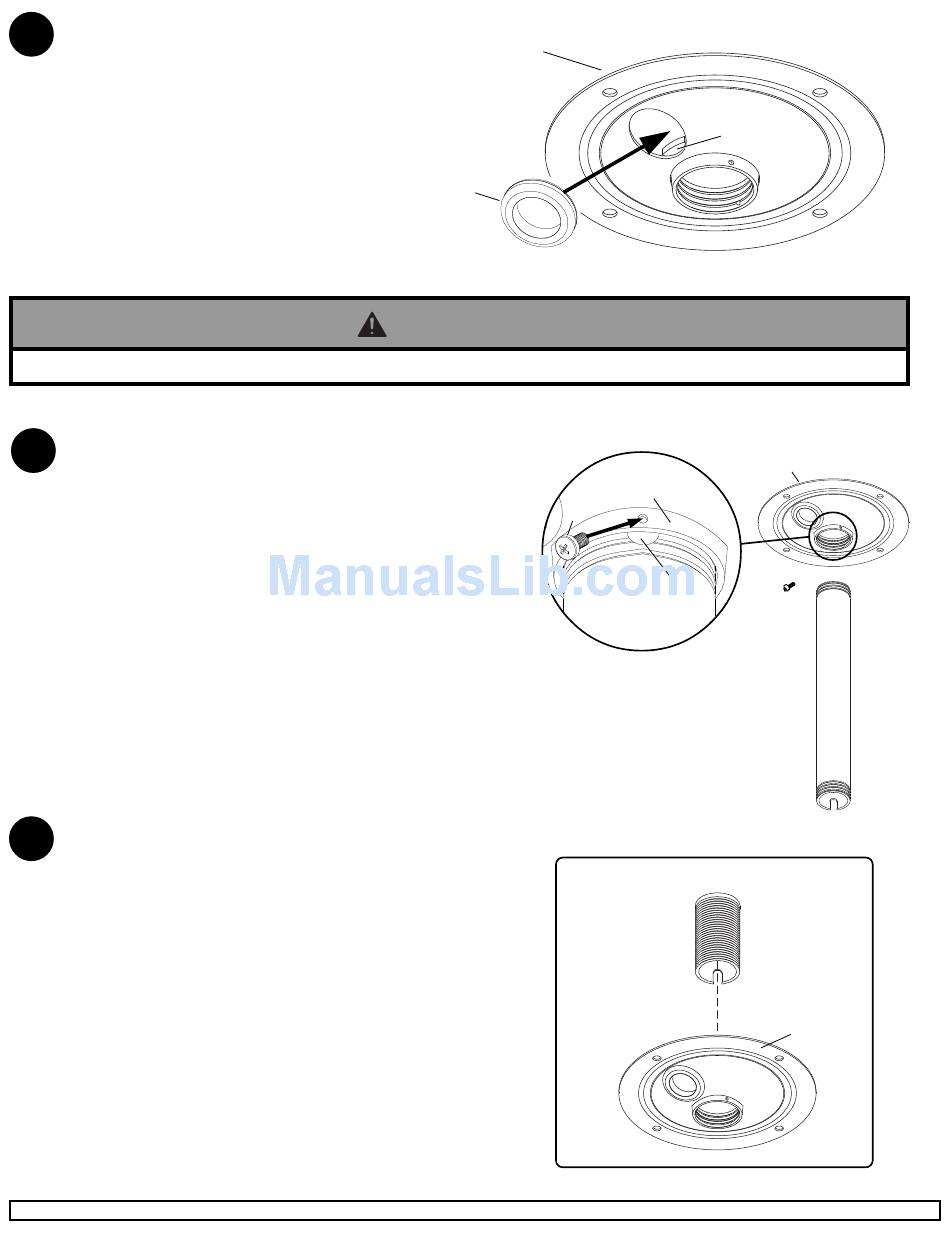

Place grommet (F) into hole of ceiling plate (A).
1
NOTE: Make sure grommet overlaps retaining
collar. Grommet may require some force to fit in
hole and will appear slightly deformed.
• For safety, extension column must be locked to threaded fitting with screw.
Extension Column Applications
2
Insert end of extension column into threaded fitting of
ceiling plate (A). Tighten four or five complete turns.
Align slot in extension column with one of the small
holes in the side of the threaded fitting. Insert and
tighten one M5 x 10 mm phillips screw (C) into hole to
lock extension column to threaded fitting.
NOTE: For security option, use M5 socket pin screw (D)
in place of screw (C). Tighten using 4 mm allen
wrench (E).
Flush Mounting Applications
2
Screw flush mount from top of ceiling plate (A) as
shown in fig. 2. Tighten four or five complete turns.
Align slot in flush mount tube with one of the small
holes in the side of the threaded fitting. Insert and
tighten one M5 x 10 mm phillips screw (C) into hole to
lock flush mount tube to threaded fitting.
NOTE: For security option, use M5 socket pin
screw (D) in place of screw (C). Tighten using 4 mm
allen wrench (E).
Visit the Peerless Web Site at www.peerlessmounts.com
A
F
WARNING
C
fig. 2
4 of 7
For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
RETAINING
COLLAR
THREADED
FITTING
SLOT
UL LISTED ELPMBC01 AND
EXT OR ADJ SEIRIES
(SOLD SEPARATELY)
FLUSH MOUNT
TUBE (SOLD
SEPARATELY)
ISSUED: 02-13-08 SHEET #: 054-9126-2 07-10-08
A
A
