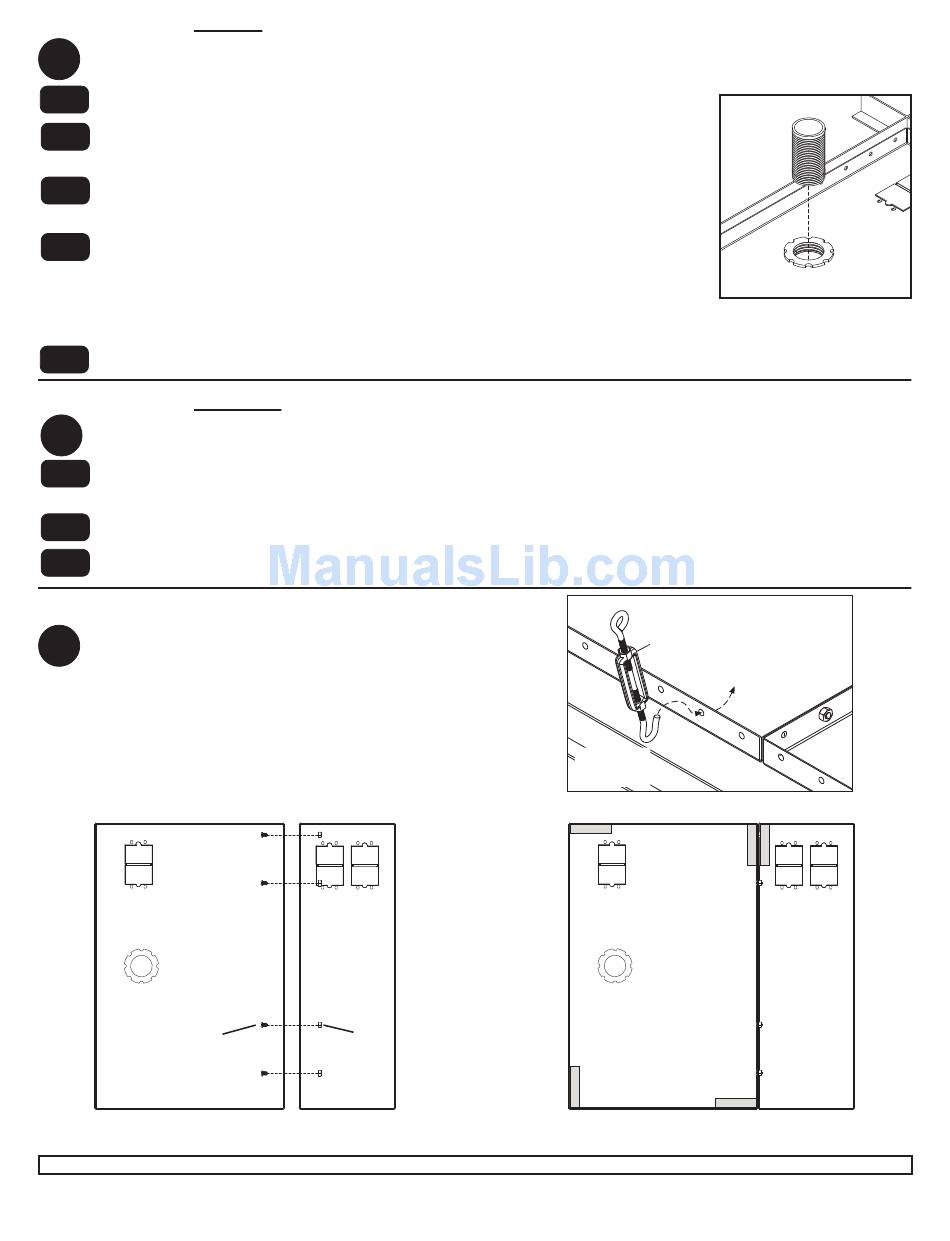

For Mounting Above Ceiling Tile
1
Place ceiling tray (A) in grid above 24" x 24" or 24" x 48" false ceiling tile with hole to center, left or right.
1-1
Place filler (A1) tray into gap.
1-2
Once placed where needed, through hole in ceiling tray (A), mark on false ceiling tile
where hole will be.
1-3
Cut out 2.25" hole in false ceiling tile. (Escutcheon Ring Accessory
(ACC 640) is recommended).
1-4
For flush mounting applications: From the top down, thread the flush mount
tube (M) down through the retaining collar in ceiling tray (A).
NOTE: Set screw included with projector mount will be installed
according to the instructions provided with the mount.
1-5
Skip to step 2.
For Mounting in Place of Ceiling Tile
1
Remove 24" x 24" or 24" x 48" false ceiling tile.
1-1 If using 24" x 48" ceiling tile, cut one tile in half and add another 24" ceiling runner in order to make a 24" x 24"
section.
1-2
Place ceiling tray (A) in 24" x 24" grid with hole to center, left, or right.
1-3
Place filler (A1) tray into gap.

Attaching Ceiling Tray to Filler Tray

2
Attach ceiling tray (A) to filler tray (A1) using four bolts (B) and
nuts (C) as shown in fig. 1.1. Hook turnbuckles (F) into ceiling
tray (A). Hook one turnbuckle through filler tray (A1) and ceiling
tray (A) where indicated by gray rectangles in illustration below.
OPTION 2: Use M5 x 10 mm socket screws (AA) and M5
nuts (BB) to attach ceiling tray (A) to filler tray (A1) in place of
fasteners 1/4"-20 x 3/8" screws (B) and 1/4"-20 nuts (C) if neces-
sary. Tighten M5 x 10 mm socket screws (AA) using
3 mm allen wrench (CC).
A
B
or
AA
Visit the Peerless Web Site at www.peerlessmounts.com
A1
C
or
BB
fig. 1.1
4 of 6
For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
F
CEILING
RUNNER
A
Gray rectangles show correct positions for
turnbuckles (F).
ISSUED: 02-13-08 SHEET #:128-9030-2 07-16-08
