American Standard 6047 Series Installation Instructions Manual

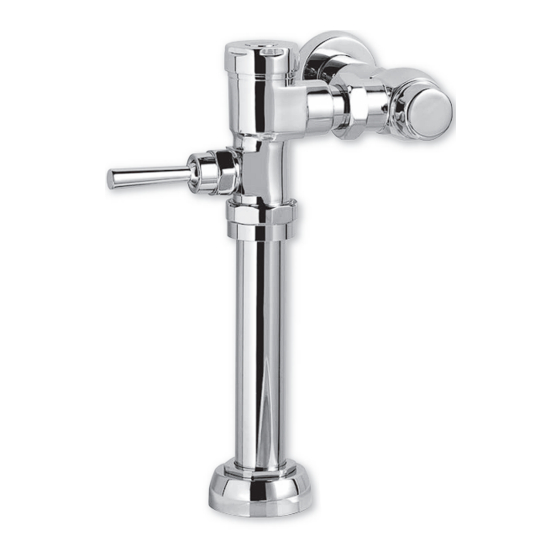

MANUAL FLUSH VALVE
Exposed Flushometer
for 1-1/2" top spud Toilets
Certified to comply with:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
© 2011 AS America, Inc.
M965022 Rev.1.9
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Faucets visit our website at: www.americanstandard.com
or U.S. customer's e-mail us at: faucetsupport@americanstandard.com
For Parts, Service, Warranty or other Assistance,
1-800-442-1902 (In Canada: 1-800-387-0369)
please call
FOR TOP SPUD A FOR TOP SPUD APPLICATIONS
CLOG RESISTA CLOG RESISTANT T T NT
• Self-cleaning piston va • Self-cleaning piston valve prevents clogging and reduces maintenance.
OPERATING PRESS OPERATING PRESSURE:
• Overall Range: 20-1 • Overall Range: 20-125 psi **
• Recommended: 25 psi (flowing) - 80 psi (static) • Recommended: 25
FLOW REQUIREMENT: FLOW REQUIREMEN
• 25gpm (94.6 L/min) • 25gpm (94.6 L/min).
• Flush valves include sw • Flush valves include sweat solder kit.
**Water pressure over 80 psi is not recommended with most
plumbing fixtures
(In Toronto Area only: 1-905-3061093) (In Toronto Area only: 1-905-3061093)
MODEL NUMBERS
6047 Series
7017 Series
