American Standard Ultima 6045.051 Installation Instructions Manual

American Standard Ultima 6045.051 Installation Instructions Manual

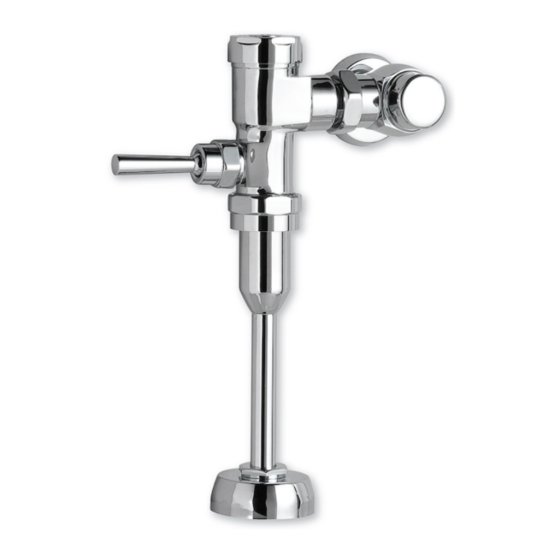

Urinal flush valve, piston-type 3/4" top spud, 0.5 gpf

Advertisement

Quick Links

Ultima
Urinal Flush Valve, Piston-Type
3/4" Top Spud, 0.5 gpf
Certified to comply with:
• ASSE 1037
• ADA Compliant
© 2019 AS America, Inc.
M965360 REV. 1.9 (5/19)
NOTE TO INSTALLER: Please give this manual to the customer after installation.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic
or e-mail us at: CRTTEAM@lixilamericas.com
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / (844) 278-8326
Manual
OPERATING PRE
OPERATING PRESSURE:
• 25 psi (flowing)
• 25 psi (flowing) - 80 psi (static)
FLOW REQUIRE
FLOW REQUIREMENT:
• 10gpm (37.9 L/m
• 10gpm (37.9 L/min).
(In Toronto Area only: 1-905-306-1093)
®
Products visit our website at: www.americanstandard-us.com
(In Canada: 1-800-387-0369)
MODEL NUMBERS
6045.051
7015.051

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultima 6045.051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Standard Ultima 6045.051

  • Page 1 M965360 REV. 1.9 (5/19) NOTE TO INSTALLER: Please give this manual to the customer after installation. NOTE TO INSTALLER: Please give this manual to the customer after installation. To learn more about American Standard Selectronic ® Products visit our website at: www.americanstandard-us.com or e-mail us at: CRTTEAM@lixilamericas.com...
  • Page 2 Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. All American Standard Products Are Water Tested At Our Factory. UNPACKING Some Residual Water May Remain In The Valve During Shipping.
  • Page 3: General Description

    Fig. 1 GENERAL DESCRIPTION: Roughing-in Dimensions FINISHED WALL MANUAL FLUSH VALVE, 0.5 GPF 38mm-127mm 108mm-133mm Exposed Flushometer (1-1/2-5") (4-1/4" to 5-1/4") for 3/4" Top Spud Fixtures Exclusive, self cleaning piston-operated flush valve. OPERATING PRESSURE: Overall Range: 20-125 psi ** SUPPLY DN 19mm Recommended: 20 psi (flowing)- (3/4"...
  • Page 4 INSTALL SWEAT SOLDER Fig.3 Fig.3a ADAPTER; Fig. 3 FINISHED WALL CENTER LINE OF Turn water supplies off CAUTION FIXTURE SPUD before beginning Note: Install Optional Sweat Solder Adapter (Supplied) for copper pipe supply line. Fig. 3. (A-B)= 1. Measure the distance (A) from the finished wall to the 32mm center of the inlet spud on the fixture.
  • Page 5 INSTALL FLUSH VALVE; Fig. 6a Fig. 6a & 6b 1. As shown in Fig. 6a, insert the side INLET FLANGE (1) on the FLUSH VALVE (2) into the SUPPLY STOP (3). Lubricate the INLET FLANGE O-RING (4) with water if necessary.
  • Page 6 If these items do need replacement they must be purchased separately or order the complete flush valve assembly from American Standard. 1. Remove COVER (1) from SUPPLY STOP (2) if installed. Fig. 9.
  • Page 7 Weekdays 8:00 a.m. to 7:00 p.m. EST Product names listed herein are trademar ks of AS A mer ica, Inc. ©2 019 ® To learn more about American Standard Selectronic Products visit our website at: www.americanstandard-us.com or e-mail us at: CRTTEAM@lixilamericas.com...
