INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier
Phone: 800-752-5582
Manual: 199348
or operating parameters may lead to the product's failure.
Save manual for future reference

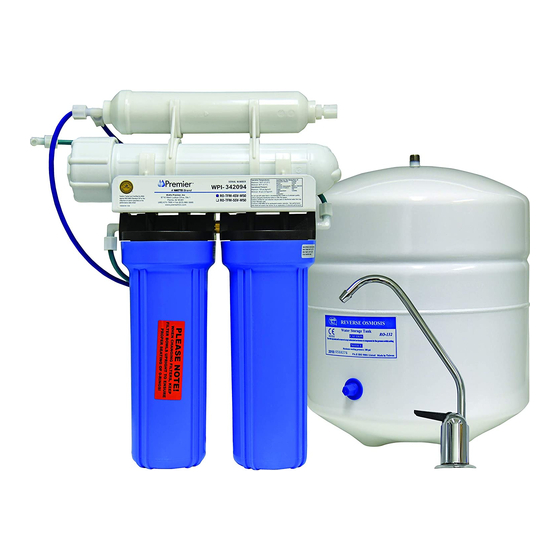

MODELS
RO-TFM-4SV /W50
RO-TFM-5SV /W50
PREMIER 25
performance data sheet.
8716 W Ludlow Drive, Suite 1
www.premierH2o.com
Warning
Physical removal of microbial
contamination agents in drinking water.
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Date: 09/06/2016
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Premier RO-TFM-W50
Summary of Contents for Premier RO-TFM-W50
- Page 1 Please read carefully before proceeding with installation. Your failure to follow any attached instructions or operating parameters may lead to the product’s failure. Save manual for future reference MODELS RO-TFM-4SV /W50 RO-TFM-5SV /W50 PREMIER 25 performance data sheet. Physical removal of microbial contamination agents in drinking water.
- Page 2 Thank you for your purchase of a state of the art Premier Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.
-
Page 3: Table Of Contents
Table of Contents Operational Parameters ........................4 Contents of Reverse Osmosis System .................... 4 Installation & Startup ....................4 Plumbing diagram and parts list ...................... 5 .................. 6 ..............6 ......................7 ......................8 ............9 ......................10 ........................ 10 Drain Saddle Tube Connection.......................11 .................. -
Page 4: Operational Parameters
5 Stage RO System has 3 vertical bowls. 4 Stage RO System has 2 bowls 1 Parts Bag 1 Manual If any of the items are missing please contact Premier prior to installing. INSTALLATION & STARTUP Tools Recommended For Installation... -
Page 5: Plumbing Diagram And Parts List
MEMBRANE HOUSING BLUE SHUT-OFF VALVE BLUE BLUE GREEN GREEN STORAGE TANK TANK STAND THE FOLLOWING MODELS CONTAIN A 50 GPD RO MEMBRANE PRE-INSTALLED: RO-TFM-4SV-W50 & KITCHEN RO-TFM-5SV-W50 SINK GREEN FEED WATER ADAPT-A-VALVE SEDIMENT CARBON CARBON MAIN WATER SUPPLY PRE-FILTER PRE-FILTER... - Page 6 (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Premier accepts no responsibility for damage resulting from the installation of faucet. Diamond tip bit recommended.
- Page 7 Premier Standard Faucet Installation Parts List Faucet Escutcheon Plate Full Circle Rubber Gasket Plastic Tube Insert Step 5 through the pre drilled hole in the sink/ counter until faucet is seated. Step 6 Connect Blue Tube from the RO to the Faucet Locate the blue 1/4”...
- Page 8 Premier Monitored (Top Mount) Faucet Installation A) Connect tubes to the RO faucet (Figure A) installation. To connect tubes, simply push them into their BLUE tube (Parts Bag) BLACK tube (Parts Bag) tube (Parts Bag) B) Mount the RO faucet (Figure B) 4.
- Page 9 Helpful Installation Tips for the Premier Top Mount Faucet During shipping/handling the tog gle bolt on your new faucet may push up out of position. Prior to the install, hold the faucet as shown in the picture and pull down on the wing nut.
- Page 10 Adapt-a-Valve Installation Caution: Water supply line to the system must be from the cold water supply line only. Hot water will severely damage your system. Verify contents prior to installation: Black Collet White Washer White Washer Cold (With Brass Fittings) (Without Brass Supply Supply...
-
Page 11: Drain Saddle Tube Connection
Installation of the drain saddle near a garbage disposal may cause the drain line to plug. If no other installation of drain line is available, Premier offers drain line installation kit (part number 164020) that can be used with garbage disposals. -
Page 12: Reverse Osmosis Module Mounting
Green Tube Connection Green Tube Step 17 on the plastic water feed valve making sure the tube is pushed in all the way to the tube stop. Reverse Osmosis Module Mounting Determine best location for the RO module to be mounted to allow Step 18 bracket, mark the location for the mounting screws on the cabinet the cabinet at the marked location. -
Page 13: Start Up Instructions
Start up Instructions Turn on the incoming cold water at the angle stop valve and the Step 1 Note: If you have connected your RO system to a refrigerator / ice maker, make sure the ice maker is have an in-line valve installed before the ice maker so it can easily be closed to prevent water Step 2 Step 3 temperature and water pressure. -
Page 14: Maintenance & Troubleshooting Six Month Maintenance
6 Month System Maintenance Items needed: Note: Step 1 Close the tank Ball valve. Step 2 Turn off the incoming water supply to the RO at the feed water valve. Step 3 may take a few minutes. Step 4 housing Note: If you own a four stage system it will not have the third stage. -
Page 15: Annual Maintenance
Annual Maintenance NOTICE: Sanitizing of unit is recommended - RO storage tank must be drained. NOTICE: If not sanitizing the system, skip to step 11 DANGER continue rinsing eye. Call a poison control center or doctor for treatment advice. system by turning the adapt-a-valve counter clockwise. Let the unit fill with water Step 5: Let the system sit idle for 1 minute Step 6: Drain the system completely draining the system again. -
Page 16: Membrane Replacement
TDS reduction falls below 75%. NOTE: A water sample may be sent to Premier for a free diagnosis of your membrane performance. To send a water sample, use two (2) clean containers and fill ½ cup of tap water in one container and ½ cup of reverse osmosis water in 2nd container. Clearly label each sample. -
Page 17: Check Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind the blue plastic cap. -
Page 18: Troubleshooting
TROUBLE SHOOTING Problem Cause Solution Premier sells a booster pump if home water pressure is low. Make sure water supply is turned on and feed water valve is all the way open. Crimps in tubing Check tubing and straighten or replace as necessary. -
Page 19: Product Technical & Warranty Information Performance Data Sheet
Peoria, AZ 85381 5 SV Deluxe, CRO-TFM-5SV, Ultra 5 and Pur-Tek, Premier 25, Premier RO-4, Premier RO-5, RO-TFM-4SV, RO-TFM-5SV 1. System to be used with municipal or well water sources treated and tested on regular basis to insure bacteriological safe quality. DO NOT use with water that... -
Page 20: Arsenic Fact Sheet
This Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. the independent laboratory standard testing conditions Premier has conducted additional reducing up to 67% of trivalent arsenic from the drinking water. -
Page 21: Service Record
Service Record Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2 nd stage 3rd stage Final Filter 1st stage Date Carbon Carbon Carbon Membrane Sediment (6 months) (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 21... -
Page 22: Limited Warranty
If any part of your Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 1 year of original retail purchase, Watts Premier will repair or, at Watts Premier’s option, replace the system at no charge.
