INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Save manual for future reference

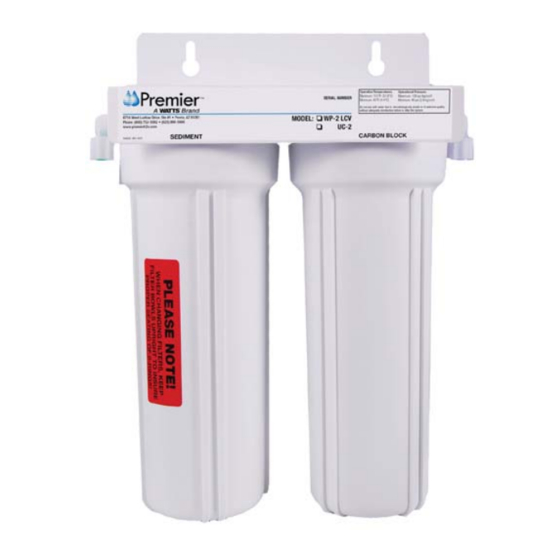

2-Stage Under Counter Filtration System
Model: WP-2 LCV
IMPORTANT
If you are unsure about installing your WATTS water filter, contact
a WATTS representative or consult a professional plumber.
CAUTION
Discard small parts remaining after the installation.
NOTICE
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
Be sure the floor under the water filter system is clean, level
and strong enough to support the unit.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier
www.premierh2o.com
199389
WARNING
WARNING
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
8716 W Ludlow Drive Suite #1
Peoria, AZ 85381
Page 1
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product's failure.
Keep this Manual for future reference.
USA: Tel. (800) 752-5582
Canada: Tel. (905) 332-4090
Manual Edition: 07/20/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-2 LCV and is the answer not in the manual?

Questions and answers

Summary of Contents for Premier WP-2 LCV

  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL Save manual for future reference 2-Stage Under Counter Filtration System Model: WP-2 LCV IMPORTANT If you are unsure about installing your WATTS water filter, contact WARNING a WATTS representative or consult a professional plumber. CAUTION Please read carefully before proceeding with installation.
  • Page 2 Page 2...
  • Page 3: Overview

    Thank you for your purchase of a state of the art Water Treatment system. The Premier WP-2 LCV water treatment system contains a heavy duty lead, cyst, and VOC reducing carbon block filter. This specialty formulated block is capable of reducing lead, cysts as well as harmful Chemicals. It is estimated that VOC’s are present in one-fifth of the nation’s water supplies.
  • Page 4: Table Of Contents

    Table of Contents Overview ..........................................3 System Maintenance ......................................3 BEFORE INSTALLATION Operational Parameters ......................................5 Contents of Filter System .......................................5 Tools Recommended For Installation ..................................5 Using Quick-Connect Fittings ....................................6 System Diagram ........................................7 INSTALLATION Drill a Hole for the Faucet in a Porcelain Sink ................................8 Or Punch a Hole for the Faucet in a Stainless Steel Sink ............................8 Faucet Installation .........................................9 Adapt-a-Valve Installation ....................................10...
  • Page 5: Operational Parameters

    Contents of Filter System Please make sure all of the items listed below are contained in the box. If any of the items are missing please contact Watts Premier at 800-752-5582 prior to installing. WP-2 Filtration System (with filters installed)
  • Page 6: Using Quick-Connect Fittings

    Using Quick-Connect Fittings Cutting Connecting Make certain to push the tubing completely into the con- nector until it comes into contact with the internal tubing stop. The collet (gripper) has stainless steel teeth which hold the tube firmly in position while the O-ring provides a Cut the tube square.
  • Page 7: System Diagram

    System Diagram FAUCET 1/4” BLUE TUBE ADAPT VALVE 1/4” GREEN TUBE COLD WATER ANGLE-STOP (SUPPLY) SEDIMENT CARBON FILTER BLOCK Parts List Item Part# Description WP560080 ADAPT-A-VALVE WP104017 SEDIMENT FILTER WP101014 LCV CARBON BLOCK FILTER WP116023 CHROME NON AIR-GAP FAUCET WP500017 FILTER HOUSING ASSEMBLY(LID & BOWL) WP113029 O-RING WP125034 1/4”C X 1/4”MPT ELBOW Page 7...
  • Page 8: Installation

    INSTALLATION Drill a Hole for the Faucet in a Porcelain Sink For Marble Counter-tops, we recommend contacting a qualified contractor for drilling a hole in a NOTICE marble counter-top. Note: Most sinks are predrilled with 1½” or 1¼” diameter hole that you can use for your Drinking Water faucet. (If you are already using it for a sprayer or soap dispenser, see Step 1).
  • Page 9: Faucet Installation

    Faucet Installation Parts List for Faucet Item Description Escutcheon Plate Black Rubber Washer Black Locating Washer (use where A 1/2” hole is available, reverse when mounting on stain- less steel or when using drilled hole) Lock Washer Insert Plastic Sleeve 1/4”...
  • Page 10: Adapt-A-Valve Installation

    Adapt-a-Valve Installation Water supply line to the system must be from the cold water supply line only. Hot water will NOTICE severely damage your system. Do not use Teflon tape with the Adapt-A-Valve™. NOTICE Faucet Line Faucet Connection Line from Cold Water Supply Parts List for Adapt-A-Valve...
  • Page 11: Operation

    OPERATION Start up Instructions Congratulations! You have completed the installation of your new water filtration system. Please Follow the Startup Instructions. Step 1: Turn on water supply at angle stop and open the Adapt-a-Valve. Turn faucet handle to the open position to start the flow of water through the unit.
  • Page 12: Maintenance

    MAINTENANCE Filter Change Premier recommends changing the filter element every 6 months. However filter life may vary depending on local water conditions and water use Use Premier’s replacement cartridge only. Other filters may look the same, but only filters by...
  • Page 13: Service Record

    Service Record WP-2 LCV Date of Purchase: _______________ Model Number: _______________ Serial Number: _______________ Date of Install: _________________ Installed by: __________________ Sediment Filter Carbon Block Sediment Filter Carbon Block Date (6 Months) (6 Months) Date: (6 Months) (6 Months) Page 13...
  • Page 14: Limited Warranty

    What your Warranty Covers: If any part of your WP-2 LCV is defective in workmanship (excluding replaceable filters ), return unit after obtaining a return authorization (see below), within 1 year of the original retail purchase, Watts Premier will repair or, at Watts Premier’s option, replace the system at no charge.
