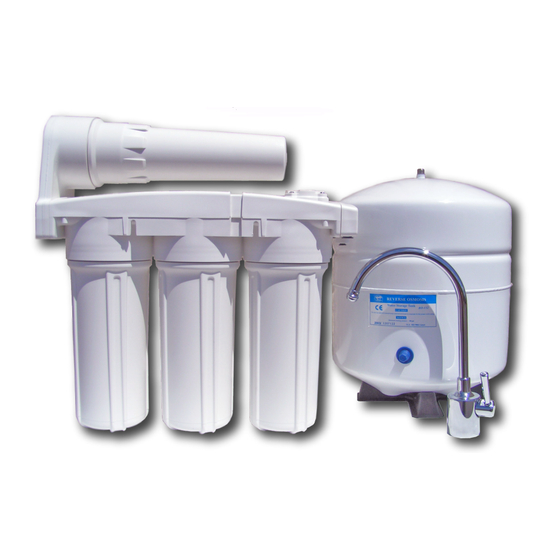

Premier WP-4V Installation, Operation And Maintenance Manual
  1. Manuals
  2. Brands
  3. Premier Manuals
  4. Water Filtration Systems
  5. WP-4V
  6. Installation, operation and maintenance manual

Premier WP-4V Installation, Operation And Maintenance Manual

Hide thumbs Also See for WP-4V:
Table of Contents

Advertisement

Quick Links

Download this manual

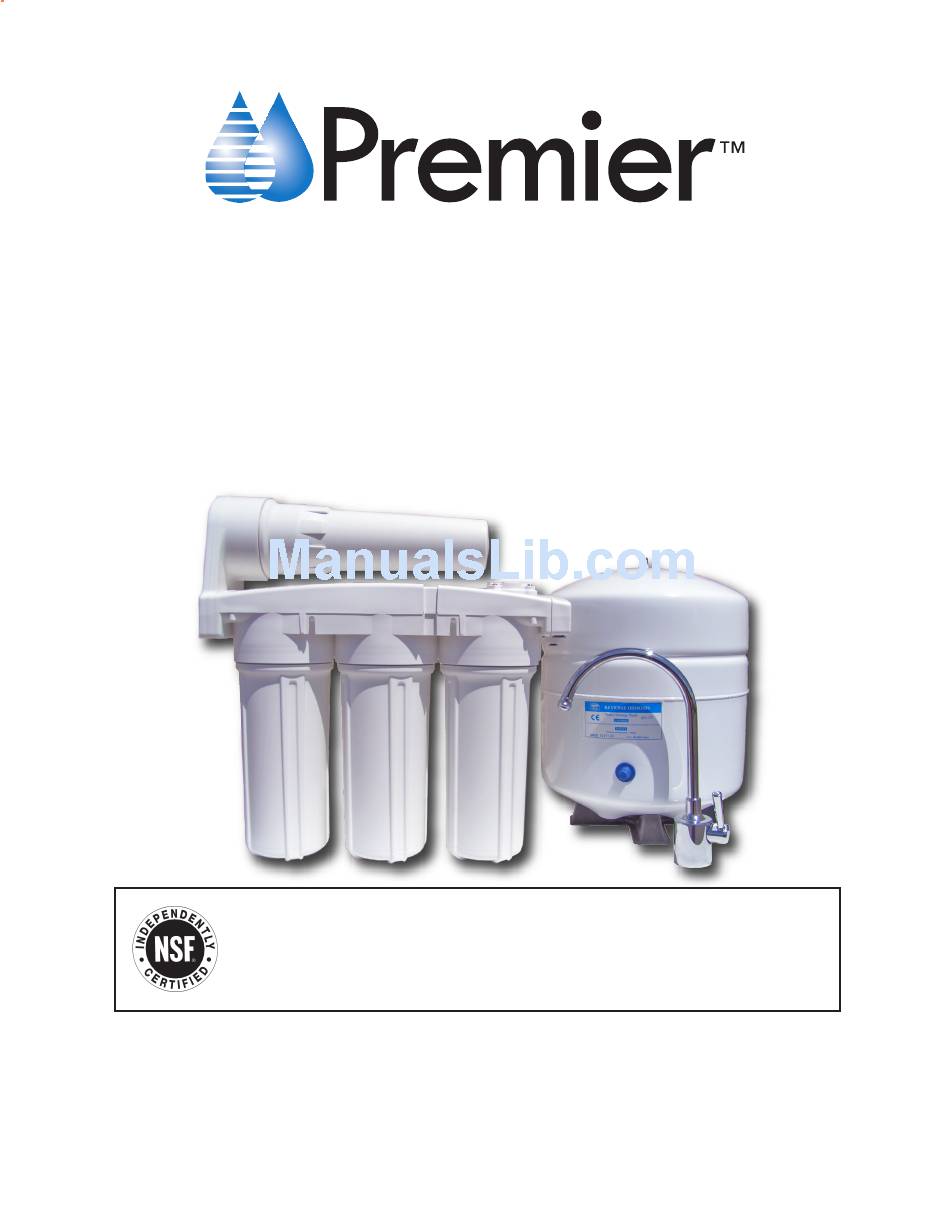

INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
Refer to enclosed warranty and operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N: 199393
or operating parameters may lead to the product's failure.
Save manual for future reference
System Tested and certified by NSF International against ANSI/NSF
Standard 53 & 58 for the reduction of the claims specified on the
8716 W Ludlow Drive Suite #1
www.premierH2o.com
Warning
MODEL
WP-4V
performance data sheet.
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Edition: 02/18/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-4V and is the answer not in the manual?

Questions and answers

Related Manuals for Premier WP-4V

Summary of Contents for Premier WP-4V

  • Page 1 Standard 53 & 58 for the reduction of the claims specified on the performance data sheet. Refer to enclosed warranty and operating parameters to ensure proper use with your water supply. Watts Premier, Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381 Phone: 800-752-5582 www.premierH2o.com...
  • Page 2 Thank you for your purchase of a state of the art Watts Premier Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.

  • Page 3: Table Of Contents

    With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Watts Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1-800-752-5582 (outside USA 480-675-7995) or refer to our on-line trouble shooting section at www.premierH2o.com.

  • Page 4: Operational Parameters

    Watts Premier supplies speciality filters (part number 107008) that can be used if copper tubing follows the Reverse Osmosis unit. Be sure to follow any state or local regulations during installation.

  • Page 5: Drill A Hole For The Faucet In A Porcelain Sink

    RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Watts Premier accepts no responsibility for damage resulting from the installation of faucet.

  • Page 6: Watts Faucet Installation

    WATTS Premier Monitored (Top Mount) Faucet Installation A) Connect tubes to the RO faucet (Figure A) This RO faucet is equipped with quick connect fittings for easy tube installation. To connect tubes, simply push them firmly into their corresponding fitting on the RO faucet until fully seated.

  • Page 7: Adapt-A-Valve Installation (Plastic / Brass)

    Installation of the drain saddle near a garbage disposal may cause the drain line to plug. If no other installation of drain line is available, Watts Premier offers drain line installation kit (part number 164020) that can be used with garbage disposals.

  • Page 8: Drain Saddle Installation Continued

    Drain Saddle Installation Continued... The drain saddle must be mounted at least 1 ½” above the nut of the Step 10 P-trap or cross bar from the garbage disposal to insure proper drainage. Assemble the drain saddle around the drain pipe at the best available location.

  • Page 9: Reverse Osmosis Module Mounting

    Reverse Osmosis Module Mounting Step 17 Determine best location for the RO module to be mounted to allow for future system maintenance. The parts bag has 2 self tapping screws. Using an electric drill with a Phillips bit, screw them into the cabinet wall 6”...

  • Page 10: How To Use Quick Connect Fittings

    “FAUCET”. Make sure the tube is pushed in all the way to the tube stop. Note: A connection to a refrigerator / ice maker may be tee’d into this blue tube. Watts Premier offers an ice maker install kit part # 500102 (See Page 22). Page 10...

  • Page 11: Start Up Instructions

    Don’t Forget To Register! Register by mail, phone, fax or internet. Watts Premier uses this information only to provide a filter change reminder notice. Pre-filters should be changed every 6 months and VOC filter annually. You may register your system via our website at www.premierH2o.com or call 1-800-752-5582 (within USA only) / FAX#: 623-866-5666.

  • Page 12: Month System Maintenance

    6 Month System Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.premierH2o.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009-White End Caps) Step 1 Turn off the incoming water supply to the RO by turning the needle valve on the adapt-a-valve clockwise until it stops.

  • Page 13: Annual Maintenance

    Annual Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.premierH2o.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009-White end caps) √ Stage 4 - VOC Carbon Block (part #: 101013-Blue end caps) √...

  • Page 14: Membrane Replacement

    75%. Note: A water sample may be sent to Watts Premier for a free diagnosis of your membranes performace. To send a water sample, use two (2) clean containers and fill ½ cup of tap water in one container and ½ cup of reverse osmosis water in 2nd container. Clearly label each sample.

  • Page 15: Checking Air Pressure In The Tank

    Check Air Pressure in the Tank Check air pressure only when tank is empty of water! Important: Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind a blue plastic cap.

  • Page 16: Trouble Shooting

    1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary.

  • Page 17: Arsenic Fact Sheet

    This Watts Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent...

  • Page 18: California Certification

    California Certification Page 18...

  • Page 19: Performance Data Sheets

    Efficiency - 9.58% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage.

  • Page 20: Voc Performance Data Sheet

    VOC Performance Data Sheet Watts Premier Inc. 8716 W Ludlow Drive Sutie #1 Peoria, AZ 85381 USA Influent Challenge Maximum Substance Percent Reduction Concentration Permissible Product (mg/L unless noted) Water Concentration >98% 0.05 0.001 ALACHLOR >97% 0.003 ATRAZINE BENZENE >99% 0.081...

  • Page 21: Unit Drawing

    *Optional Upgrade Page 21...

  • Page 22: Other Products

    Other Products from WATTS Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are just few of the items we have to offer. Visit our website at www.premierH2o.com or call our Customer Service Representatives at 1-800-752-5582 (inside USA) 1-480-675-7995 (outside USA) for more products.
  • Page 23 116110 - Black (Non-Monitored) *$60.47 each Watts Premier Ice Maker Filter Kit - High efficiency replaceable filter that can last up to 5 years or 20,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers.
  • Page 24 Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Iron oxide (rust water) √ Free Chlorine (CL-) √ Dirt, sediment √ Combined Chlorine (Sodium Hypochlorite) √...

  • Page 25: Warranty Registration

    Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies.

  • Page 26: Warranty Registration

    Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 8716 W Ludlow Drive Sutie #1...

  • Page 27: Service Record

    Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 3rd stage 2nd stage 4th stage 1st stage Date Membrane Carbon VOC Block Sediment (2-5 years) (6 months) (1 year) (6 months) NOTES: Page 27...

  • Page 28: Limited Warranty

    Limited Warranty What your Warranty Covers: If any part of your WATTS PREMIER Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
