Installation, OPERATION AND MAINTENANCE MANUAL
Save manual for future reference

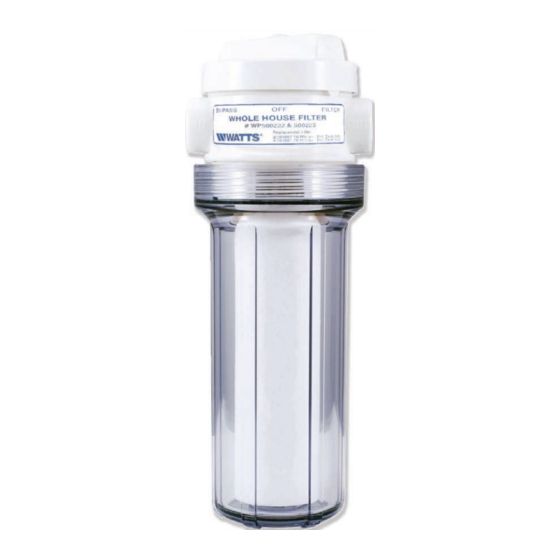

Whole House Filter
Model: WH-LD
WARNING
!
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product's failure.
Keep this Manual for future reference.
WARNING
!
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
IMPORTANT
If you are unsure about installing your WATTS water filter, contact
a WATTS representative or consult a professional plumber.
CAUTION
!
Test the water periodically to verify that the system is performing satisfactorily.
Discard small parts remaining after the installation.
NOTICE
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
Be sure the floor under the water filter system is clean, level
and strong enough to support the unit.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
www.premierh2o.com
P/N WP199953
8716 W Ludlow Drive Suite #1
Peoria, AZ 85381
Page 1
USA: Tel. (800) 752-5582
Canada: Tel. (905) 332-4090
Manual Edition: 04/27/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH-LD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Premier WH-LD

  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL Save manual for future reference Whole House Filter Model: WH-LD WARNING Please read carefully before proceeding with installation. Your failure to follow any attached instructions or operating parameters may lead to the product’s failure. Keep this Manual for future reference.
  • Page 2: Table Of Contents

    Table of Contents Operational Parameters ..............................3 Contents of Whole House Filter ............................3 Tools Recommended For Installation ..........................3 Prior to Installation ................................3 Installation ..................................4 Start Up .................................... 5 Operating Instructions ............................... 5 Suggested Maintenance ..............................5 Product Registration .................................
  • Page 3: Operational Parameters

    Contents of Whole House Filter Please make sure all of the items listed below are contained in the box. If any of the items are missing please contact Watts Premier at 800-752-5582 prior to installing. ‰ Filter housing with built-in By-Pass Valve ‰...
  • Page 4: Installation

    Installation Lid with Built-in By-pass Valve (3/4” FPT Ports) Sediment Filter (PN# 304007) O-ring (PN# 252235) Filter Bowl Tighten Loosen Water Heater Wrench (PN# WP164002 - Not Shown) Figure 1: There are several ways to plumb your whole house Filter into your existing water line.
  • Page 5: Start Up

    Step 7: Cut the water line where the Whole House Filter is to be installed. Copper plumbing needs to be cleaned & de-burred of any imperfections. Make sure the installation location allows for easy servicing of the system, including a clearance beneath the filter bowl for filter changes. Step 8: Plumb waterline to system.
  • Page 6: Filter Replacement Procedure

    Filter Replacement Procedure Step 1: Shut off the water to the filter housing by turning the bypass valve to “BYPASS” or “OFF” Step 2: The bowl of the system can be removed by turning it clockwise (see Figure 1). Use the supplied filter wrench to loosen the housing.
  • Page 7 This page intentionally left blank...
  • Page 8: Limited Warranty

    For warranty service, call 800-752-5582 for a return authorization number. Then, ship your unit to our factory, freight and insurance prepaid, with proof of date of original purchase. Please include a note stating the problem. Watts Premier will repair it, or replace it, and ship it back to you prepaid.
