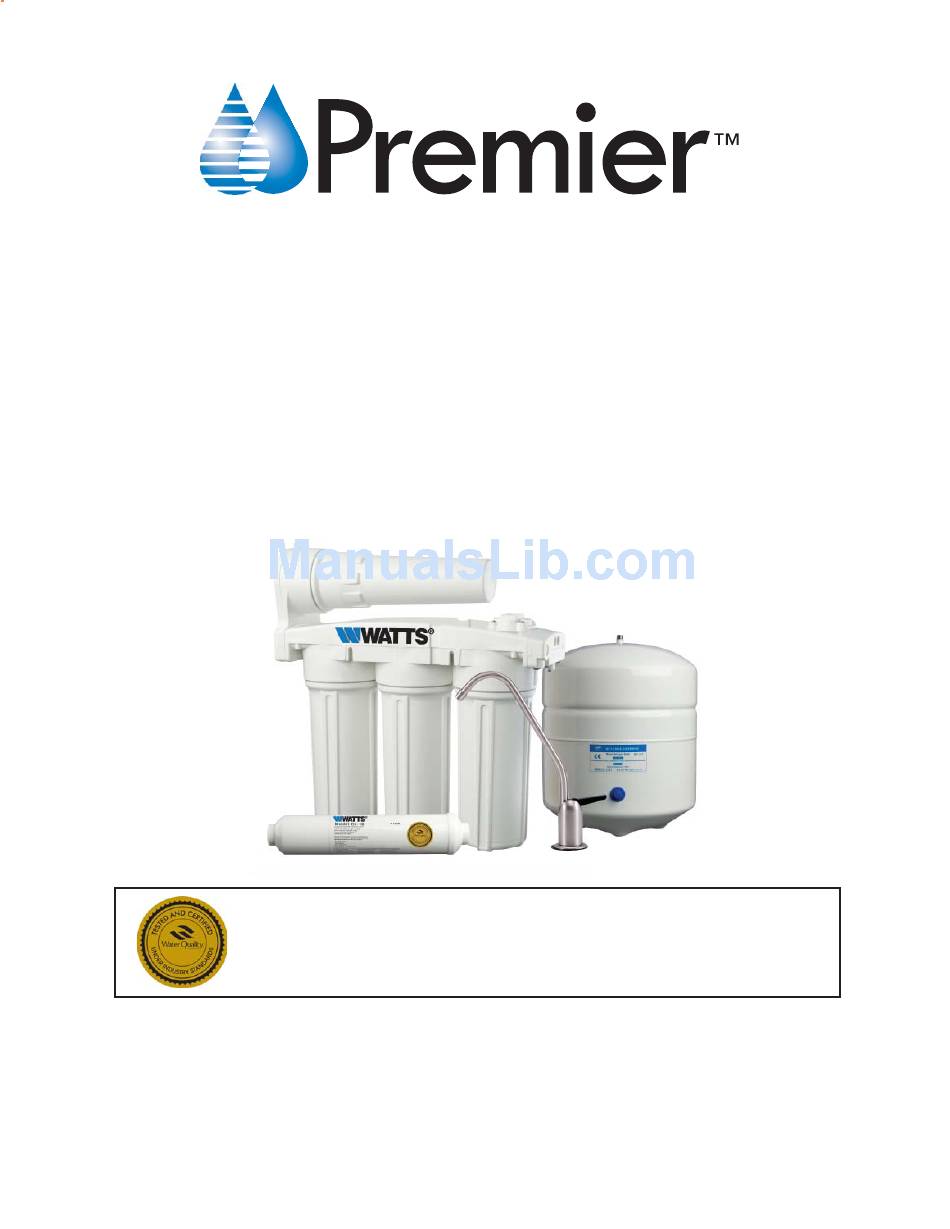

INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the products failure and possible damage to property.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Premier, Inc.
Phone: 800-752-5582
P/N 199349
Save manual for future reference
MODEL
WP-5 WP5-50 KP-5 RO-5M
System Tested and certifi ed by WQA against NSF/ANSI
Standard 58 for the reduction of the claims specifi ed on the
performance data sheet.
8716 W Ludlow Drive Suite #1
www.premierh2o.com
Warning
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Edition: 01/22/2015
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Premier WP-5
Summary of Contents for Premier WP-5
- Page 1 Save manual for future reference MODEL WP-5 WP5-50 KP-5 RO-5M System Tested and certifi ed by WQA against NSF/ANSI Standard 58 for the reduction of the claims specifi ed on the performance data sheet.
- Page 2 Giardia. There may also be some local water issues in your area such as high levels of lead and copper. This Premier water treatment system has been designed and tested to provide you with high quality water for years to come.
-
Page 3: Table Of Contents
Procedure for Extended Non-Use (More than 2 months) .............. 16 Troubleshooting ..........................17 Product Technical & Warranty Information Performance Data Sheet ......................18-19 Arsenic Fact Sheet ......................... 20 Other Products from Premier..................... 21-23 Warranty Registration ........................ 24-25 Service Record ..........................26 Limited Warranty ..........................27 Page 3... -
Page 4: Operational Parameters
1 Module – (Filters Pre-Installed) 1 Parts Bag – With a 6” or 10” Final Filter 1 Faucet Bag 1 Manual If any of the items are missing please contact Premier prior to installing. INSTALLATION & STARTUP INSTALLATION & STARTUP Tools Recommended For Installation 1 1/4"... -
Page 5: Plumbing Diagram And Parts List
Parts List Item Part # Description 101009 Carbon Block-10 Inch-5M 104017 Sediment Filter-10 Inch-5M 110016 RO Membrane 35GPD 110019 RO Membrane 50GPD - Upgrade 113018 Filter Bowl 113035 Membrane Vessel 113041 O-Ring Filter Bowl 113045 O-Ring Membrane Vessel 116001 Faucet-AG-Chrome 119007 Tank-Pressure 3GAL White 125032... -
Page 6: Drill A Hole For The Reverse Osmosis Faucet
(If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Premier accepts no responsibility for damage resulting from the installation of faucet. Diamond tip bit recommended. -
Page 7: Standard Faucet Installation
PremierH2o Standard Faucet Installation Parts List Faucet Black Drain Tube (3/8” Black) Red Tube 1/4” Escutcheon Plate Full Circle Rubber Gasket Slotted Metal Washer Plastic Sleeve Plain Washer Hex Nut Washer Hex Nut Plastic Tube Insert White Plastic Delrin Sleeve Water Connector Nut Blue Tube 1/4”... -
Page 8: Adapt-A-Valve Installation
Adapt-a-Valve Installation Caution: Water supply line to the system must be from the cold water supply line only. Hot water will severely damage your system. Verify contents prior to installation: Black Collet ( 1 ) - Plastic Adapt-a-Valve with black collet ( 1 ) - Brass Adapter no washer ( 1 ) - Brass Adapter with black washer ( 1 ) - White rubber washer... -
Page 9: Drain Saddle Installation
Installation of the drain saddle near a garbage disposal may cause the drain line to plug. If no other installation of drain line is available, Premier offers drain line installation kit (part number 164020) that can be used with garbage disposals. -
Page 10: Green Tube Connection
Green Tube Connection Green Tube Step 16 Locate green tube attached to the RO Module. Insert the open end of the green 1/4” tube into the open 1/4” quick connect fi tting on the plastic water feed valve making sure the tube is pushed in all the way to the tube stop. -
Page 11: Final Polishing Filter Installation
A connection to a refrigerator / ice maker may be tee’d into this blue tube and should be spliced in between the fi nal fi lter and the RO faucet. Premier offers an ice maker install kit part # 500010 (See Page 22). Page 11... -
Page 12: Start Up Instructions
Don’t Forget To Register! Register by phone, fax, mail or internet. Premier uses this information only to provide you with a fi lter change reminder service. Pre-fi lters should be changed every 6 months and the fi nal in-line fi lter annually. You may register your system via our web site at www.premierh2o.com or call 1-800-752-5582 (within USA only) / FAX#: 450-675-7995. -
Page 13: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING MAINTENANCE & TROUBLESHOOTING 6 Month System Maintenance *Order fi lters by calling 1-800-752-5582 or buy online at www.premierh2o.com. Items needed: Stage 1 - Sediment Filter (part #: 104017) Stage 2 & 3 - Carbon Block Filter (part #: 101009-White End Caps) Note: The fi... -
Page 14: Annual Maintenance
Annual Maintenance *Order fi lters by calling 1-800-752-5582 or buy online at www.premierh2o.com. Stage 1 - Sediment Filter (part #: 104017) Stage 2 & 3 - Carbon Block Filter (part #: 101009-White end caps) Stage 5 - 10” Final Polishing Filter (part # 100017) 1/2 Cup of hydrogen peroxide or common household bleach. -
Page 15: Membrane Replacement
Premier recommends replacing the membrane when TDS reduction falls below 75%. Note: A water sample may be sent to Premier for a free diagnosis of your membranes performance. To send a water sample, use two (2) clean containers and fi ll ½ cup of tap water in one container and ½... -
Page 16: Check Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind the blue plastic cap. -
Page 17: Troubleshooting
1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Make sure water supply is turned on and feed water valve is all the way open. -
Page 18: Performance Data Sheet
Effi ciency - 9.58% Depending on water chemistry, water temperature, and water pressure Premier’s R.O. Systems production and performance will vary. Effi ciency rating means the percentage of the infl uent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. - Page 19 EFFICIENCY - 6.08% Depending on water chemistry, water temperature and water pressure Premier’s RO Systems production and performance will vary. Effi ciency rating means the percentage of the infl uent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage.
-
Page 20: Arsenic Fact Sheet
fi nd out if free chlorine or combined chlorine is used in the water system. This Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to... -
Page 21: Other Products From Premier
Other Products from Premier Premier has other fi ne water fi ltration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are just few of the items we have to offer. Visit our web site at www.premierh2o.com or call our Customer Service Representatives at 1-800-752-5582 (inside USA) 1-480-675-7995 (outside USA) for more products. - Page 22 Top Mount Faucets by Premier These attractively designed faucets feature a long reach spout to compliment all styles of kitchen decor. The unique top mount design allows for easy above counter installation. The Monitored version of this faucet has an LED light that turns red to notify you for fi...
- Page 23 Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. Free Chlorine (CL-) Iron oxide (rust water) Combined Chlorine (Sodium Hypochlorite) ...
-
Page 24: Warranty Registration
We want to offer you four ways to communicate with us. 1.Online, 2.Fax, 3.Telephone, and 4. Mail the form below. By registering your product you will receive the full benefi t of our warranty. Premier will also send you a semiannual fi lter change reminder beginning six months from date of installation. -
Page 25: Warranty Registration
Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on fi le for two years. Insert into envelope and return to Premier Premier 8716 W Ludlow Drive Suite #... -
Page 26: Service Record
Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2 nd stage 3rd stage Final Filter 1st stage Date Carbon Carbon Carbon Membrane Sediment (6 months) (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 26... -
Page 27: Limited Warranty
What your Warranty Covers: If any part of your Premier Reverse Osmosis System is defective in workmanship (excluding replaceable fi lters and membranes), return unit aft er obtaining a return authorization (see below), less tank, within 3 year of original retail purchase, Premier will repair or, at Premier’S option, replace the system at no charge.
