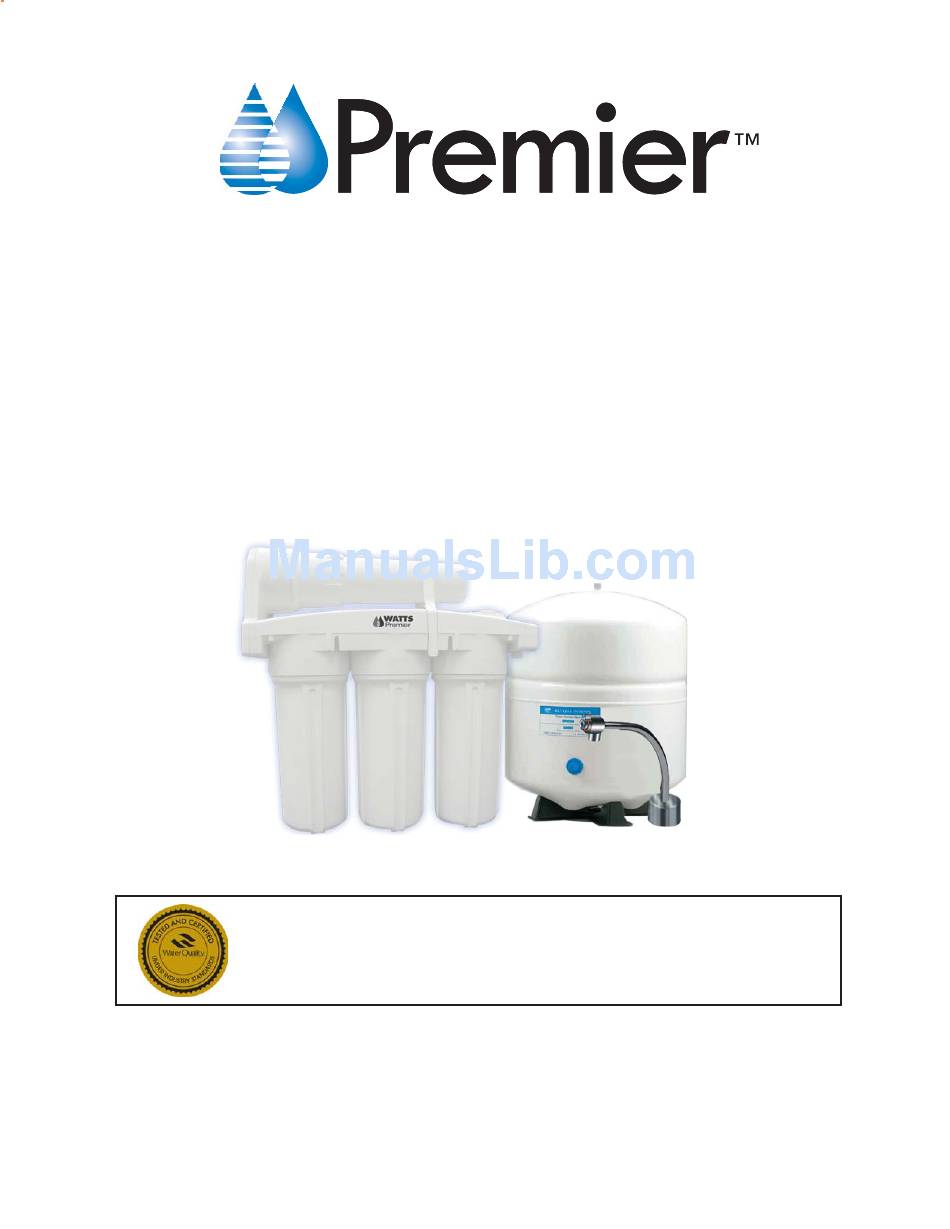

INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the products failure and possible damage to property.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Premier, Inc.
Phone: 800-752-5582
P/N: 199214
Save manual for future reference

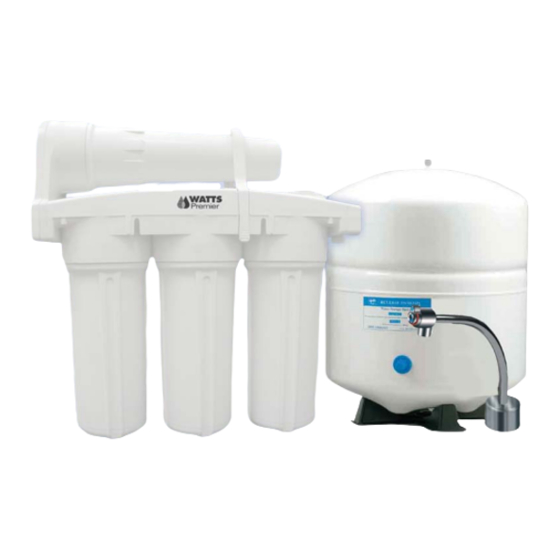

MODEL
WP-4 WP4-50 KP-4 RO-4M
System Tested and certifi ed by WQA against NSF/ANSI
Standard 58 for the reduction of the claims specifi ed on the
performance data sheet.
8716 W Ludlow Drive Suite #1
www.premierh2o.com
Warning
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Edition: 01/22/15
Advertisement
Table of Contents
Related Manuals for Premier WP-4
Summary of Contents for Premier WP-4
- Page 1 Save manual for future reference MODEL WP-4 WP4-50 KP-4 RO-4M System Tested and certifi ed by WQA against NSF/ANSI Standard 58 for the reduction of the claims specifi ed on the performance data sheet.
- Page 2 Giardia. There may also be some local water issues in your area such as high levels of lead and copper. This Premier water treatment system has been designed and tested to provide you with high quality water for years to come.
-
Page 3: Table Of Contents
With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1-800-752-5582 (outside USA 480-675-7995) or refer to our on-line trouble shooting at www.premierh2o.com. -
Page 4: Operational Parameters
Premier supplies speciality fi lters (part number 107008) that can be used if copper tubing follows the Reverse Osmosis unit. Be sure to follow any state or local regulations during installation. -
Page 5: Drill A Hole For The Faucet In A Porcelain Sink
RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Premier accepts no responsibility for damage resulting from the installation of faucet. -
Page 6: Faucet Installation
Standard Faucet Installation Step 6 Remove nut (item 11) and blue tubing (item 12) from faucet (Leave the nut and plastic delrin sleeve (item 10) on the blue tube). Step 7 Feed both the red and black tubing through the pre drilled hole in the sink/counter until faucet is seated. -
Page 7: Adapt-A-Valve Installation
Installation of the drain saddle near a garbage disposal may cause the drain line to plug. If no other installation of drain line is available, Premier offers drain line installation kit (part number 164020) that can be used with garbage disposals. -
Page 8: Drill Hole And Connect 3/8" Black Tube From Faucet To The Drain Saddle
Drill hole and Connect 3/8” Black Tube from Faucet to the Drain Saddle IMPORTANT: The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from faucet to drain saddle to allow for proper drainage. -
Page 9: Connect Blue Tube From "Tank" Port On Ro Module To The Tank
Connect Blue Tube from “TANK” Port on RO Module to the Tank Step 22 Position tank in desired location. Stand it upright or lay it on its side (using the black plastic stand). Measure the blue tube from the RO module port marked “TANK” over to the tank and cut it to desired length. -
Page 10: Connect The Red Tube From Faucet To Ro Module
Make sure the tube is pushed in all the way to the tube stop. Note: A connection to a refrigerator / ice maker may be tee’d into this blue tube. Premier offers an ice maker install kit part # 500102 (See Page 22). Page 10... -
Page 11: Start Up Instructions
Don’t Forget To Register! Register by mail, phone, fax or internet. Premier uses this information only to provide a fi lter change reminder notice. Pre-fi lters should be changed every 6 months and Final Polishing fi lter annually. You may register your system via our website at www.premierh2o.com or call 1-800-752-5582 (within USA only) / FAX#: 623-866-5666. -
Page 12: Month System Maintenance
Note: The KP-4 R.O. unit is equipped with annual fi lters, therefore require only one annual change. Stage 1 - Sediment Filter (part #: 104017) Stage 2 - Carbon Filter Stage 4 - Carbon Filter • Part#:101009: WP-4, WP4-50 Part#:101009 • Part#:100037: KP-4 Step 1 Turn off the incoming water supply to the RO at the adapt-a-valve. -
Page 13: Annual Maintenance
Annual Maintenance *Order fi lters by calling 1-800-752-5582 or buy online at www.premierh2o.com. Stage 1 - Sediment Filter (part #: 104017) Stage 2 & 4 - Carbon Block Filter (part #: 101009-White end caps) 1/2 Cup of hydrogen peroxide or common household bleach. Sanitizing of unit is recommended. -
Page 14: Membrane Replacement
Premier recommends replacing the membrane when TDS reduction falls below 75%. Note: A water sample may be sent to Premier for a free diagnosis of your membranes performace. To send a water sample, use two (2) clean containers and fi ll ½ cup of tap water in one container and ½... -
Page 15: Checking Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind a blue plastic cap. -
Page 16: Trouble Shooting
1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary. -
Page 17: Arsenic Fact Sheet
fi nd out if free chlorine or combined chlorine is used in the water system. This Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to under 0.010... -
Page 18: Performance Data Sheet
Effi ciency - 9.58% Depending on water chemistry, water temperature, and water pressure Premier’s R.O. Systems production and performance will vary. Effi ciency rating means the percentage of the infl uent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. -
Page 19: One Piece Manifold Drawing / Parts List
Item Part # Description 101009 Carbon Block-10 Inch-5M 104017 Sediment Filter-10 Inch-5M 110016 RO Membrane 35GPD 110019 RO Membrane 50GPD 113018 Filter Bowl 113035 Membrane Vessel 113041 O-Ring Filter Bowl 113045 O-Ring Membrane Vessel 116001 Faucet-AG-Chrome 119007 Tank-Pressure 3GAL White 125032 Elbow Fitting 3/8”... -
Page 20: Other Products
Other Products from Premier Premier has other fi ne water fi ltration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer. - Page 21 *$69.95/ea *All prices subject to change without notice. Premier Ice Maker Filter Kit - High effi ciency replaceable fi lter that can last up to 5 years or 20,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers.
- Page 22 Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. Iron oxide (rust water) Free Chlorine (CL-) Dirt, sediment Combined Chlorine (Sodium Hypochlorite) ...
-
Page 23: Warranty Registration
We want to offer you four ways to communicate with us. 1.Online, 2.Fax, 3.Telephone, and 4. Mail the form below. By registering your product you will receive the full benefi t of our warranty. Premier will also send you a semiannual fi lter change reminder beginning six months from date of installation. -
Page 24: Warranty Registration
Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on fi le for two years. Insert into envelope and return to Premier Premier 8716 W Ludlow Drive Suite #1... -
Page 25: Service Record
Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2nd Stage 4th Stage 1st Stage Date Carbon Carbon Membrane Sediment (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 25... -
Page 26: Limited Warranty
What your Warranty Covers: If any part of your Premier Reverse Osmosis System is defective in workmanship (excluding replaceable fi lters and membranes), return unit aft er obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, Premier will repair or, at Premier’S option, replace the system at no charge.
