MPX R1 Version 2 User Guide

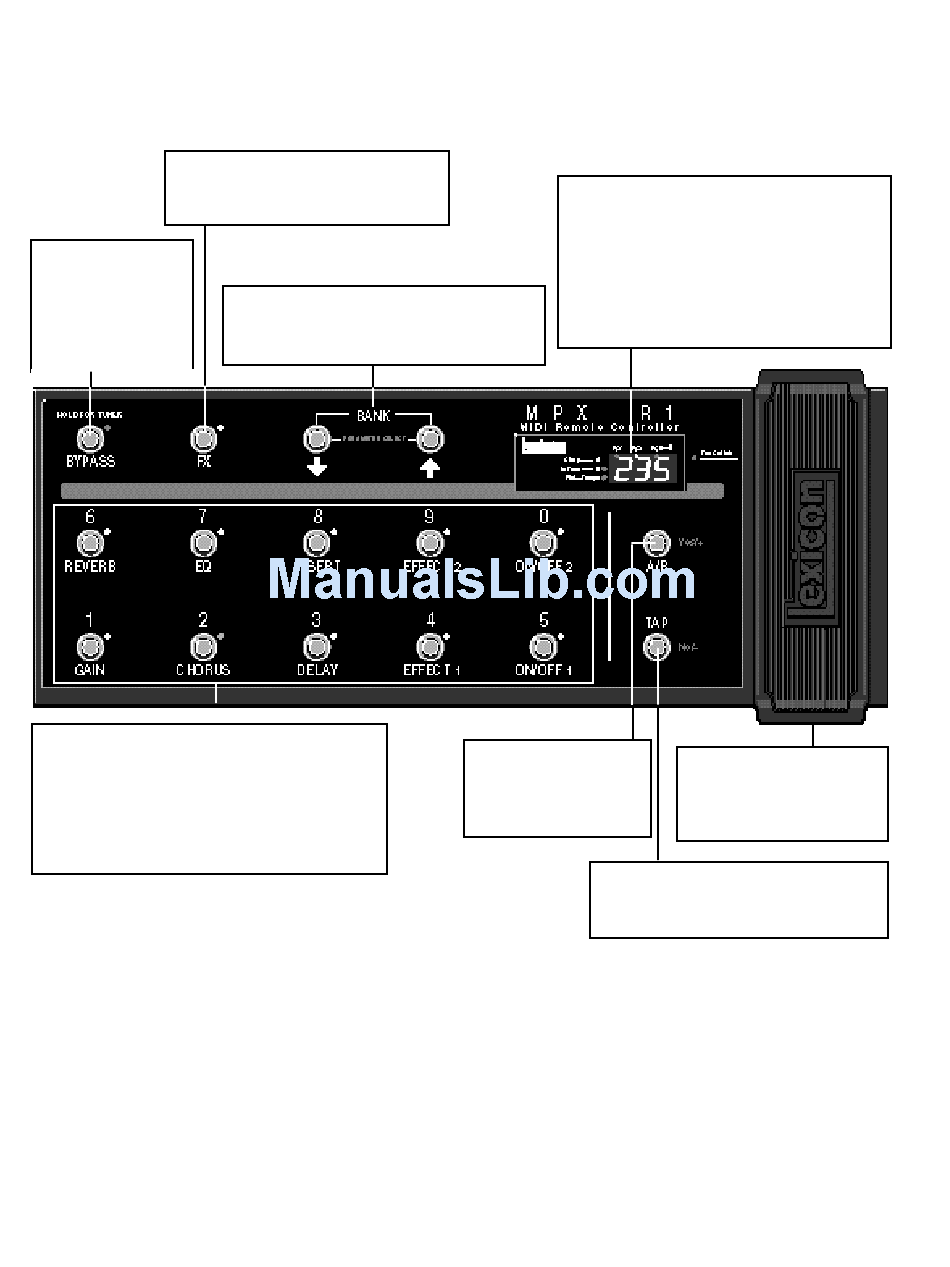

The Front Panel

FX
Toggles between Program and FX Modes.
LED off indicates Program Mode is active.
LED on indicates FX Mode is active.
Bypass
Assignable switch sends
a MIDI Controller value
BYPASS ON=127
BYPASS OFF=0
When held, activates the
MPX G2 Tuner.
Switches (0-9)
Press to complete a Program Change message which
consists of the current Bank number and the switch
number (0-9). In FX mode, switches can be pro-
grammed to transmit any MIDI Controller, Clock com-
mands, Relay settings or MIDI Program Change.
Switches 0-9 are used for entering Program Change
selections in Direct Access Mode.
1-2
Bank/Parameter Select
Buttons increment and decrement program banks
or select adjustable parameters for editing. Press-
ing and holding either button activates fast scrolling.
Display
FS1, FS2 and FS3 LEDs light to indicate state of
external foot switches.
3-Digit Display indicates ID number of currently
loaded program.
Tempo LED flashes in time with current tempo rate
when Tap is active.
A/B LEDs light to indicate A/B function is active.
A/B
Assignable switch, when
used with the MPX 1, acti-
vates a variable glide be-
tween patched parameters.
Tap
When Tempo LED is flashing, sets tempo.
(Press two or more times in rhythm to establish
tempo rate.)
Lexicon
Programmable Pedal
Operates as an assignable MIDI
Continuous Controller. Toe
Switch allows patched effects to
be turned on and off.
