Lexicon MPX R1 - V2 REV User Manual page 24

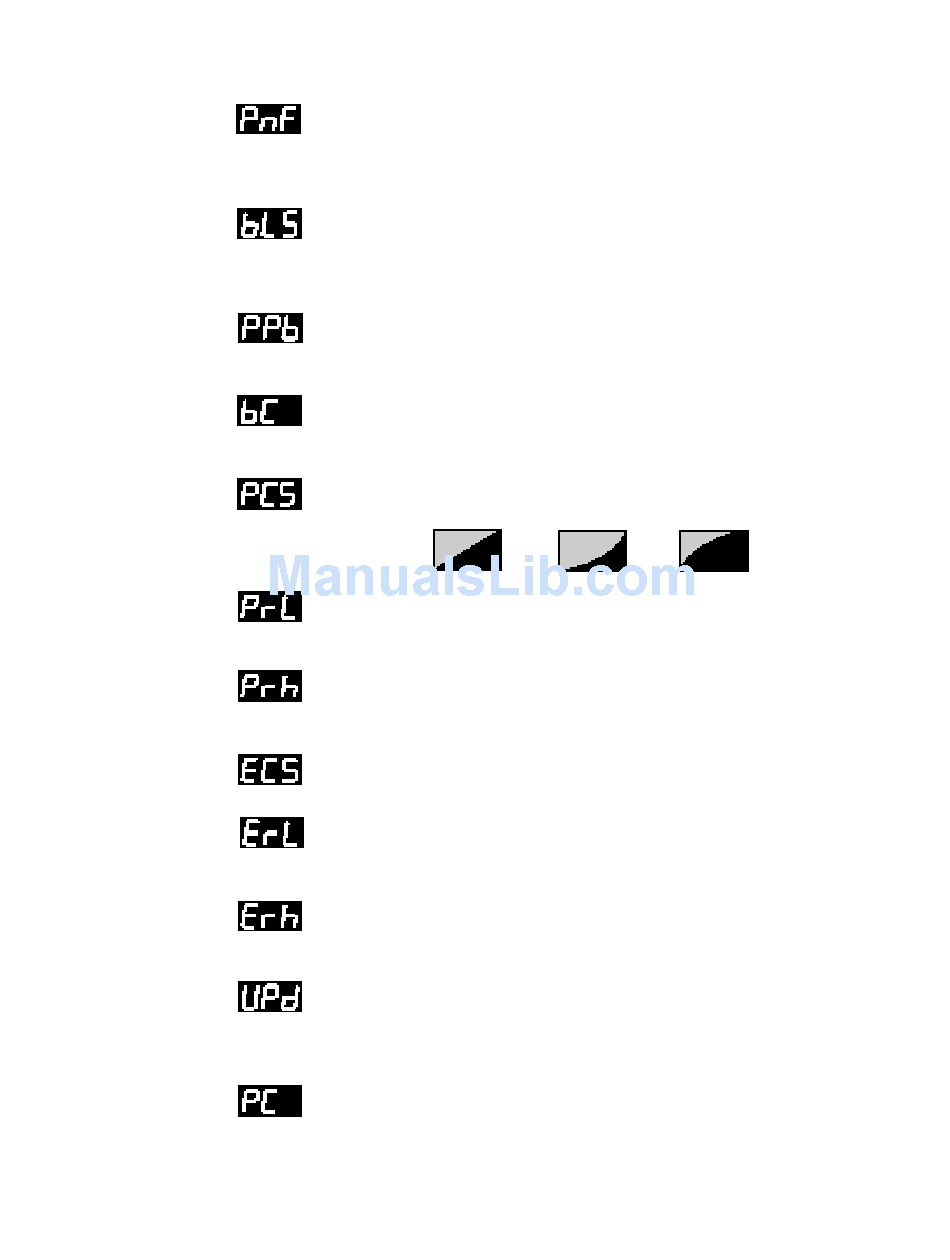

Program Number Format Select
11
Allows selection of one of two numbering systems: 0-127 (0) or 1-128 (1) for
program numbering. This is a display change only — In MIDI terms, the remote
will always send 0-127 values.
Bank Limit Select
12
When the MPX R1 is not connected to an MPX 1 (which forces 25 banks), a
maximum bank number can be selected here to limit the total number of
accessible banks. The available range is 0-99.
Programs Per Bank
13
Specifies the number of programs in each bank (and thereby tells the MPX R1
when to send a bank change message). The available range is 1-128.
Bank Change
14
Allows selection of the MIDI Controller number to be used as the transmitted
Bank Select message, 0, 32 or 032.
Pedal Curve Select
15
Allows selection of a pedal curve. The available settings are 1-3.
Pedal Range Limit Low
16
Sets the controller value (0-127) transmitted when the pedal is in its lowest
position.
Pedal Range Limit High
17
Sets the controller value (0-127) transmitted when the pedal is in its highest
position.
External Pedal Curve Select
18
Selects a pedal curve (1-3).
External Pedal Range Limit Low
19
Sets the controller value (0-127) transmitted when the pedal is in its lowest
position.
External Pedal Range Limit High
20
Sets the controller value (0-127) transmitted when the pedal is in its highest
position. The default setting is 127.
Pedal Update Mode
21
When set to On, both the Internal and External pedals will update the current
pedal controller value immediately. When pedal update is set to Off, the pedal
controller value will only be updated when the pedal is moved.
Internal Pedal Calibration
22
Calibrates the pedal when Yes/+ is selected. Moving the pedal through its entire
range of travel will re-calibrate the range of the pedal (i.e. 0 for minimum value,
127 for maximum value).
2
1
Default:
Default:
Default:
Default:
Default:
3
Default:
Default:
Default:
Default:
Default:
Default:
Default:
Editing
1
30
100
32
1
0
127
1
0
127
On
Off
5-3
