Edit Mode Fx Parameters - Lexicon MPX R1 - V2 REV User Manual

Note: When the relay state is assigned to a selected button the relay will
automatically change to reflect the current state of the button. Relays with dual
states will default to the first state.
Note: In this mode, pressing any button will transmit the currently assigned
controller. On exiting this mode, all switches will revert to the state they were in
before Edit Mode was entered.
Each of the following buttons can be assigned to the following MIDI controllers:
1-31, 33-119, A/B (SysEx for MPX 1 or MPX G2), Toe (SysEx for MPX G2 only),
tip, ring, CH1, CH2, CH3, CH4, Start/Stop, Start, Stop, Continue, Reset, Off.

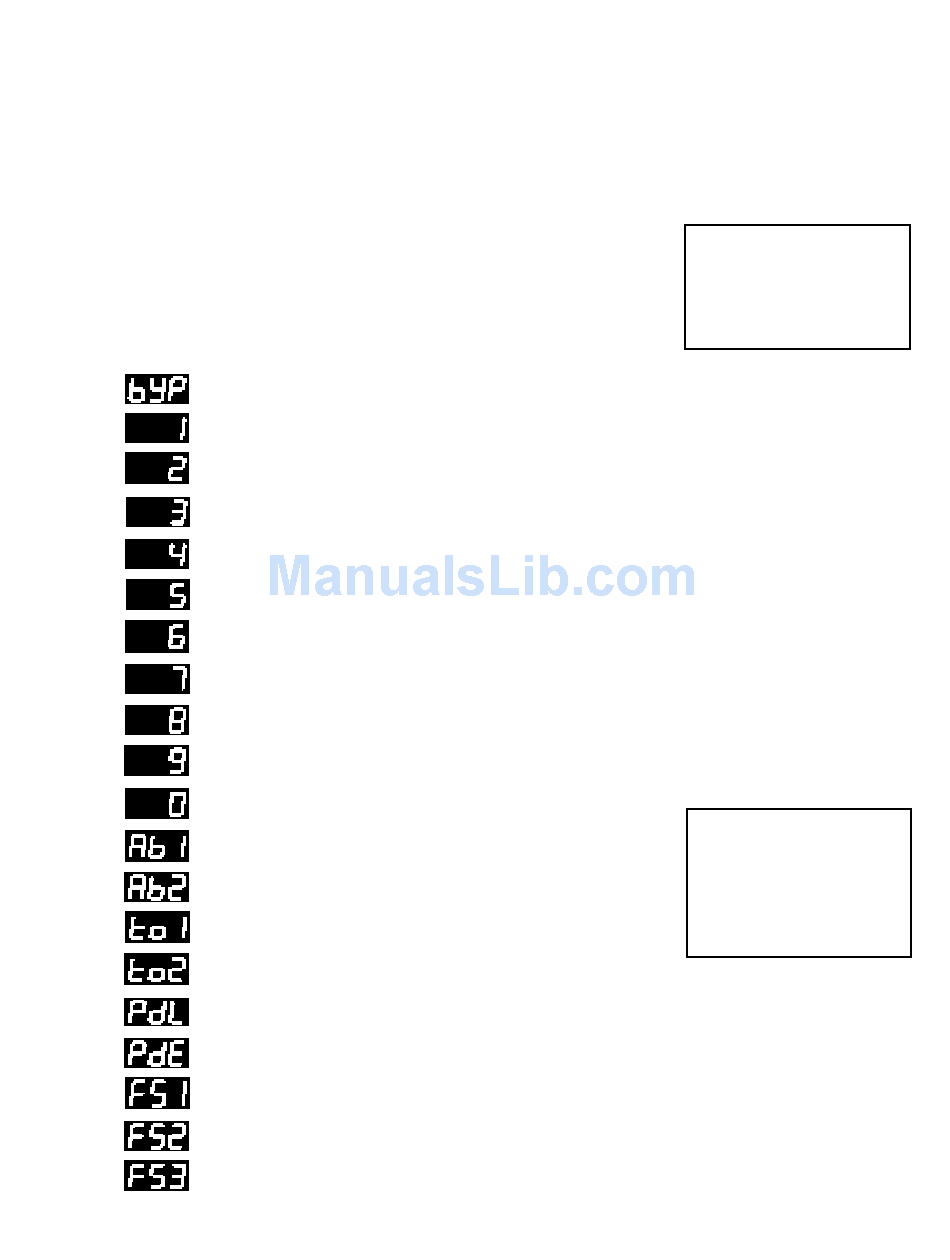

Display Parameter
1 Bypass
2 1/Gain
3 2/Chorus
4 3/Delay
5 4/Effect 1
6 5/On/Off 1
7 6/Reverb
8 7/EQ
9 8/Insert
10 9/Effect 2
11 0/On/Off 2
12 A/B 1
13 A/B 2
14 Toe 1
15 Toe 2
16 Internal Pedal
17 External Pedal
18 External Footswitch 1
19 External Footswitch 2
20 External Footswitch 3
MPX G2 Default MPX 1 Default
CC50 CC84
CC40 CC77
CC41 CC78
CC42 CC76
CC43 CH1
CH1 CH2
CC44 CC75
CC45 CC73
CC46 CC70
CC47 CH3
CH2 CH4
SysEx SysEx
Off Off
SysEx CC83
Off Off
CC48 CC4
CC49 CC11
CC51 CC80
CC52 CC81
CC53 CC82
Edit Mode
FX Parameters
NOTE: The Tap button is not
assignable. It is hard-wired to
CC119 when used with the
MPX G2. When used with the
MPX 1, it generates a SysEx
message.
NOTE: The A/B button can be
assigned to simultaneously
output two separate control-
lers. (It is designed to simulta-
neously toggle the A/B state of
the MPX 1 or MPX G2 and the
relay for amplifier switching.)
