Relay State Programming - Lexicon MPX R1 - V2 REV User Manual

You can also control the MPX R1 4-state relay in FX Mode.
Storing a Relay State
The relay state can be stored with each MIDI Program Change message. To do
this, select the desired MIDI program on the MPX R1 and press the MPX R1 FX
button to enter FX mode.

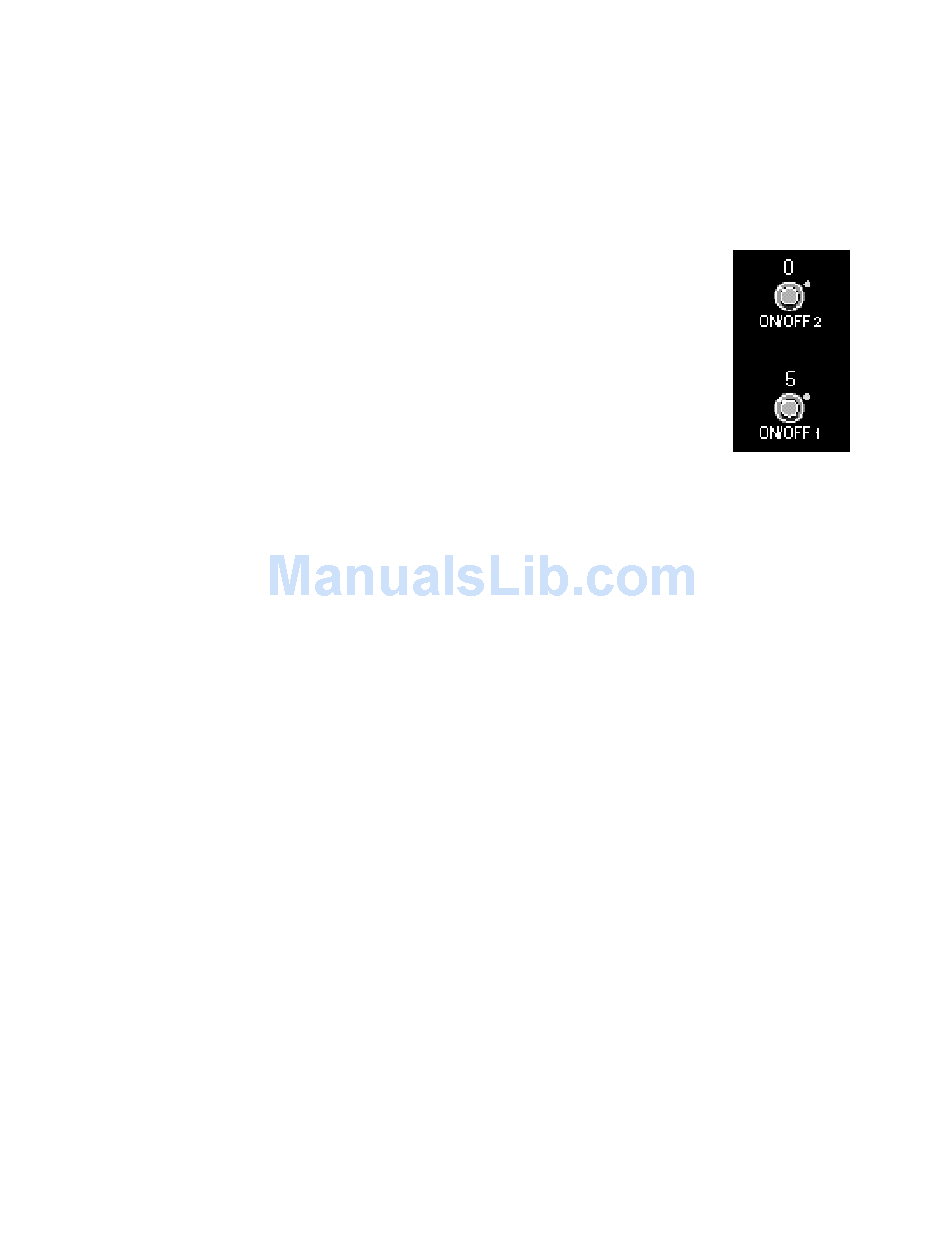

The relay states are assigned to the following buttons as factory defaults.
ON/OFF 1 = Relay state 1
ON/OFF 2 = Relay state 2
Additional relay states can be assigned and edited in Edit FX Mode.
Press the button assigned to the desired relay state and hold it down for two
seconds. The relay state (for example, CH1) will flash once on the MPX R1
display to indicate that it has been stored with the program.
Clearing a Relay State
To clear a relay state, press and hold any button not assigned to a relay channel.
Hold this button down for two seconds until – – – is flashed three times on the
display to indicate the relay state for that program has been removed.
Removing Relay Settings for All Programs
To reset all of the relay settings to Not Assigned, go to Edit: Program Mode and
select the Relay Initialize parameter (rEi). Press Yes/+ to reset all of the relays.
Note that the relays will stay in their last state (based on the last physical button
press) until a button is pressed to assign a different state.
