MPX R1 Version 2 User Guide

Direct Access Mode

FX Mode

4-2
You can also enter program numbers directly in Direct Access Mode. Press and
hold the FX button until its LED begins blinking. The display will flash d-A to
indicate that Direct Access Mode is active. Now you can select programs by
directly entering their program numbers. For example, to load MPX 1 Program
135, press 1, then 3, then 5 on the R1.
In this mode, the BANK buttons increment and decrement the program numbers
in consecutive steps.
Press the FX button once to exit to FX Mode, twice to exit to Program Mode.
FX Mode allows you to use the MPX R1 buttons numbered 0-9 as MIDI
Controllers. To access FX Mode, press the MPX R1 FX button. The LED next
to the button will light to indicate you are in FX Mode.
Buttons 0-9 can be assigned to any of the following MIDI controllers:
Continuous Controllers 1-31
Continuous Controllers 33-119
A-B
Toe
Tip
Ring
For additional information on all of these sources, refer to Chapter 5 Editing: FX
Parameters.
In FX Mode, transmitted values correspond to the state of the switch and are
indicated by the switch LEDs as follows:
Green = 127 transmitted
Off = 0 transmitted
Note that when used as a stand-alone controller, on and off are the only LED
indicators available. Note also that the LEDs for all of the buttons will remain in
their last toggled states.

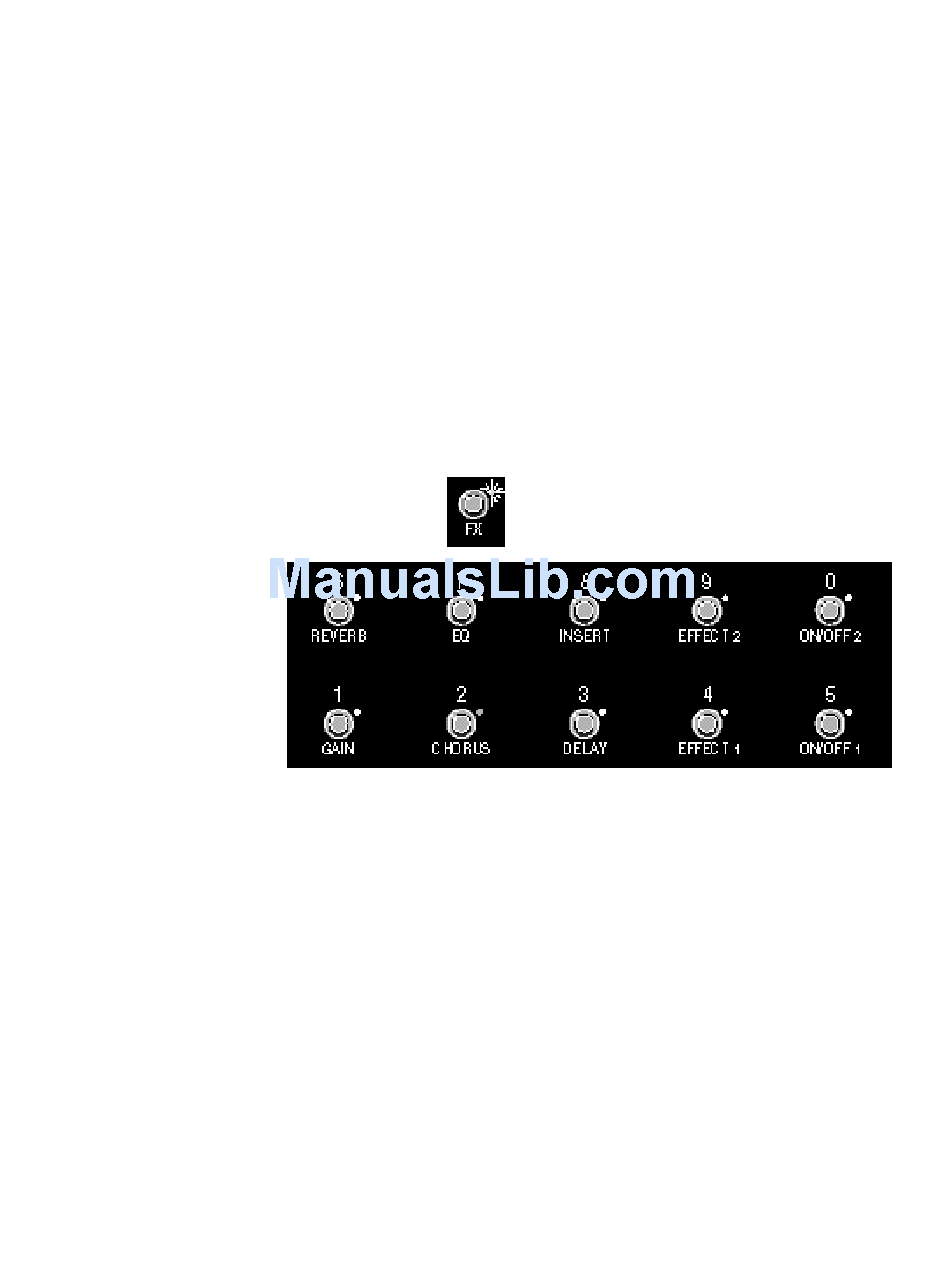

The FX LED is lit when FX mode
is active.
CH1-4
Start/Stop
Start
Stop
Continue
Reset
