Lexicon 480L Owner's Manual

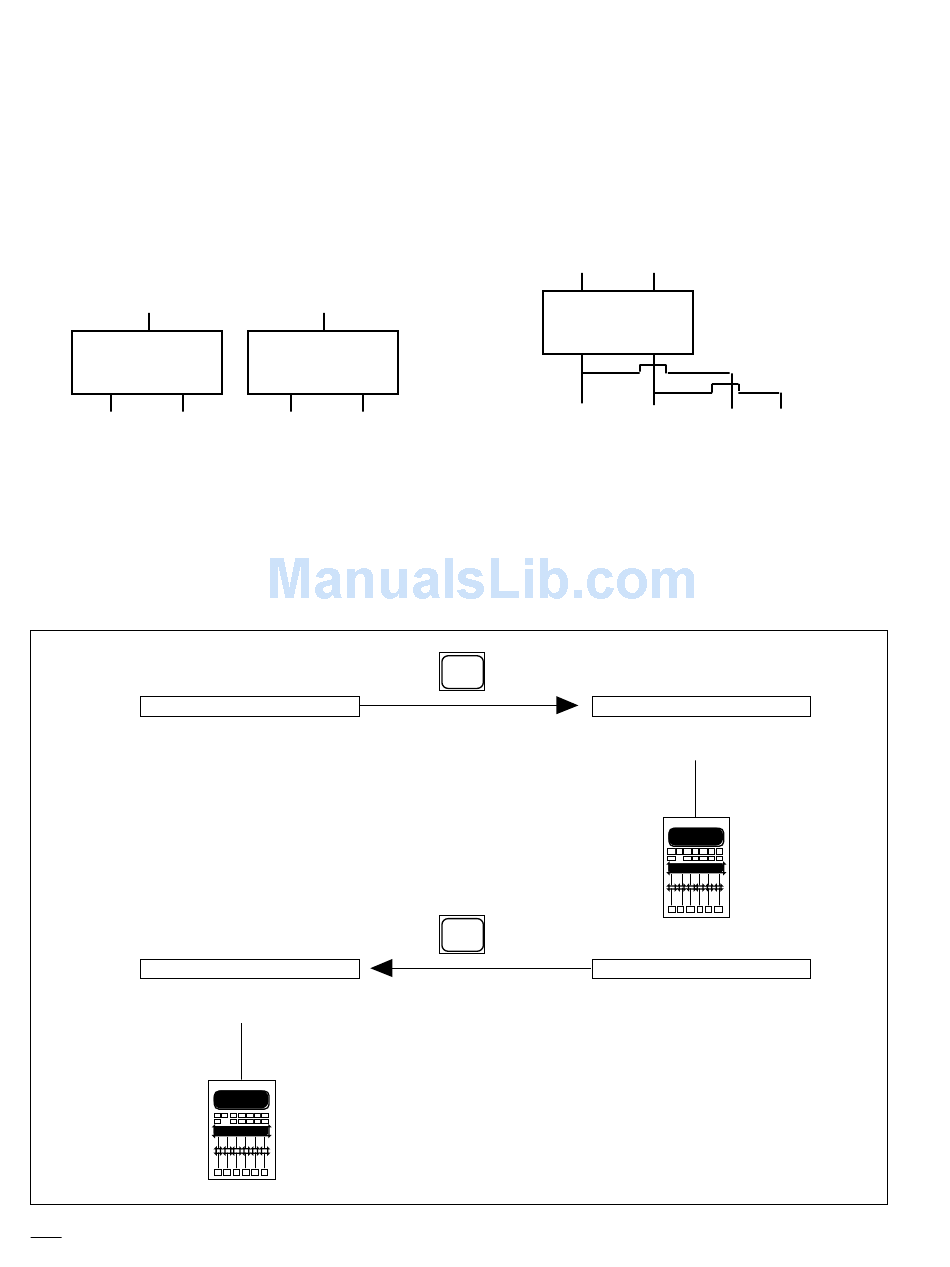

The Mono Split Configuration
The Mono Split configuration uses the 480L as two
independent signal processors. Each program has an
independent mono input and an independent stereo
output. The Left input always goes to the first program
(Machine A), and the Right input always goes to the
second program (Machine B). The Main Outputs pro-
duce stereo output from Machine A, and the Aux
Outputs produce stereo output from Machine B.
L
Machine
A
L R
Main Outputs
Selecting a Machine
Once a configuration has been selected, press CTRL
to exit Control Mode. Now, pressing MACH switches
LARC control from one machine to the other.
MACHINE A
MACHINE A
2-6
Inputs
R
Machine
B
L R
Aux Outputs
HSP-1
HSP-1
The Single Configuration
A few programs (like Stereo Sampler) require all of the
480L's processing power, and cannot be run at the
same time as other programs. The Single configuration
is provided for these programs. In the Single configu-
ration, the outputs of the program are available at both
the Main and Aux Outputs.
L
Main Outputs
Press MACH
Press MACH
Inputs
L R
Machine
A
R
L
Aux Outputs
MACHINE B
MACHINE B
R
HSP-2
HSP-2
