Installation and Operation Manual
*Smoke control area approved when burning wood
(See P14 for special requirements for burning wood in a smoke control zone.)
Tested to EN 13240
THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED,
REGISTERED ENGINEER.
A "Declaration of Completion" Certificate must be obtained for the installation and retained by the
end user. Failure to comply with these requirements may void the warranty.

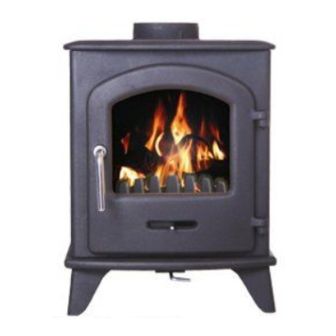

Serrano 3, 5* & 7*
Multi Fuel Stoves
TJ09C
© 2007-2008 Broseley Fires Ltd
Advertisement
Table of Contents
Related Manuals for Broseley Serrano 5
Summary of Contents for Broseley Serrano 5
- Page 1 Installation and Operation Manual Serrano 3, 5* & 7* *Smoke control area approved when burning wood (See P14 for special requirements for burning wood in a smoke control zone.) Multi Fuel Stoves Tested to EN 13240 TJ09C THIS APPLIANCE MUST BE INSTALLED AND COMMISSIONED BY A FULLY QUALIFIED, REGISTERED ENGINEER.
- Page 2 This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of installation then please seek specialist guidance and use appropriate protective equipment. Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury. © 2007-2008 Broseley Fires Ltd...
- Page 3 Please note that it is a requirement under Broseley Fires Ltd’s warranty system that the installation of the stove is carried out by a Competent Person registered with a Government approved Competent Persons Scheme.
- Page 4 Building Regulations Approved Document J. If there is no existing chimney then either a prefabricated block chimney in accordance with Building Regulations Approved Document J or a twin walled insulated stainless steel © 2007-2008 Broseley Fires Ltd...
- Page 5 (150 mm) flue. This requires an adapter to be connected to the spigot. Your installer can supply this. If you obtain this independently, make sure the adapter is compatible with the flue pipe as not all manufacturers pipes are cross compatible. A 5” (125mm) © 2007-2008 Broseley Fires Ltd...
-
Page 6: Combustion Air Supply
A separate top baffle plate is supported by the left, right and rear firebricks. There is also the fire grate that sits on the base of the stove. If these parts are removed re-install these parts in use the instructions below to refit the firebricks: © 2007-2008 Broseley Fires Ltd... - Page 7 Push to the top of stove with one again hold up baffle with one hand and hand while placing right side brick into position locate Rear brick so it hooks over both sides at the rear. © 2007-2008 Broseley Fires Ltd...
- Page 8 BS 6539 in the presence of children, aged and/or infirm persons. Advise the user not to fit an extractor fan in the same room as the stove, as this can cause the stove to emit fumes into the room. © 2007-2008 Broseley Fires Ltd...
-
Page 9: Operation Of Stove
The primary air intake is used on initial firing of the stove or when burning coal etc. Please see the BURNING SOLID FUEL section on page 13 for a more in depth description. © 2007-2008 Broseley Fires Ltd... - Page 10 This particular design also allows the air to be released on top of the grate which is ideal when burning wood products. Please see the paragraph BURNING WOOD LOGS on page 14. © 2007-2008 Broseley Fires Ltd...
-
Page 11: Air Controls
In the morning, open the air controls fully to re-establish the fire. Then de-ash and refuel in the normal way adjusting the air controls accordingly. © 2007-2008 Broseley Fires Ltd... - Page 12 Only authorised smokeless fuels may be used in smoke control areas. Under NO circumstances burn ‘petroleum coke’ as it will burn out the internal grate and baffle plates in a very short period of time and may damage the stove beyond repair. © 2007-2008 Broseley Fires Ltd...
-
Page 13: Burning Solid Fuel
Once the fire is running, you may find that opening the secondary air a little, will help to keep the glass clean. This is good practice but remember to control the fire using the primary air. © 2007-2008 Broseley Fires Ltd... -
Page 14: Burning Wood Logs
If you do not do this, you may buckle the baffle plate or in the extreme, burn it out. © 2007-2008 Broseley Fires Ltd... -
Page 15: Warning Note
After a chimney fire, the chimney should be carefully examined for any damage. Expert advice should be sought if necessary © 2007-2008 Broseley Fires Ltd... -
Page 16: Chimney Cleaning
The baffle plate should be checked and cleaned if necessary at least once a month during the heating season. © 2007-2008 Broseley Fires Ltd... -
Page 17: Troubleshooting
The fibre rope on doors and glass has worn out. Replace. Spare Parts Details of spare parts are available from your local stockist from which you purchased this appliance or by contacting Broseley Fires. Contact Details: Broseley Fires Knights Way... -
Page 18: Annual Service Record
COMPANY ADDRESS: POSTCODE: 5TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 6TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: © 2007-2008 Broseley Fires Ltd... - Page 19 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
