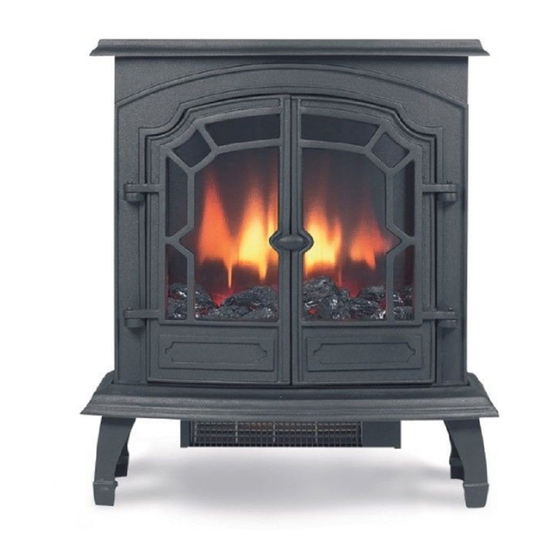

Installation & Operating Instructions
Model(s): Lincoln, Canterbury & Stamford
Conventionally Flued Natural Gas Stoves
PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER
Chimney closure plates are not supplied
Please note gas installations MUST only be carried out by installers who
are Gas Safe registered.
200704_3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley Lincoln
Summary of Contents for Broseley Lincoln

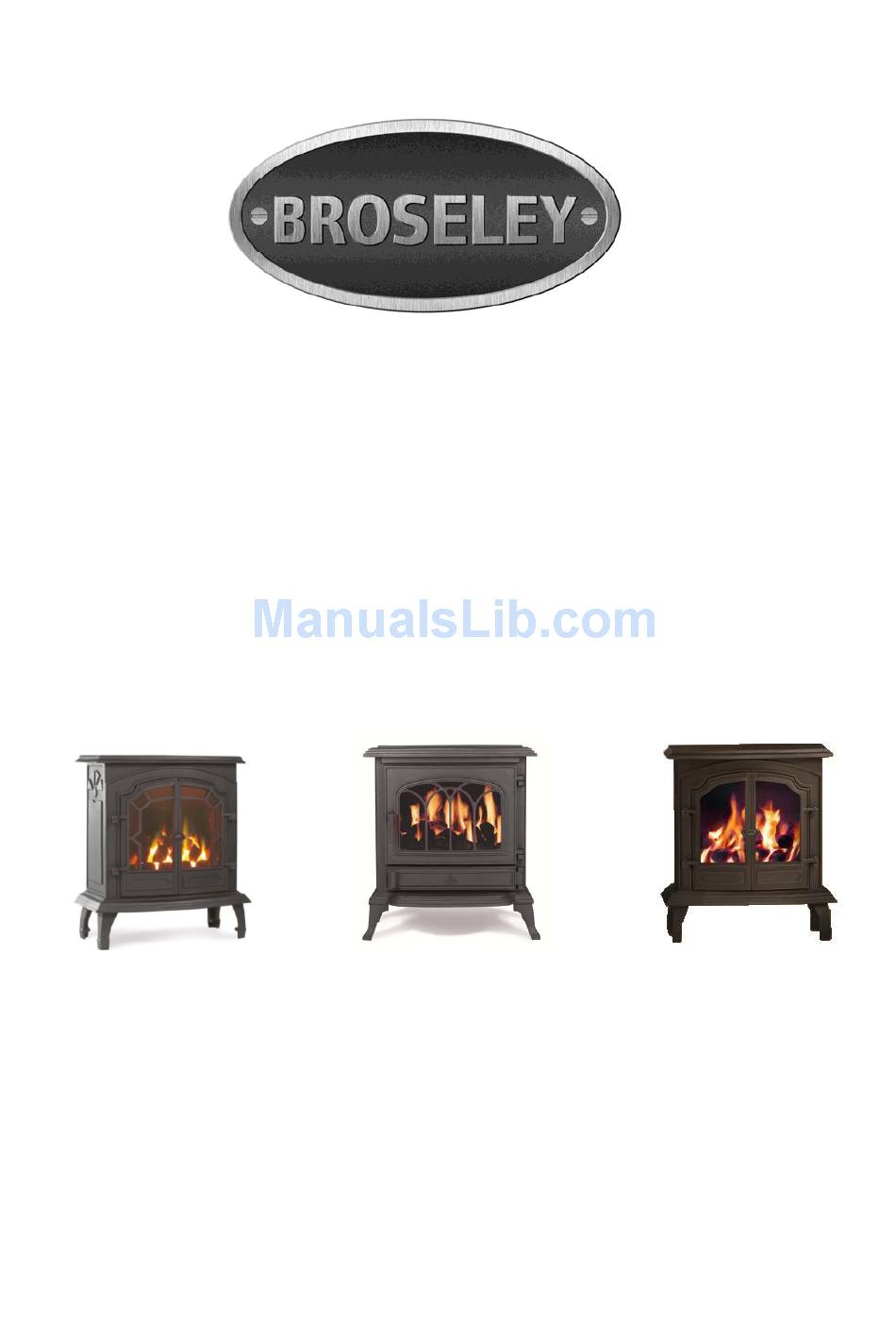

- Page 1 Installation & Operating Instructions Model(s): Lincoln, Canterbury & Stamford Conventionally Flued Natural Gas Stoves PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER Chimney closure plates are not supplied Please note gas installations MUST only be carried out by installers who are Gas Safe registered.
-
Page 2: Table Of Contents
Contents Introduction Packing List Specification Dimensions Hearth Requirements Chimney Requirements Assembly Burner Installation Connecting the TTB Device and Fitting the Reflective Rear Plate Positioning the Coals Gas Connection & Pressure Testing Spillage Testing Operating the Stove Curing the Paint Trouble-shooting Servicing Instructions Commissioning Form Guarantee... -
Page 3: Introduction
Introduction THANK YOU FOR PURCHASING A BROSELEY GAS FIRED STOVE Broseley Fires Ltd, a family run company, was founded as an appliance and design development company in 1975. Since then we have built up an enviable reputation for the quality, reliability and fuel efficiency of our stoves. -
Page 4: Specification
Injector Size Spigot diameter 125mm (5”) Country of destination GB, IE Efficiency Class 1 Please note this product is designed to only use natural gas G20. Dimensions Lincoln – Weight 64Kg Canterbury – Weight 66Kg All dimensions are in millimetres. 200704_3... -
Page 5: Hearth Requirements
Hearth Requirements The appliance needs to be located onto a solid non-combustible hearth with a minimum thickness of 12mm. The hearth must be capable of withstanding the weight of the appliance. To ensure correct combustion the following minimum clearances must be adhered to: Inglenook Installation Freestanding Installation... -
Page 6: Chimney Requirements
Chimney Requirements Lintel Dimensions A = 250mm Min. B= 50mm Min. C = 50mm Min. D = 25mm Min. Void Closure Plate Figure 1 Class 1 Chimney Example Above is a typical example of an installation with a class 1 flue, please note we do not supply chimney closure plates. -
Page 7: Burner Installation
1) Remove the stove body from its packaging and lay it down on its back. 2) Attach the four legs using the supplied bolts. 3) Stand the stove up on its legs. On the Lincoln & Stamford remove the lid by un-doing the four fixing bolts. For the Canterbury simply open the main door. -
Page 8: Connecting The Ttb Device And Fitting The Reflective Rear Plate
Assembly - Fitting TTB sensor With the burner installed, thread the wires running from the TTB device (mounted on the rear panel of the stove) down to the 6.3mm spade receptacle connectors on the thermocouple interrupter (Located at the rear of the Gas top assembly), These wires can be installed either way round on the terminals by loosening the thermocouple connection, after the spades have been connected the thermocouple nut needs to be tightened. -
Page 9: Positioning The Coals
Before any ceramics are placed in position ensure that the pilot is not obstructed and the burner is operating correctly. Broseley Fires Ltd accepts no responsibility for any injury sustained whilst handling hot ceramics. Ceramics which are found to be placed other than in accordance with these instructions will result in a charge being made following any service callout. - Page 10 Assembly - Positioning the Coals Stage Three Position a coal on each of the platforms on the centre coal. Stage Four Place a coal on the end of either side resting between the rear matrix and the front matrix. Next to this place three more coals across the gap between the front row of coal and the rear matrix in the centre.
- Page 11 Assembly – Decorative Log Retainer (Lincoln & Stamford Only) With the doors of the stove fully open, Using the recesses supplied forward of the glass panel locate the castellation plate taking care not to damage/scratch the glass. Slide the plate towards the bottom of the unit and locate in the recess at the bottom of the glass.
-
Page 12: Gas Connection & Pressure Testing
Assembly - Gas Connection & Pressure Testing A minimum 15mm-diameter gas supply pipe must be used to within 1 metre of the installation with the final connection to the stove to be completed with the suitable 8mm semi-rigid gas pipe. The 8mm pipe should be connected to the inlet of the gas valve using the nut and 8mm olive provided. -
Page 13: Spillage Testing
Spillage Testing A Spillage Test MUST be made before the installed fire is left with the customer. Carry out the test by first closing all doors and windows in the room containing the fire. Insure that the fire is burning at full rate for a minimum of 10-15 minutes. Using a lighted smoke match, run it along under the rear edge of the stove. -
Page 14: Operating The Stove
Operating the Stove It is important to read these instructions thoroughly before lighting the stove. The gas stove operates with a traditional permanent pilot light. The knob for ignition and power control are located on the lower right hand side of the stove, the indicator in the plate shows the knob position (Marked on knob) The pilot light is located at the left corner of the coal matrix. -
Page 15: Curing The Paint
Curing the Paint It is important to note that upon initial lighting of the stove you will notice a strong odour, this is the paint curing and is completely normal. Most high temperature paints operate in the same way. They use a resin which dries at room temperature and a silicon resin which cures at high temperatures. -
Page 16: Trouble-Shooting
Trouble-shooting The gas pilot will not ignite or stay lit • Ensure the gas is turned on at the appliance and the meter / cylinder. • Hold the pilot gas button for at lest 20 seconds once the pilot is alight to ensure the operation of the safety thermocouple valve. -
Page 17: Servicing Instructions
Servicing Instructions Servicing should be carried out annually by a qualified installation engineer when the stove is cold and the gas supply is turned off at the isolation tap. The following points should be checked. • Remove the coals and clean any dust and debris from the top of the burner unit. -
Page 18: Commissioning Form
Commissioning Form THIS SECTION MUST BE COMPLETED AND SIGNED BY THE INSTALLATION ENGINEER PLEASE LEAVE WITH THE CUSTOMER AND THE APPLIANCE. Size of Governor setting: (i.e.) Natural Gas 20MBAR. LPG 37MBAR) Length and size of gas supply: _______________ Meter pressure Fire only on: ________________ All Other appliances on: __________________ Burner pressure Fire only on: _______________ All Other appliances on: __________________... -
Page 19: Guarantee
The rights given in this guarantee are limited to the UK mainland and are in addition to any to which you may have a statutory entitlement. Please retain your purchase receipt. We will need to see this in the event of a claim under warranty. Broseley Fires Ltd Knights Way Battlefield Enterprise Park Shrewsbury...
