Note
In the Nokia 100i, you cannot use two PMC four-port 10/100 Ethernet
network cards at the same time. However, you can use one PMC four-
port 10/100 Ethernet NIC in combination with any other NIC that the
Nokia 100i supports.
For connectors and cable information for the four-port 10/100 Ethernet NIC,
see
"Ethernet Management Ports"
Caution
Cables that connect to the Ethernet NIC must be IEEE 802.3
compliant to prevent potential data loss.

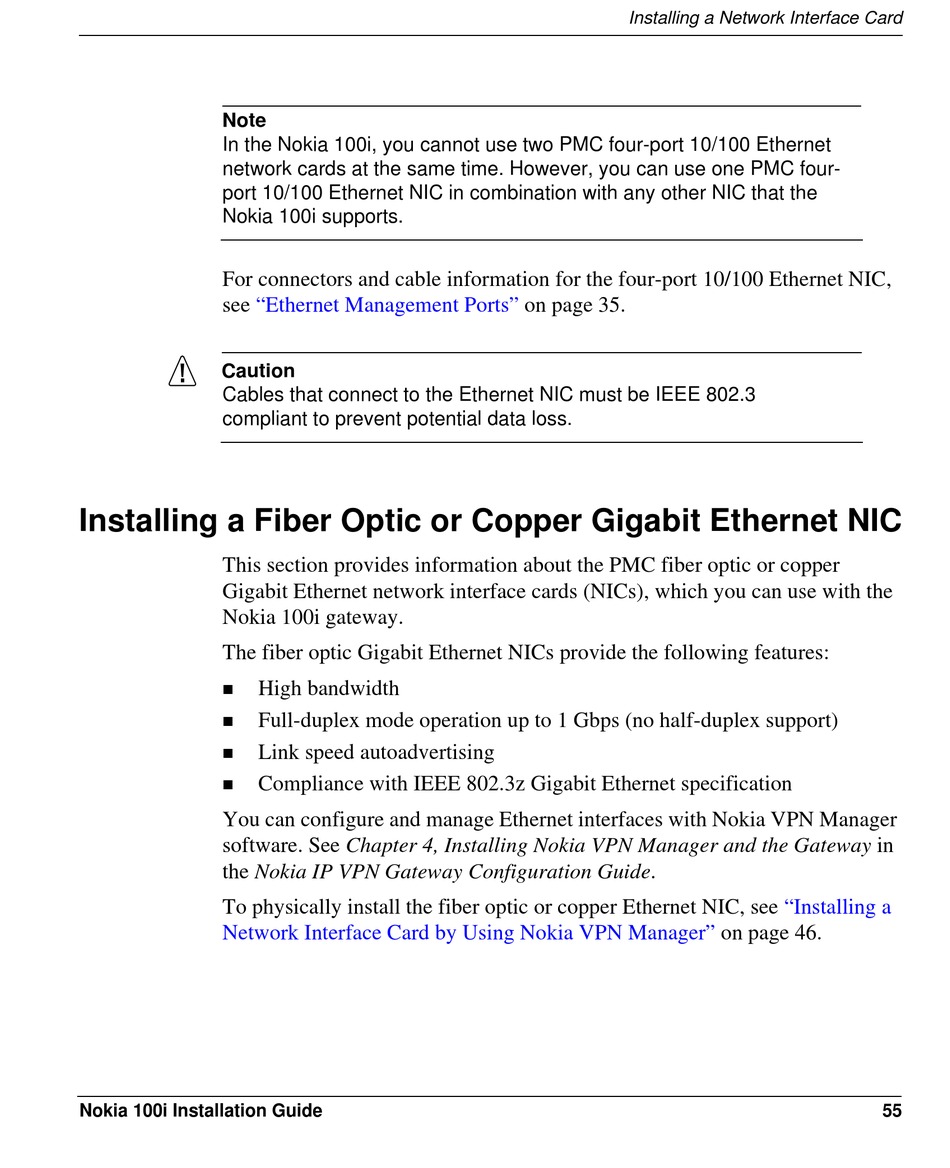

Installing a Fiber Optic or Copper Gigabit Ethernet NIC

This section provides information about the PMC fiber optic or copper
Gigabit Ethernet network interface cards (NICs), which you can use with the
Nokia 100i gateway.
The fiber optic Gigabit Ethernet NICs provide the following features:
!
!
!
!
You can configure and manage Ethernet interfaces with Nokia VPN Manager
software. See Chapter 4, Installing Nokia VPN Manager and the Gateway in
the Nokia IP VPN Gateway Configuration Guide.
To physically install the fiber optic or copper Ethernet NIC, see
Network Interface Card by Using Nokia VPN Manager"
Nokia 100i Installation Guide
High bandwidth
Full-duplex mode operation up to 1 Gbps (no half-duplex support)
Link speed autoadvertising
Compliance with IEEE 802.3z Gigabit Ethernet specification
Installing a Network Interface Card
on page 35.
"Installing a
on page 46.
55
