Lexicon Studio Core2 User Guide

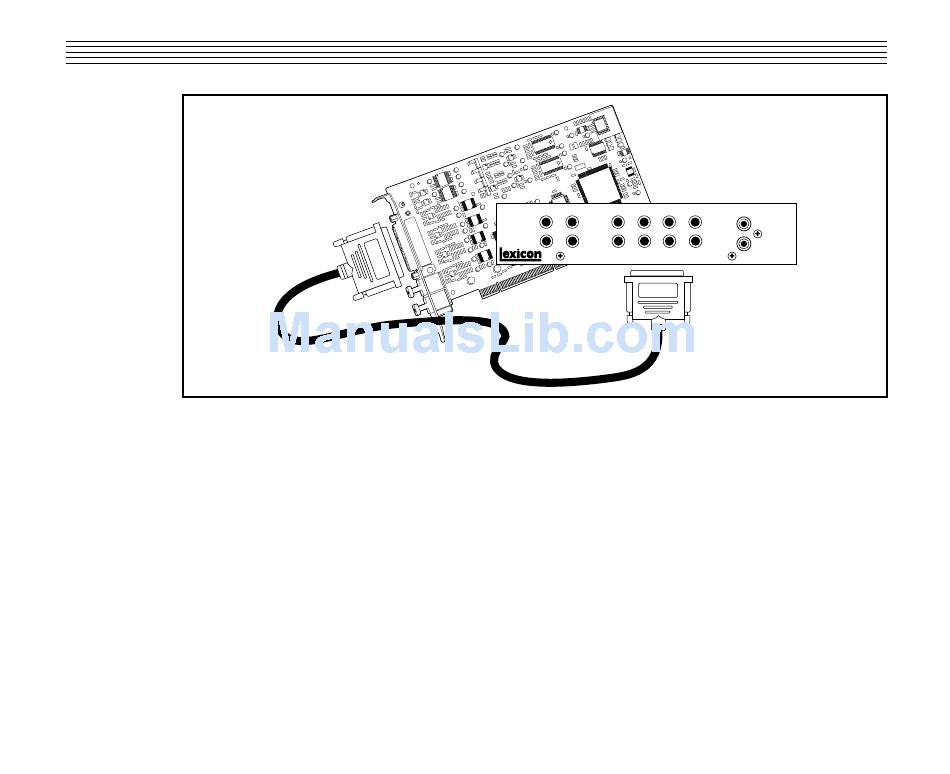

Connecting the Core2 Card to the connector box.
Cables/Connections
1. Use only the proprietary Lexicon cable (provided) to connect the Core2 card to the Lexicon
Core2 connector box.
2. With the computer powered down, attach the cable between the connector on the back of the
Core2 card and the Computer port on the connector box.
3. Connect your external audio devices to the connector box, or to the optical connectors on the
Core2 card itself.
The connector box houses four unbalanced 1/4" analog inputs and eight unbalanced 1/4" analog
outputs, as well as a coaxial S/PDIF input and output. The coaxial input can also be used as a
Word Clock input. (See Chapter 3.)
The back plate of the Core2 card carries the optical connectors. These can be configured (via
the Control Panel) to accept either ADAT™ or S/PDIF formats.
The Core2 can run in a variety of modes which affect the number and type of available I/O. These
operating modes are described in detail in Chapter 3: Core2 Basics.
INPUTS OUTPUTS
1 3 1 3 5 7
2 4 2 4 6 8
Installation
S/PDIF
IN
(WORD CLOCK)
OUT
5
5
