Clock Source Tab - Lexicon CORE2 User Manual

Using the LexPanel

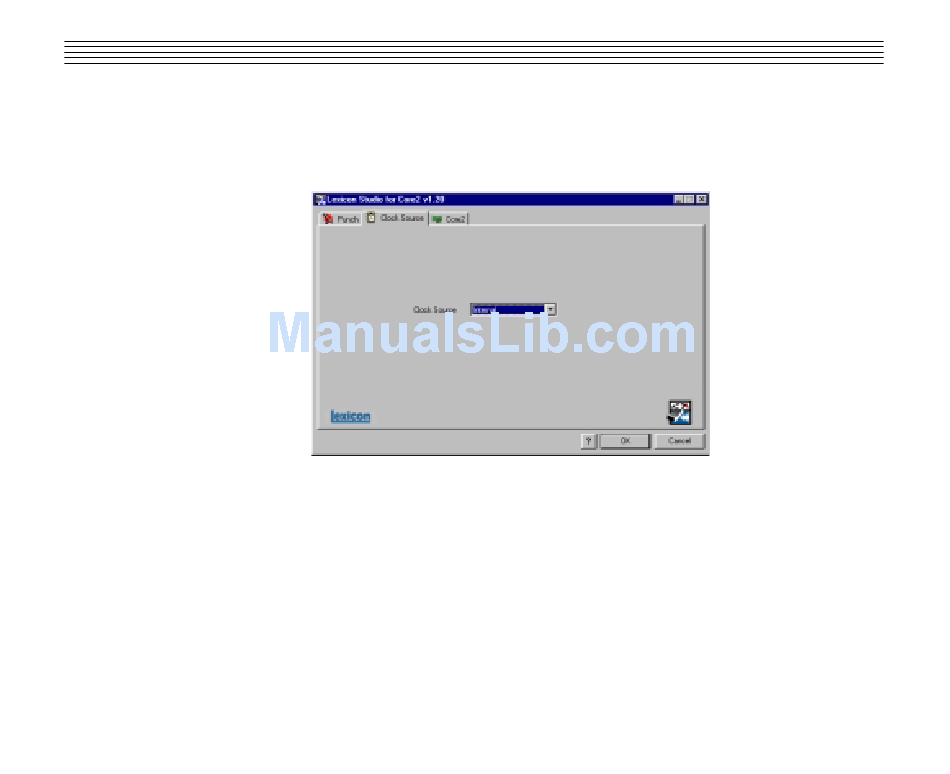

Clock Source Tab

This tab will appear if you are using the Wave Control Panel. If you are using an ASIO application,
clock source selection is made within the application.
If you are using a digital input , you must ensure that the Core2 and the external device are
synchronized. There are three ways to accomplish this:
1. Make the external device the master and the Core2 the slave, by designating the external device
as the Clock Source.
2. Make the Core2 the master by selecting Internal as the Clock Source, and setting up the external
device to synchronize to the Core2 digital output.
3. Use a Word Clock source, such as a digital mixer, as the master and synchronize both the Core2
and external devices to it. In this case, select WC RCA as the Core2 Clock Source.
Note that the coaxial input can be used as a Word Clock input. If your Word Clock source uses
a BNC connector, you must use a BNC-to-RCA adapter for this connection.
As there is no incoming clock with an analog input, use the Internal setting.
