Lexicon Studio Core2 User Guide
2. Move the desired jumper to the "out" position. (The jumper nearest the edge of the card is for
Analog Input 1.)
3. Replace the Core2 card in the computer, reboot, and launch the Lexicon Control Panel. The
corresponding LED under the Type IV logo should be off (indicating that Type IV is inactive on
this channel).

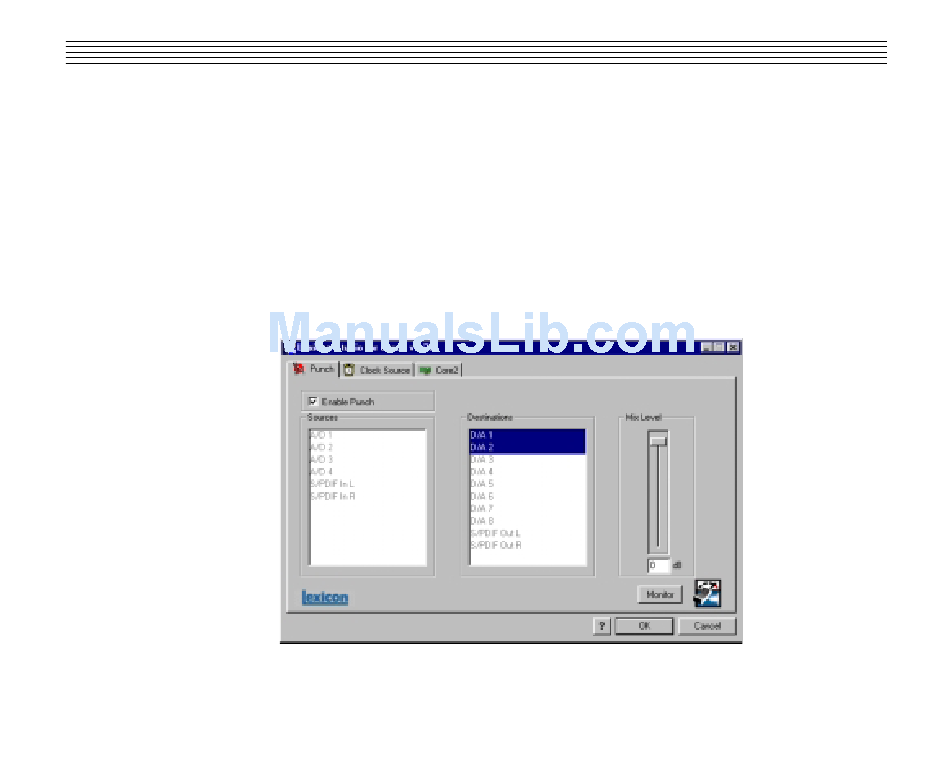

Punch Tab

This page lets you select input Sources for Punch or overdub recording and output monitor
Destinations for the sources selected for Punch or overdub recording. The Punch feature lets you
perform overdub or punch recording by directly connecting to a Lexicon Studio interface — no external
mixer is required.
All computer operating systems have a delay when applications use host processing. The delay will
vary depending on the buffer size of the audio hardware. This means that, when playing along with
previously recorded tracks, the track you are playing will sound delayed while you are performing. This
delay can be overcome by using an external mixer, or by using the Punch feature.
Using the LexPanel
