Lexicon Studio Core2 User Guide
All Core2 I/O controls are accessed via the Core2 Control Panel. The Control Panel can be accessed
by double clicking on the Lexicon Studio icon in the Taskbar or from within an ASIO application (such
as Cubase VST). The Control Panel allows you to select the number and type of active channels, the
current clock source and sample rate mode, as well as punch routing.
The method of selecting tabs for different pages will be familiar to users of Windows and other
Microsoft products. The selections are Core2, Punch, and Clock Source. Note that the Clock Source
tab will not be present when using an ASIO application.

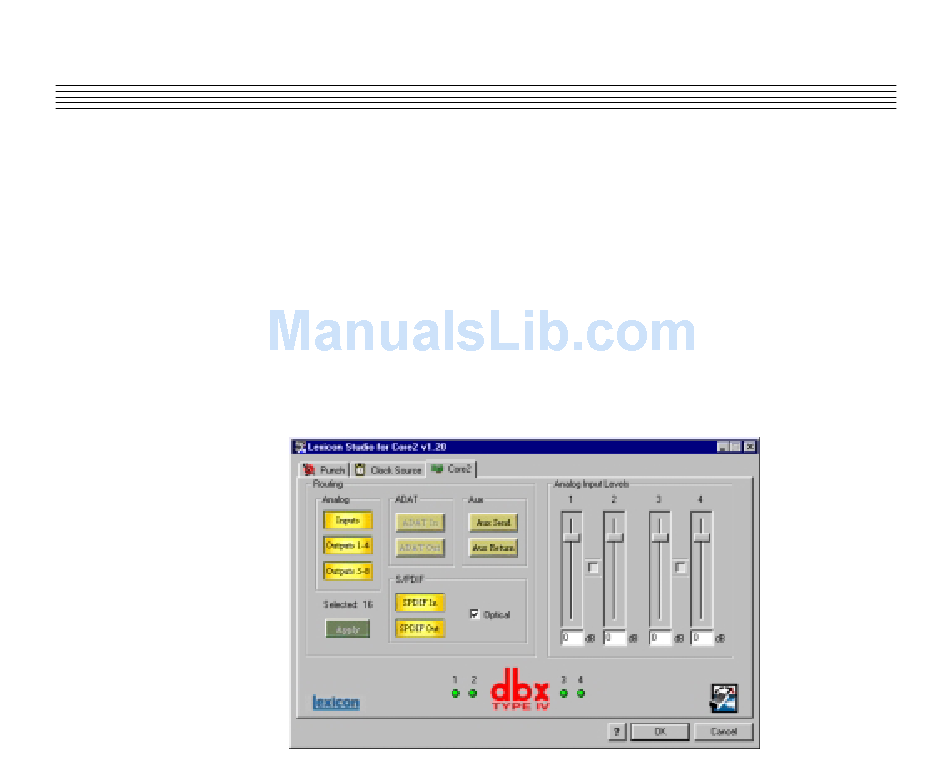

Core2 Tab

This tab lets you determine which Core2 I/O streams are active. An active stream becomes available
as a clock source, as a source/destination for Punch, and for use in the audio application.

Using the LexPanel

Using the LexPanel
